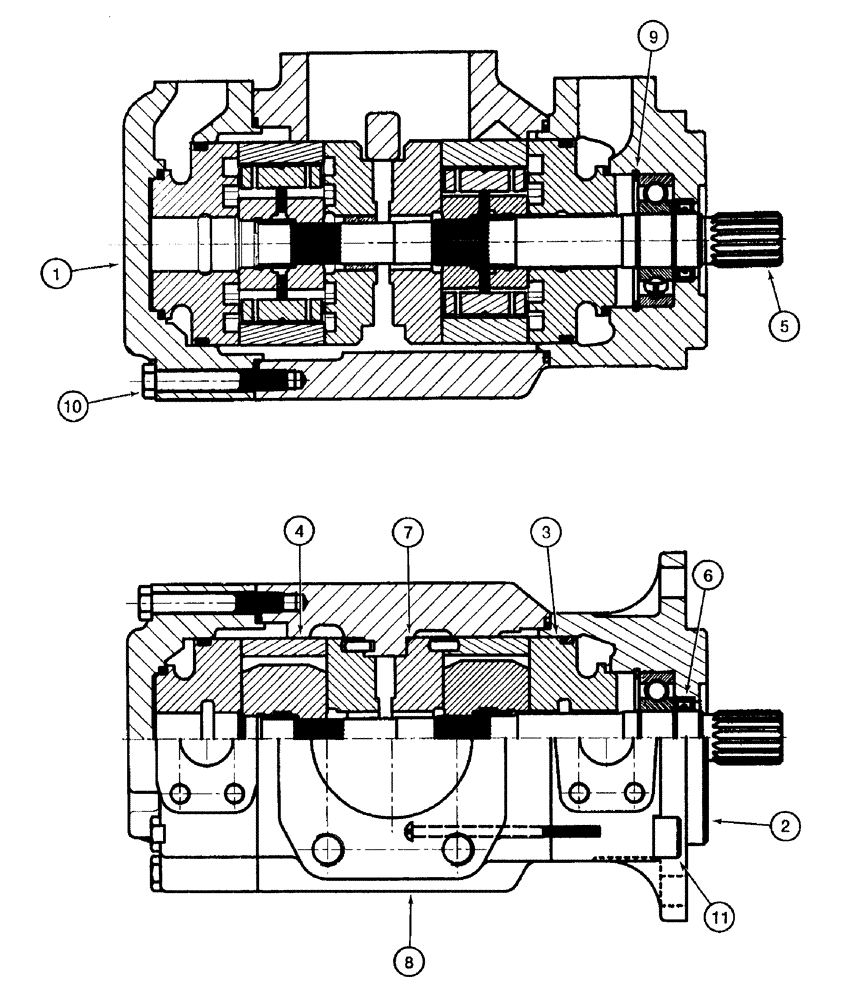

Запчасти Case 921B (8-007[A]) - EQUIPMENT AND STEERING PUMP, P.I.N. JEE0051800 AND AFTER (08) - HYDRAULICS

195854A1

PUMP, HYDRAULIC,132.57 CC

ASSY. - equipment and steering

1шт.

195854A1R

REMAN-HYD PUMP

921B

1шт.

195854A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

256613A1

CAP

COVER - pump, port end

1шт.

2

256617A1

CAP

COVER - pump, shaft end

1шт.

3

256631A1

ASSEMBLY

KIT - gear, internal, shaft end, component parts not serviced separately

1шт.

4

256630A1

ASSEMBLY

KIT - gear, internal, port end, component parts not serviced separately

1шт.

5

256628A1

BEARING ASSY

includes bearings, component parts not serviced separately

1шт.

6

256629A1

SEAL KIT

seal, component parts not serviced separately

1шт.

7

256626A1

LARGE PLATE

PLATE, LARGE internal, rear port plate and bushing

1шт.

8

256619A1

HOUSING

center

1шт.

9

3215468R1

RING

retaining, shaft and bearing

1шт.

10

3215476R1

BOLT

SCREW - special, rear end cover

7шт.

11

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

Shaft end cover

4шт.

12

256625A1

LARGE PLATE

PLATE, LARGE rear port, not illustrated

1шт.
