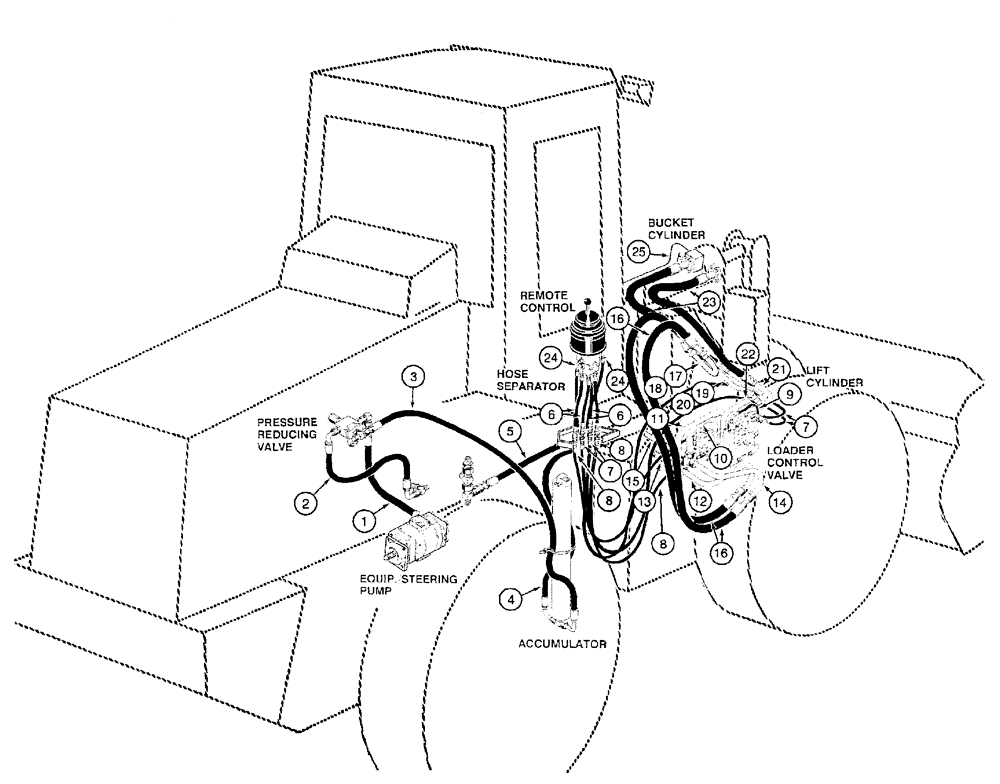

Запчасти Case 921B (1-018) - PICTORIAL INDEX - TWO SPOOL CONTROL VALVE HYDRAULIC CIRCUIT (00) - PICTORIAL INDEX

1

Hose, hydraulic equipment pump to pressure reducing valve, page 8-59

1шт.

2

Hose, pressure reducing valve to cooler bypass valve, page 8-59

1шт.

3

Hose, pressure reducing valve to accumulator, page 8-59

1шт.

4

Hose, accumulator to cab, page 8-61

1шт.

5

Hose, cab to hydraulic reservoir, page 8-61

1шт.

6

Hose, hose separator to remote control, page 8-43, 8-45

1шт.

7

Hose, hose separator to ports 1A and 2A, page 8-47

1шт.

8

Hose, hose separator to ports 1B and 2B, page 8-47

1шт.

9

Hose, inlet and outlet section to tee at port 1A, page 8-47

1шт.

10

Supply tube, valve to lift cylinder, closed end circuit, page 8-33

1шт.

11

Supply tube, valve to lift cylinder, rod end circuit, page 8-33

1шт.

12

Lift tube, right-hand rod end, page 8-33

1шт.

13

Lift tube, left-hand rod end, page 8-33

1шт.

14

Lift tube, right-hand closed end, page 8-33

1шт.

15

Lift tube, left-hand closed end, page 8-33

1шт.

16

Hose, at cylinders, page 8-33

1шт.

17

Tube, right-hand, cylinder closed end, page 8-33

1шт.

18

Tube, left-hand, cylinder closed end, page 8-33

1шт.

19

Tube, right-hand, cylinder rod end, page 8-33

1шт.

20

Tube, left-hand, cylinder rod end, page 8-33

1шт.

21

Supply tube, right-hand, page 8-35

1шт.

22

Supply tube, left-hand, page 8-35

1шт.

23

Hose, tube to bucket cylinder, page 8-35

1шт.

24

Hose, remote control to hose separator, hydraulic reservoir and pressure reducing valve ports, page 8-43, 8-45

1шт.

25

Tube, bucket cylinder, closed end, page 8-35

1шт.
