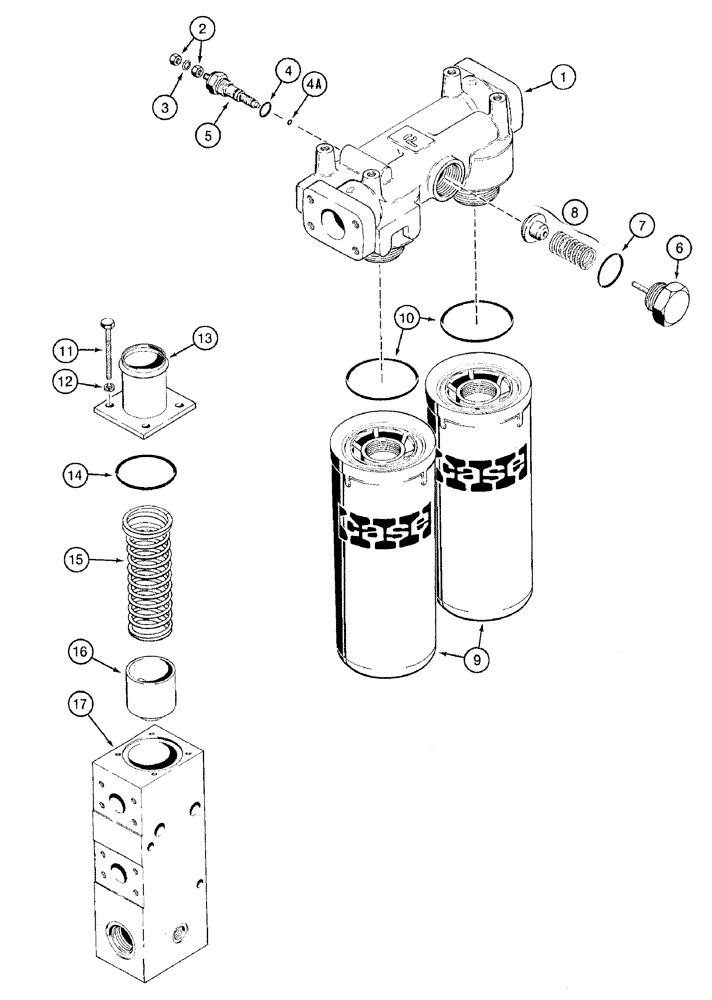

Запчасти Case 921B (8-004) - HYDRAULIC OIL FILTER AND COOLER BYPASS VALVE, HYDRAULIC OIL FILTER (08) - HYDRAULICS

L127992

FILTER ASSY

hydraulic oil, see figure 8-16 for mounting, hydraulic oil filter

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - filter, hydraulic oil filter

1шт.

N6755

PRESSURE SWITCH

ASSEMBLY - restriction, electric, hydraulic oil filter

1шт.

2

225-14210

NUT,#10-32

Hydraulic oil filter

2шт.

3

493-21020

LOCK WASHER,Int Tooth, #10

(3/16"), Hydraulic oil filter

1шт.

4a

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

Hydraulic oil filter

1шт.

5

NSS

NOT SOLD SEPARAT

INDICATOR - restriction, order N6755 assembly, hydraulic oil filter

1шт.

6

NSS

NOT SOLD SEPARAT

PLUG - hex, bypass valve retaining, hydraulic oil filter

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - plug, hydraulic oil filter

1шт.

8

NSS

NOT SOLD SEPARAT

VALVE - bypass, 50 psi, order L127992 filter assembly, hydraulic oil filter

1шт.

N9086

HYDRAULIC OIL FILTER

ASSEMBLY - filter, hydraulic oil filter

2шт.

9

NSS

NOT SOLD SEPARAT

ELEMENT - filter, order N9086 element assembly, hydraulic oil filter

1шт.

10

D21006

O-RING,0.125" Thk x 3.125" ID, 70 Duro

element, hydraulic oil filter

1шт.

L127968

VALVE BODY

ASSEMBLY - cooler bypass, see figure 8-16 for mounting, cooler bypass valve

1шт.

11

426-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 8

Cooler bypass valve

4шт.

12

492-21031

LOCK WASHER,5/16"

cooler bypass valve 5/16"

4шт.

13

S302009

END FITTING

TUBE - outlet, cooler bypass valve

1шт.

14

238-5145

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

Cooler bypass valve

1шт.

15

S302010

SPRING

valve, cooler bypass valve

1шт.

16

S302008

VALVE POPPET

cooler bypass valve

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - valve, cooler bypass

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Hydraulic oil filter

1шт.
