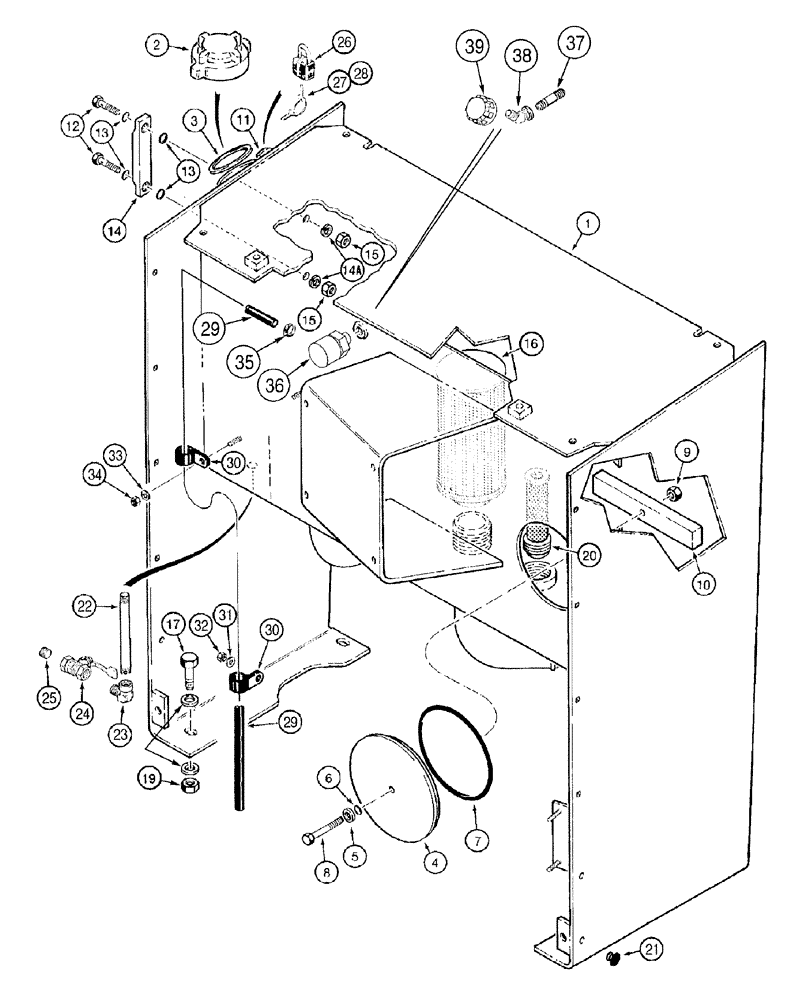

Запчасти Case 921B (8-003[A]) - HYDRAULIC RESERVOIR, P.I.N. JEE0052902 AND AFTER (08) - HYDRAULICS

249858A1

TANK, HYDRAULIC OIL

RESERVOIR ASSEMBLY - replaces L127843 reservoir assembly, P.I.N. JEE0052902 and after

1шт.

1

NSS

NOT SOLD SEPARAT

RESERVOIR - hydraulic, P.I.N. JEE0052902 and after

1шт.

2

L127940

PLUG

CAP - filler, hydraulic reservoir, P.I.N. JEE0052902 and after

1шт.

3

R49868

GASKET,72mm ID x 90mm OD x 3mm Thk

rubber, P.I.N. JEE0052902 and after

1шт.

4

L128352

COVER

access, hydraulic filter, P.I.N. JEE0052902 and after

1шт.

5

L78045

WASHER

flat, special, P.I.N. JEE0052902 and after

1шт.

6

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

P.I.N, JEE0052902 and after

1шт.

7

238-5442

O-RING,0.275" Thk x 7.22" ID, -442, Cl 5, 75 Duro

7-1/4 ID x 1/4 inch wide, P.I.N. JEE0052902 and after

1шт.

8

113-2462

BOLT,Hex, 1/2" - 13 x 3", Gr 5

P.I.N. JEE0052902 and after

1шт.

9

131-510

LOCK NUT,1/2"-13

heavy hex, P.I.N. JEE0052902 and after

1шт.

10

L50741

BAR

cover retainer, P.I.N. JEE0052902 and after

1шт.

11

R46704

BRACKET

TAB - locking, P.I.N. JEE0052902 and after

1шт.

L116247

GAUGE

ASSEMBLY - sight, P.I.N. JEE0052902 and after

1шт.

12

N13213

BOLT

BOLT - special, sight gauge, no longer available, order L116247 sight gauge assembly, P.I.N. JEE0052902 and after

2шт.

13

238-7112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

Sight gauge, P.I.N. JEE0052902 and after

4шт.

14

NSS

NOT SOLD SEPARAT

GAUGE - sight, order L116247 sight gauge assembly, P.I.N. JEE0052902 and after

1шт.

14a

892-11012

LOCK WASHER,M12

P.I.N. JEE0052902 and after

2шт.

15

829-1412

NUT,M12, Cl 10.9

P.I.N. JEE0052902 and after

2шт.

16

L128515

STRAINER ELEMENT

SCREEN - suction, P.I.N. JEE0052902 and after

1шт.

17

426-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

P.I.N. JEE0052902 and after

4шт.

18

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

flat, special, hardened, P.I.N. JEE0052902 and after

8шт.

19

425-1010

NUT,5/8"-11, G5

P.I.N. JEE0052902 and after

4шт.

20

L129303

FILTER SCREEN

reservoir, P.I.N. JEE0052902 and after

1шт.

21

L126856

RIVET

CUSHION - rubber, P.I.N. JEE0052902 and after

4шт.

22

221-1223

PIPE,Nipple, 3/4" NPT x 6"

Straight, P.I.N. JEE0052902 and after

1шт.

23

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Street, P.I.N. JEE0052902 and after

1шт.

24

L124327

DRAIN VALVE

P.I.N. JEE0052902 and after

1шт.

25

217-442

PLUG,3/4" - 14

hex socket headless, 3/4 inch PT, P.I.N. JEE0052902 and after

1шт.

26

D93753

PADLOCK

includes keys, if used, P.I.N. JEE0052902 and after

1шт.

27

D93751

SET OF 2 KEYS

for Yale padlock only, if used, P.I.N. JEE0052902 and after

2шт.

28

R29555

KEY

for Master padlock only, if used, P.I.N. JEE0052902 and after

2шт.

29

L129439

HOSE,9.5 mm ID x 2100.00 mm, SAE 30R6

P.I.N. JEE0052902 Through JEE0056255

1шт.

30

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

P-type, P.I.N. JEE0052902 through JEE056255

2шт.

31

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

P.I.N. JEE0052902 through JEE056255

1шт.

32

832-10410

NUT,M10 x 1.5, Cl 8

P.I.N. JEE0052902 through JEE056255

1шт.

33

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16"), P.I.N. JEE0052902 through JEE056255

1шт.

34

231-1446

NUT,3/8" - 16, Gr 5

P.I.N. JEE0052902 through JEE056255

1шт.

35

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

adj, 1/4 - 5/8 inch dia, P.I.N. JEE0052902 through JEE0056255

1шт.

36

235417A1

VENT

BREATHER - pressure/vacuum, P.I.N. JEE0052902 through JEE0056255

1шт.

37

221-1169

NIPPLE, LUBE

NIPPLE straight, 3/8 PT x 4-1/2 inch, P.I.N. JEE0056256 and after

1шт.

38

221-1383

ELBOW

pipe, 90 degree, 3/4 x 3/8 inch, P.I.N. JEE0056256 and after

1шт.

39

302694A1

BREATHER

pressure/vacuum, P.I.N. JEE0056256 and after

1шт.
