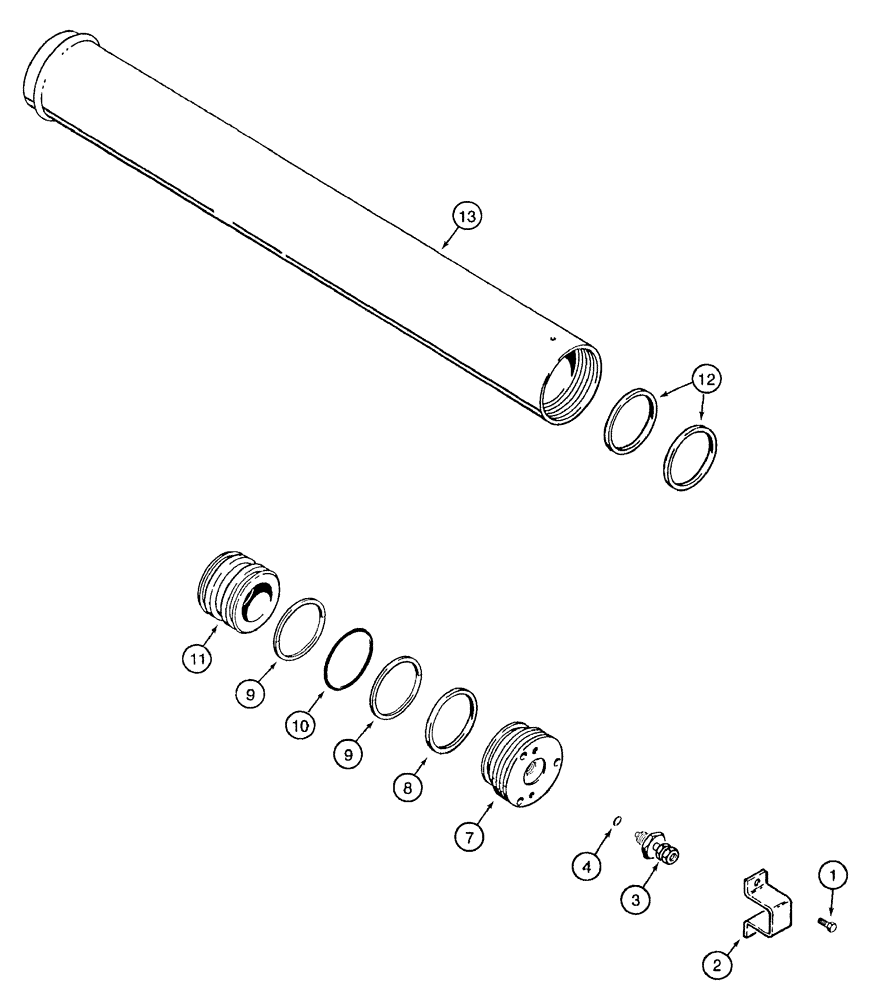

Запчасти Case 921B (7-028) - ACCUMULATOR ASSEMBLY BRAKE (07) - BRAKES

L129905

ACCUMULATOR

ASSEMBLY - brake, see figure 7-10 for mounting

1шт.

1

S301367

SCREW

special, bracket

2шт.

2

1341920C1

PROTECTOR

GUARD - valve, replaces S301366 bracket

1шт.

3

192900A1

VALVE

ASSEMBLY - accumulator charging, replaces 179066A1 valve

1шт.

4

1978158C1

O-RING

O-RING - valve, valve

1шт.

Part of Seal Kit part number 1341919C1

1шт.

7

179065A1

CAP

GLAND - accumulator

1шт.

8

NSS

NOT SOLD SEPARAT

RING - seal, gland

1шт.

Part of Seal Kit part number 1341919C1

1шт.

9

NSS

NOT SOLD SEPARAT

RING - backup, piston O-ring

2шт.

Part of Seal Kit part number 1341919C1

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of Seal Kit part number 1341919C1

1шт.

11

S301364

PISTON

accumulator

1шт.

12

S301365

RING

wear, teflon, piston

2шт.

13

NSS

NOT SOLD SEPARAT

TUBE - accumulator

1шт.

1341919C1

SEAL KIT

seal, accumulator, Includes: ref. 4,8,9, and 10

1шт.
