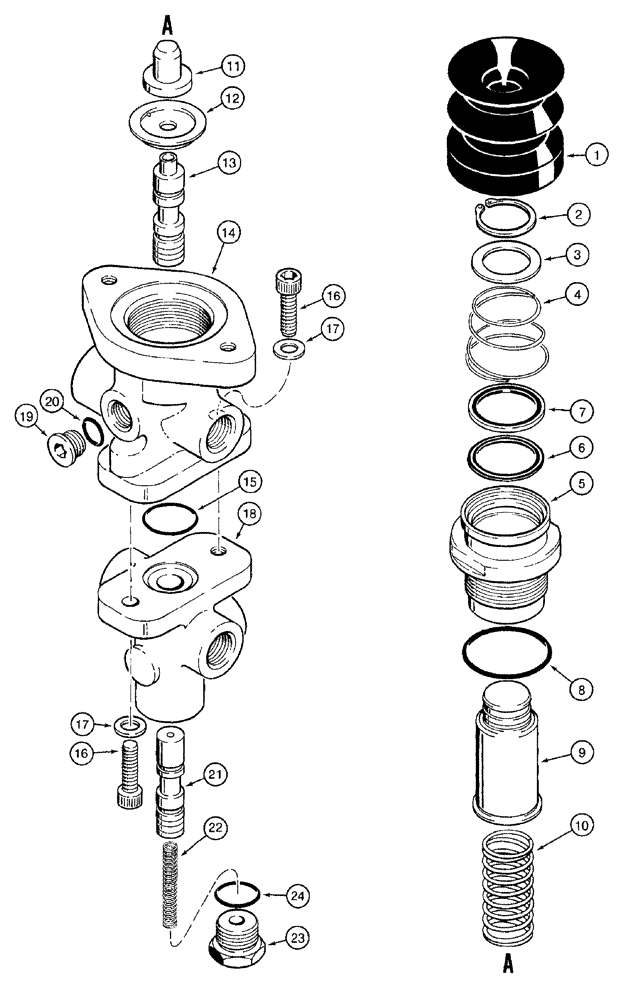

Запчасти Case 921B (7-026) - BRAKE VALVE (07) - BRAKES

L129699

VALVE

ASSEMBLY - brake, see figure 7-14 for mounting, prior to P.I.N. JEE0051723, no longer available, order 223437A1 valve assembly below

1шт.

223437A1

VALVE

ASSEMBLY - brake, see figure 7-14 for mounting, P.I.N. JEE0051723 and after

1шт.

1

100660A1

BOOT

brake valve

1шт.

Part of Seal Kit part number 100659A1

1шт.

2

100-1187

SNAP RING,#87, Ext

1шт.

3

100665A1

WASHER

flat, special

1шт.

4

100666A1

SPRING

gland

1шт.

5

100667A1

CENTERING RING

GLAND - valve

1шт.

6

100662A1

SEALING RING

gland

1шт.

Part of Seal Kit part number 100659A1

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER - gland

1шт.

Part of Seal Kit part number 100659A1

1шт.

8

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

Gland

1шт.

Part of Seal Kit part number 100659A1

1шт.

9

NSS

NOT SOLD SEPARAT

PLUNGER - valve

1шт.

10

NSS

NOT SOLD SEPARAT

SPRING - large, upper

1шт.

11

NSS

NOT SOLD SEPARAT

POPPET - spring

1шт.

12

100668A1

CUP WASHER

SEAT - plunger

1шт.

13

NSS

NOT SOLD SEPARAT

SPOOL - upper

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - upper

1шт.

15

100664A1

O-RING,0.864" ID x 1.004" OD x 0.07"

lower body

1шт.

Part of Seal Kit part number 100659A1

1шт.

16

100672A1

HEX SOC SCREW,5/16" - 18 x 1"

hex socket, special

2шт.

17

100673A1

WASHER

flat, special

2шт.

18

NSS

NOT SOLD SEPARAT

BODY - lower

1шт.

19

9625178

PLUG,9/16" - 18 ORB

Upper body

1шт.

21

NSS

NOT SOLD SEPARAT

SPOOL - lower

1шт.

22

100669A1

SPRING

lower

1шт.

23

100670A1

PLUG

lower body

1шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of Seal Kit part number 100659A1

1шт.

100659A1

SEAL KIT

seal, Includes: ref. 1,6,7,8,15, and 24

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
