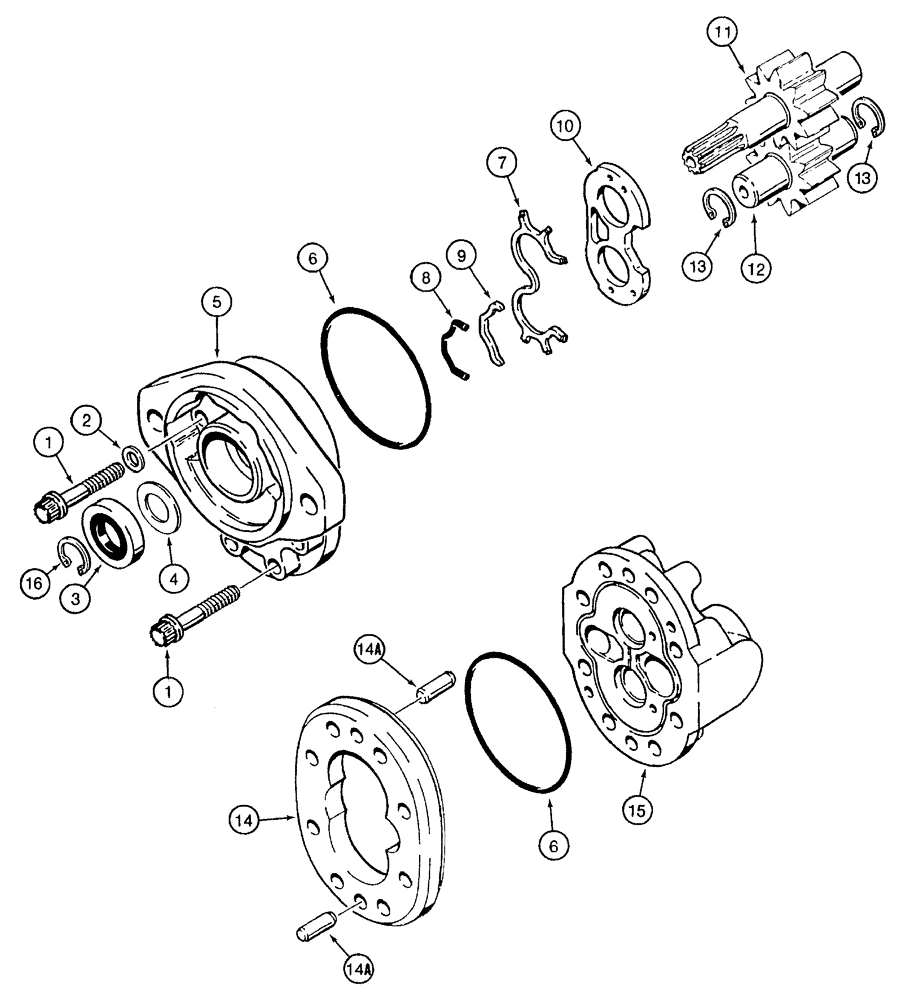

Запчасти Case 921B (7-024) - BRAKE PUMP (07) - BRAKES

L129931

PUMP

ASSEMBLY - brake, see figure 7-8 for mounting

1шт.

1

380-2532

12 PT SCREW,Flg, 5/16" - 18 x 2", Gr 8

BOLT - 12 point flange, chemical locking, 5/16 NC x 2 inch

8шт.

2

NSS

NOT SOLD SEPARAT

WASHER - shaft end cover, used as a spacer

4шт.

Part of Seal Kit part number 1272638C2

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

Part of Seal Kit part number 1272638C2

1шт.

4

N13135

WASHER

special, shaft end cover

1шт.

Part of Seal Kit part number 1272638C2

1шт.

5

H435657

COVER

drive shaft end

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - end cover

2шт.

Part of Seal Kit part number 1272638C2

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET - shaft end cover

1шт.

Part of Seal Kit part number 1272638C2

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - black, shaft end cover

1шт.

Part of Seal Kit part number 1272638C2

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - white, shaft end cover

1шт.

Part of Seal Kit part number 1272638C2

1шт.

10

NSS

NOT SOLD SEPARAT

PLATE - thrust

1шт.

Part of Seal Kit part number 1272638C2

1шт.

11

100106A1

PINION

GEAR - drive

1шт.

12

N13658

SPROCKET ASSY.

GEAR ASSEMBLY - idler

1шт.

13

S300377

RING, SNAP

RING SNAP

2шт.

14

N13657

BODY

HOUSING ASSEMBLY - gear

1шт.

14a

71120

VALVE

PIN - dowel

4шт.

15

S300370

COVER

port end

1шт.

16

100-21137

SNAP RING,1.375", Int, #137

1шт.

1272638C2

SEAL KIT

seal, Includes: ref. 2,3,4,6,7,8,9, and 10

1шт.
