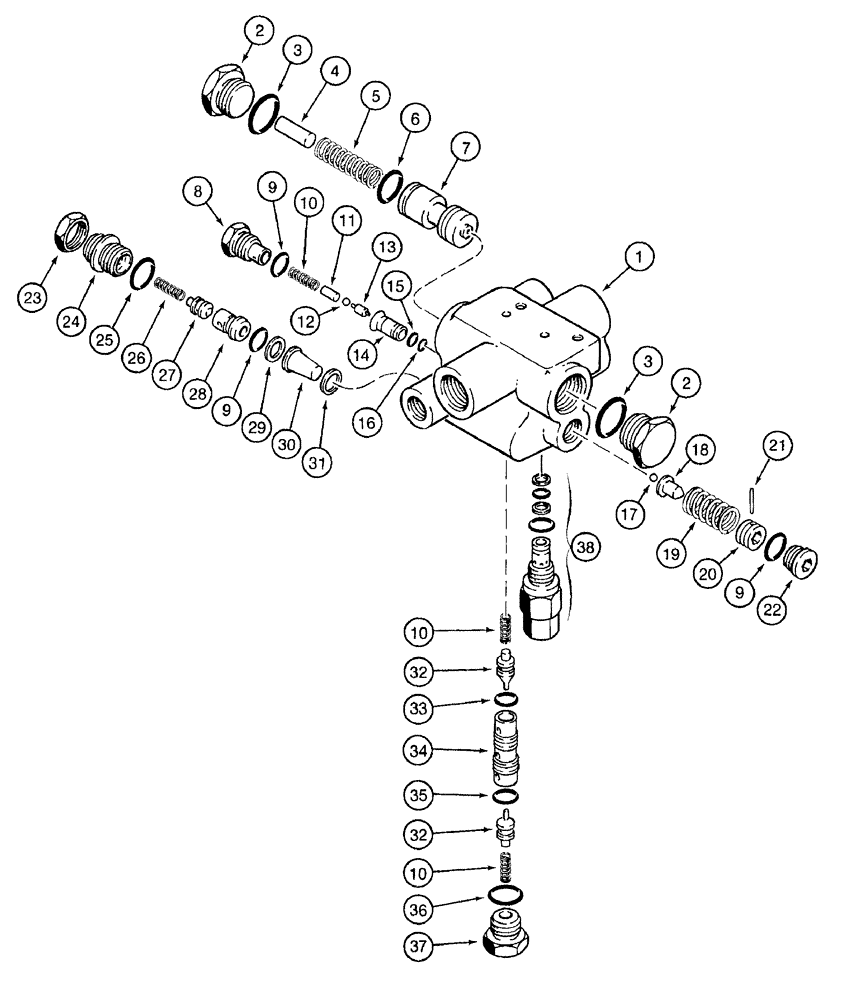

Запчасти Case 921B (7-023A) - BRAKE ACCUMULATOR VALVE - 232531A1 (07) - BRAKES
№
Артикул
Название
Примечание
Количество
232531A1
VALVE
ASSEMBLY - accumulator, see figure 7-8 for mounting
1шт.
232531A1R
REMAN-HYD VALVE
921B (3/95-)
1шт.
232531A1C
CORE-VALVE HYD
Return Number
1шт.
1
NSS
NOT SOLD SEPARAT
BODY - valve, brake accumulator
1шт.
2
NSS
NOT SOLD SEPARAT
PLUG - large
2шт.
3
NSS
NOT SOLD SEPARAT
O-RING - plug
1шт.
Part of Repair Kit part number 233562A1
1шт.
4
NSS
NOT SOLD SEPARAT
ROD - plunger
1шт.
5
S302035
SPRING
rod
1шт.
6
NSS
NOT SOLD SEPARAT
O-RING - spool, small
1шт.
Part of Repair Kit part number 233562A1
1шт.
7
NSS
NOT SOLD SEPARAT
SPOOL - valve
1шт.
8
NSS
NOT SOLD SEPARAT
PLUG - special
1шт.
9
NSS
NOT SOLD SEPARAT
O-RING - plug
3шт.
Part of Repair Kit part number 233562A1
1шт.
10
NSS
NOT SOLD SEPARAT
SPRING - small
3шт.
11
NSS
NOT SOLD SEPARAT
ROD - plunger
1шт.
12
NSS
NOT SOLD SEPARAT
BALL - poppet
1шт.
13
NSS
NOT SOLD SEPARAT
POPPET - spool
1шт.
14
NSS
NOT SOLD SEPARAT
SPOOL - valve
1шт.
15
NSS
NOT SOLD SEPARAT
O-RING - spool, large
1шт.
Part of Repair Kit part number 233562A1
1шт.
16
NSS
NOT SOLD SEPARAT
O-RING - spool, small
1шт.
Part of Repair Kit part number 233562A1
1шт.
17
NSS
NOT SOLD SEPARAT
BALL - seat
1шт.
18
NSS
NOT SOLD SEPARAT
SEAT - spring
1шт.
19
S302034
SPRING
large
1шт.
20
NSS
NOT SOLD SEPARAT
PLUG - hex, socket headless
1шт.
21
NSS
NOT SOLD SEPARAT
SCREW - set
1шт.
22
NSS
NOT SOLD SEPARAT
PLUG - hex, socket
1шт.
23
NSS
NOT SOLD SEPARAT
NUT - hex
1шт.
24
NSS
NOT SOLD SEPARAT
SCREW ASSEMBLY - adjusting, includes washer
1шт.
25
NSS
NOT SOLD SEPARAT
O-RING - screw
1шт.
Part of Repair Kit part number 233562A1
1шт.
26
NSS
NOT SOLD SEPARAT
SPRING - poppet
1шт.
27
NSS
NOT SOLD SEPARAT
POPPET - valve
1шт.
Part of Repair Kit part number 232532A1
1шт.
28
NSS
NOT SOLD SEPARAT
SEAT - poppet
1шт.
29
NSS
NOT SOLD SEPARAT
WASHER - outer
1шт.
30
NSS
NOT SOLD SEPARAT
FILTER - valve
1шт.
31
NSS
NOT SOLD SEPARAT
WASHER - inner
1шт.
32
NSS
NOT SOLD SEPARAT
POPPET - valve
2шт.
33
NSS
NOT SOLD SEPARAT
O-RING - spool, small
1шт.
Part of Repair Kit part number 233562A1
1шт.
34
NSS
NOT SOLD SEPARAT
SPOOL - valve
1шт.
35
NSS
NOT SOLD SEPARAT
O-RING - spool, large
1шт.
Part of Repair Kit part number 233562A1
1шт.
36
NSS
NOT SOLD SEPARAT
O-RING - plug
1шт.
Part of Repair Kit part number 233562A1
1шт.
37
NSS
NOT SOLD SEPARAT
PLUG - end
1шт.
38
S302033
VALVE
relief
1шт.
233562A1
SEAL KIT
KIT - repair, Includes: ref. 3,6,9,15,16,25,33,35, and 36
1шт.
232532A1
SET OF PARTS
KIT - repair, steel ball check, Includes: ref. 27
1шт.
