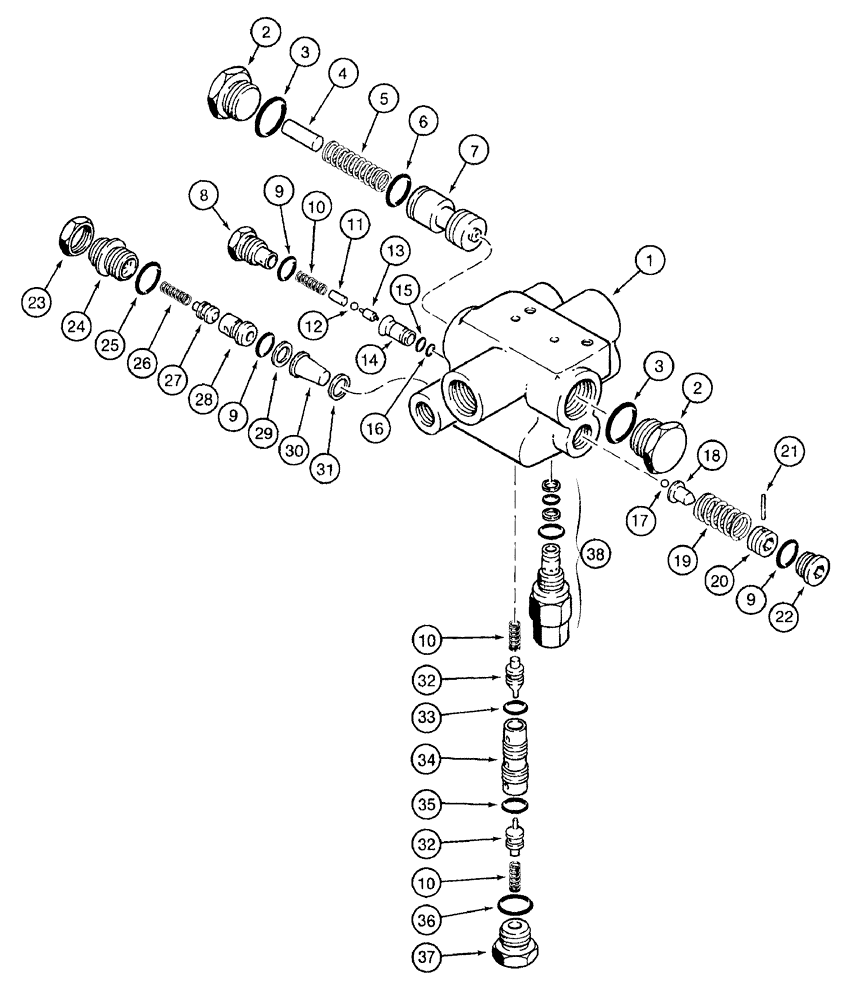

Запчасти Case 921B (7-022) - BRAKE ACCUMULATOR VALVE (07) - BRAKES

L128116

VALVE

ASSEMBLY - accumulator, see figure 7-8 for mounting, no longer available, order 232531A1 accumulator valve assembly, figure 7-23A

1шт.

232531A1R

REMAN-HYD VALVE

921B (3/95-), Reman for New P/N L128116

1шт.

232531A1C

CORE-VALVE HYD

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve, brake accumulator

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG - large

2шт.

3

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

Part of Repair Kit part number S302036

1шт.

4

NSS

NOT SOLD SEPARAT

ROD - plunger

1шт.

5

S302035

SPRING

rod

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - spool, small

1шт.

Part of Repair Kit part number S302036

1шт.

7

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

8

NSS

NOT SOLD SEPARAT

PLUG - special

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - plug

3шт.

Part of Repair Kit part number S302036

1шт.

10

NSS

NOT SOLD SEPARAT

SPRING - small

3шт.

11

NSS

NOT SOLD SEPARAT

ROD - plunger

1шт.

12

NSS

NOT SOLD SEPARAT

BALL - poppet

1шт.

13

NSS

NOT SOLD SEPARAT

POPPET - spool

1шт.

14

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - spool, large

1шт.

Part of Repair Kit part number S302036

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - spool, small

1шт.

Part of Repair Kit part number S302036

1шт.

17

NSS

NOT SOLD SEPARAT

BALL - seat

1шт.

18

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

19

S302034

SPRING

large

1шт.

20

NSS

NOT SOLD SEPARAT

PLUG - hex, socket headless

1шт.

Part of Repair Kit part number S302036

1шт.

21

NSS

NOT SOLD SEPARAT

SCREW - set

1шт.

Part of Repair Kit part number S302036

1шт.

22

NSS

NOT SOLD SEPARAT

PLUG - hex, socket

1шт.

23

NSS

NOT SOLD SEPARAT

NUT - hex

1шт.

24

NSS

NOT SOLD SEPARAT

SCREW ASSEMBLY - adjusting includes washer

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING - screw

1шт.

Part of Repair Kit part number S302036

1шт.

26

NSS

NOT SOLD SEPARAT

SPRING - poppet

1шт.

27

NSS

NOT SOLD SEPARAT

POPPET - valve

1шт.

Part of Repair Kit part number S302036

1шт.

28

NSS

NOT SOLD SEPARAT

SEAT - poppet

1шт.

29

NSS

NOT SOLD SEPARAT

WASHER - outer

1шт.

30

NSS

NOT SOLD SEPARAT

FILTER - valve

1шт.

Part of Repair Kit part number S302036

1шт.

31

NSS

NOT SOLD SEPARAT

WASHER - inner

1шт.

32

NSS

NOT SOLD SEPARAT

POPPET - valve

2шт.

Part of Repair Kit part number S302036

1шт.

33

NSS

NOT SOLD SEPARAT

O-RING - spool, small

1шт.

Part of Repair Kit part number S302036

1шт.

34

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

35

NSS

NOT SOLD SEPARAT

O-RING - spool, large

1шт.

Part of Repair Kit part number S302036

1шт.

36

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

Part of Repair Kit part number S302036

1шт.

37

NSS

NOT SOLD SEPARAT

PLUG - end

1шт.

38

S302033

VALVE

relief

1шт.

S302036

SEAL KIT

KIT - repair, Includes: ref 3,6,9,15,16,20,21,25,27,30,32,33,35, and 36

1шт.
