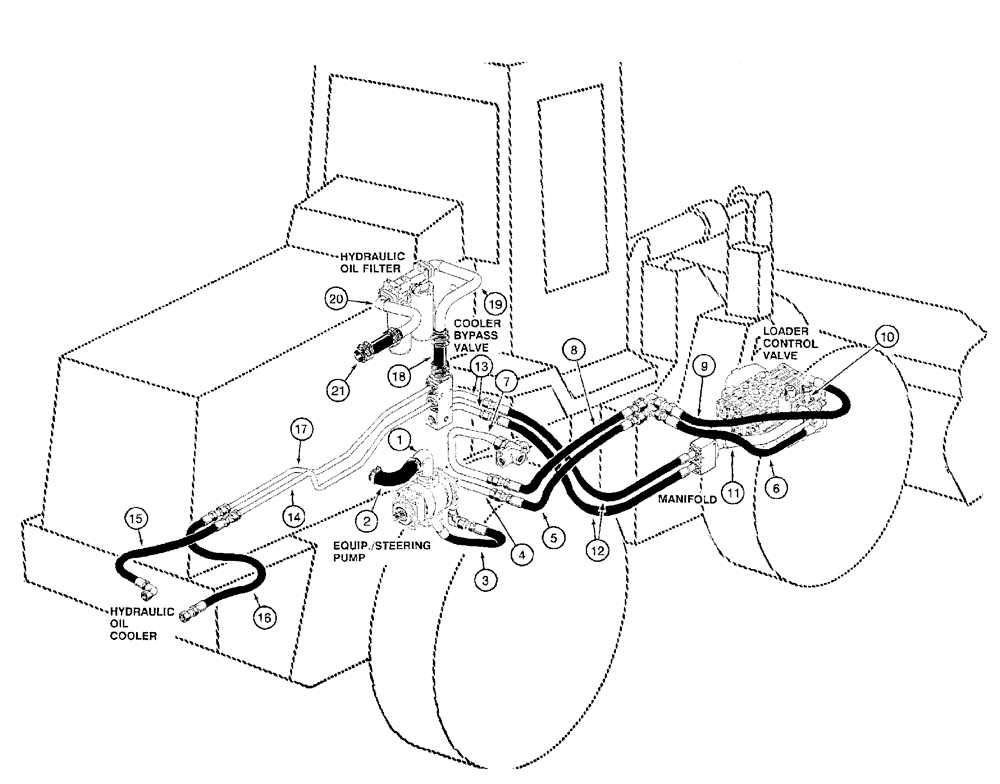

Запчасти Case 921B (1-016) - PICTORIAL INDEX - BASIC HYDRAULIC CIRCUIT (00) - PICTORIAL INDEX

1

Suction tube, reservoir to pump, page 8-9

1шт.

2

Suction hose, from suction tube to pump, page 8-9

1шт.

3

Supply hose, pump port end cover to elbow, page 8-9

1шт.

4

Supply tube, elbow to hose, page 8-9

1шт.

5

Supply hose, tube to bulkhead fitting, page 8-9

1шт.

6

Supply hose, bulkhead fitting to loader control valve, page 8-9

1шт.

7

Supply tube, at priority valve, page 8-9

1шт.

8

Supply hose, priority valve tube to bulkhead fitting, page 8-11

1шт.

9

Supply hose, bulkhead fitting to tube at loader control valve, page 8-11

1шт.

10

Supply tube, at loader control valve, page 8-11

1шт.

11

Return tube, loader control valve to manifold, page 8-13

1шт.

12

Return hose, manifold to tubes at cooler bypass valve, page 8-13

1шт.

13

Return tube, at cooler bypass valve, page 8-13

1шт.

14

Supply tube, cooler bypass valve to hydraulic oil cooler hose, page 8-15

1шт.

15

Supply hose, cooler bypass tube to hydraulic oil cooler, page 8-15

1шт.

16

Return hose, hydraulic oil cooler to cooler bypass tube, page 8-15

1шт.

17

Return tube, hydraulic oil cooler hose to cooler bypass valve, page 8-15

1шт.

18

Return hose, cooler bypass valve to tube at filter, page 8-17

1шт.

19

Return tube, cooler bypass valve to filter, page 8-17

1шт.

20

Return tube, filter to hose at hydraulic reservoir, page 8-17

1шт.

21

Return hose, tube from filter to hydaulic reservoir, page 8-17

1шт.
