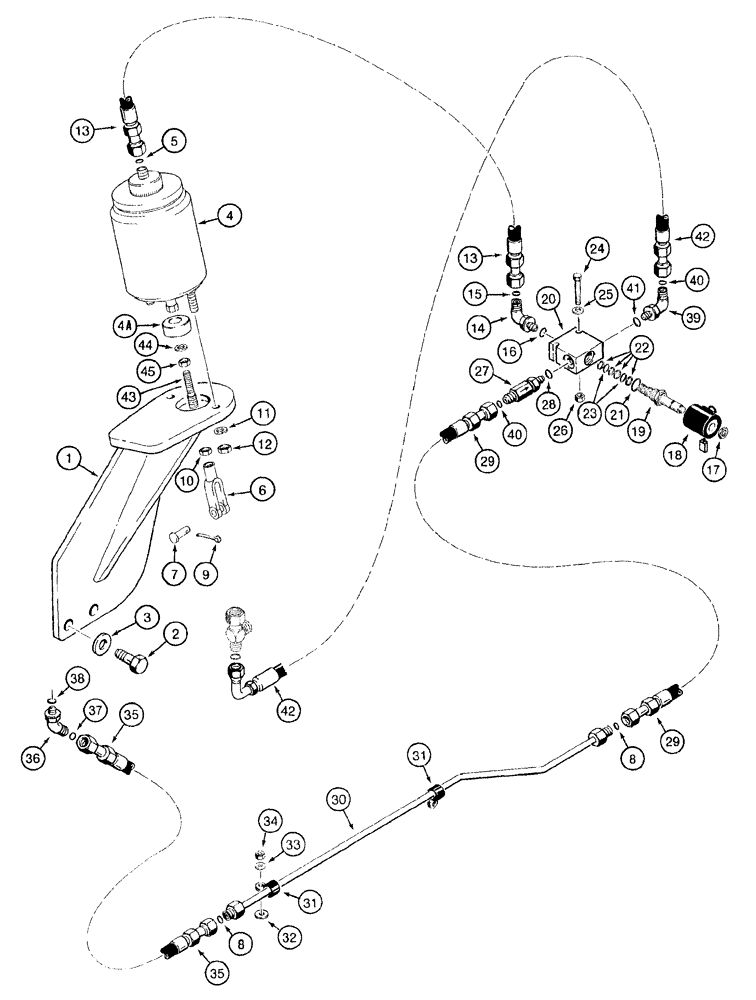

Запчасти Case 921B (7-020) - PARKING BRAKE HYDRAULIC CIRCUIT (07) - BRAKES

1

184621A2

SUPPORT

BRACKET - mounting, parking brake actuator

1шт.

2

614-20040

BOLT,Hex, M20 x 2.5 x 40mm, Cl 8.8, Full Thd

Full threads

3шт.

3

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

3шт.

4

184622A1

ACTUATOR

parking brake

1шт.

4a

NSS

NOT SOLD SEPARAT

BOOT - actuator

1шт.

5

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

6

213-128

ADJUSTABLE CLEVIS,1/2"-20 x 3"

1шт.

7

527-204

CLEVIS PIN,M12 x 43

clevis, 10 x 43 mm

1шт.

8

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

9

432-820

COTTER PIN,1/8" x 1 1/4"

1шт.

10

425-158

JAM NUT,Jam, 1/2"-20, G5

1шт.

11

495-21056

WASHER,1/2"

flat, 9/16 x 1-3/8 x 7/64 inch

2шт.

12

829-1412

NUT,M12, Cl 10.9

2шт.

13

L129824

HOSE ASSY.

550 mm (21-11/16 inch) long, actuator to elbow at valve

1шт.

14

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

O-ring boss

1шт.

15

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end

1шт.

L129814

VALVE, BRAKE

ASSEMBLY - solenoid, parking brake

1шт.

17

S302100

NUT

hex, special

1шт.

18

S302097

SPINDLE

SOLENOID - valve

1шт.

19

S302099

CARTRIDGE

valve, internal components not serviced separately

1шт.

20

S302098

VALVE BODY

1шт.

S302101

SEAL KIT

seal

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

22

NSS

NOT SOLD SEPARAT

RING - backup

4шт.

23

NSS

NOT SOLD SEPARAT

O-RING - small

2шт.

24

426-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 8

BOLT - hex, 1/4 NC x 2-1/2 inch, grade 8

2шт.

25

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

2шт.

26

231-1444

NUT,1/4"-20, GB

2шт.

27

L129820

VALVE

check

1шт.

29

L128710

HOSE ASSY.

650 mm (25-5/8 inch) long, relief, Serial Range: valve-tube

1шт.

30

L129851

TUBE,12.7 mm OD x 881, 90 mm L

relief valve hose to brake manifold hose

1шт.

31

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

P-type, Uses existing brake tube hardware, See figure 7-10

2шт.

32

187563A1

SPACER

13 x 25 x 28 mm

1шт.

33

496-21041

WASHER,13/32" x 13/16" x .089", HDN

1шт.

34

231-1446

NUT,3/8" - 16, Gr 5

1шт.

35

L129824

HOSE ASSY.

550 mm (21-11/16 inch) long, tube to brake manifold

1шт.

36

201-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

45 degree, 11/16-16 face seal x 9/16-18 inch adj O-ring boss

1шт.

37

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end

1шт.

39

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

O-ring boss

1шт.

40

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end

1шт.

42

108656A1

HOSE ASSY.

865 mm (34-1/16 inch) long, return

1шт.

43

184623A1

ROD,THREADED

THREADED ROD parking brake actuator, parking brake actuator

1шт.

44

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

1шт.

45

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss end

1шт.

28

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

38

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss end

1шт.

41

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss end

1шт.
