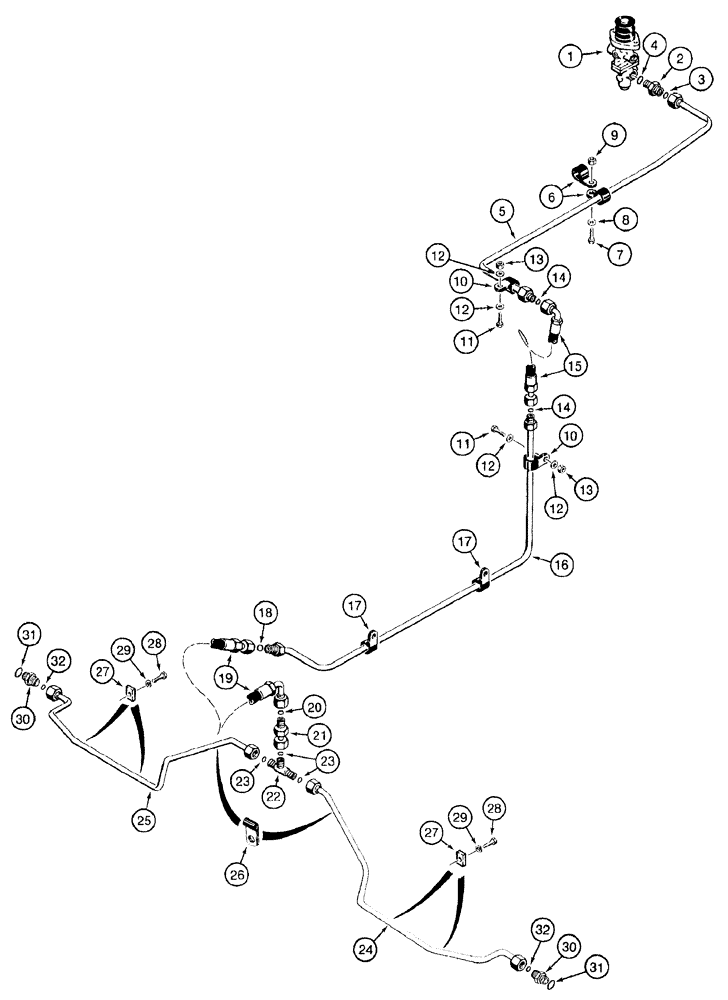

Запчасти Case 921B (7-018) - MAIN BRAKE HYDRAULIC CIRCUIT - MAIN BRAKE VALVE TO REAR AXLE (07) - BRAKES

1

L129699

VALVE

ASSEMBLY - brake, main, prior to P.I.N. JEE0051723, parts list figure 7-26, no longer available, order 223437A1 valve assembly

1шт.

1

223437A1

VALVE

ASSEMBLY - brake, main, P.I.N. JEE0051723 and after, parts list figure 7-26

1шт.

2

201-115

HYD CONNECTOR,1" - 14 Male ORFS x 3/4" - 16 Male ORB

ADAPTER - straight, 1-14 face seal x 3/4-16 inch O-ring boss

1шт.

3

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

5

L129767

TUBE,15.87 mm OD

main brake valve to hose

1шт.

6

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type

2шт.

7

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

8

496-21041

WASHER,13/32" x 13/16" x .089", HDN

1шт.

9

231-1446

NUT,3/8" - 16, Gr 5

1шт.

10

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type

2шт.

11

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

12

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

13

231-1446

NUT,3/8" - 16, Gr 5

2шт.

14

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

15

L129763

HOSE ASSY.

320 mm (12-5/8 inch) long, main brake valve tube to rear brake tube

1шт.

16

L129784

TUBE,15.87 mm OD

hose to hose

1шт.

17

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type, Uses existing brake tube hardware, See figure 7-10

2шт.

18

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

19

L129761

HOSE ASSY.

850 mm (33-1/2 inch) long, Serial Range: tube-tee

1шт.

20

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

21

L129633

TUBE,12.7 mm OD x 60 mm L

hose to tee

1шт.

22

201-409

TEE,13/16"-16 ORFS

13/16-16 inch face seal branch x face seal x face seal

1шт.

23

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

24

106715A1

TUBE,12.7 mm OD, 770, 284 mm Length

brake, right-hand rear

1шт.

25

L129641

TUBE,12.7 mm OD

brake, left-hand rear

1шт.

26

L12296

CLAMP

rear brake tube retaining, uses existing rear axle hardware

2шт.

27

L129191

CLAMP

TAB - brake tube retaining

4шт.

28

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

4шт.

29

492-11025

LOCK WASHER,1/4"

4шт.

30

120782A1

ADAPTER

straight, special

2шт.

31

120879A1

O-RING,0.546" ID x 0.685" OD x 0.139"

O-RING - adapter

1шт.

32

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Not included with 120782A1 adapter

2шт.
