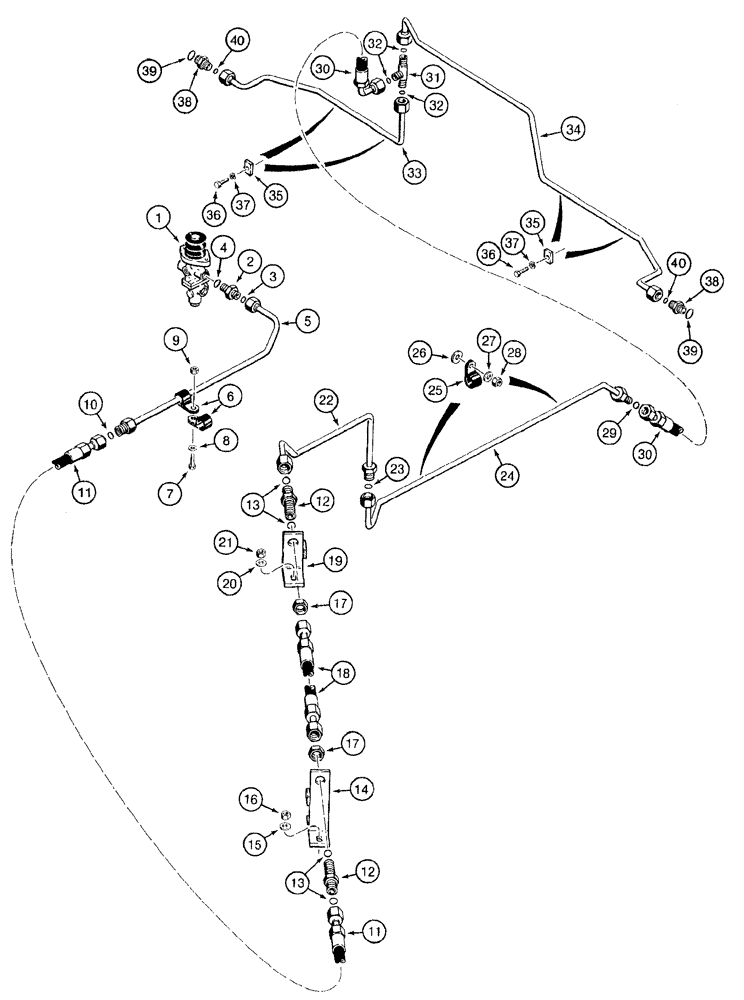

Запчасти Case 921B (7-016) - MAIN BRAKE HYDRAULIC CIRCUIT - MAIN BRAKE VALVE TO FRONT AXLE (07) - BRAKES

1

L129699

VALVE

ASSEMBLY - brake, main, parts list figure 7-26, prior to P.I.N.JEE0051723, no longer available, order 223437A1 valve assembly.

1шт.

1

223437A1

VALVE

ASSEMBLY - brake, main, parts list figure 7-26, P.I.N.JEE0051723 and after

1шт.

2

201-115

HYD CONNECTOR,1" - 14 Male ORFS x 3/4" - 16 Male ORB

ADAPTER - straight, 1-14 face seal x 3/4-16 inch O-ring boss

2шт.

3

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

5

L129765

TUBE,15.87 mm OD

brake valve upper port to hose

1шт.

6

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type

2шт.

7

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

8

496-21041

WASHER,13/32" x 13/16" x .089", HDN

1шт.

9

231-1446

NUT,3/8" - 16, Gr 5

1шт.

10

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

11

L129776

HOSE ASSY.

750 mm (25-5/8 inch) long, Serial Range: tube-adapter

1шт.

12

201-123

HYD CONNECTOR,1"-14, Blkhd, ORFS

ADAPTER - straight, 1-14 inch face seal x bulkhead face seal

2шт.

13

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

14

L129300

SUPPORT

BRACKET - mounting, hose, rear chassis

1шт.

15

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

16

231-1446

NUT,3/8" - 16, Gr 5

2шт.

17

201-919

BHD LOCK NUT,1" - 14

2шт.

18

L129762

HOSE ASSY.

452 mm (17-13/16 inch) long, Serial Range: adapter-adapter

1шт.

19

102803A1

SUPPORT

BRACKET - mounting, hose, front chassis

1шт.

20

187563A1

SPACER

13 x 25 x 28 mm

1шт.

21

231-1448

NUT,1/2"-13, GB

hex, self-locking, NC

1шт.

22

L129786

TUBE,15.87 mm OD

adapter to front chassis

1шт.

23

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

24

L129788

TUBE,15.87 mm OD

front chassis to front brake hose

1шт.

25

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type

2шт.

26

187563A1

SPACER

13 x 25 x 28 mm

2шт.

27

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

28

231-1446

NUT,3/8" - 16, Gr 5

2шт.

29

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

30

L129763

HOSE ASSY.

320 mm (12-5/8 inch) long, front chassis, Serial Range: tube-tee

1шт.

31

201-409

TEE,13/16"-16 ORFS

13/16-16 inch face seal branch x face seal x face seal

1шт.

32

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

33

L129624

TUBE,12.7 mm OD

brake, left-hand front

1шт.

34

L129622

TUBE,12.7 mm OD

brake, right-hand front

1шт.

35

L129191

CLAMP

TAB - brake tube retaining

4шт.

36

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

4шт.

37

492-11025

LOCK WASHER,1/4"

4шт.

38

120782A1

ADAPTER

straight, special

2шт.

39

120879A1

O-RING,0.546" ID x 0.685" OD x 0.139"

O-RING - adapter

1шт.

40

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Not included with 120782A1 adapter

2шт.
