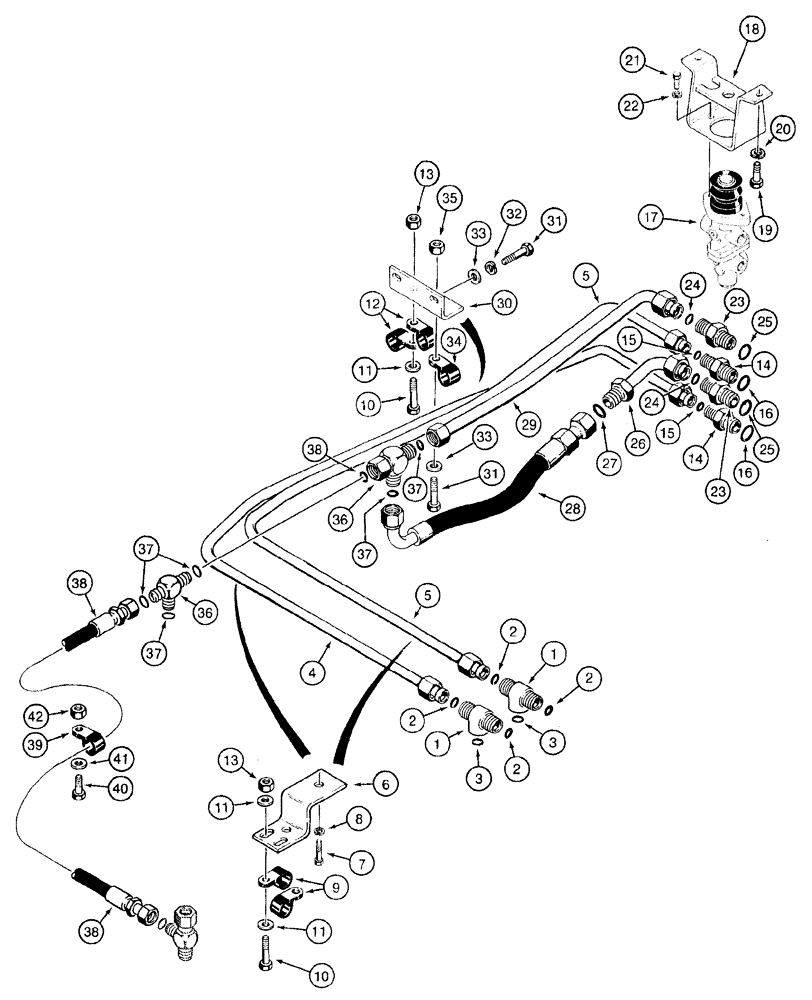

Запчасти Case 921B (7-014) - MAIN BRAKE HYDRAULIC CIRCUIT - TEE TO MAIN BRAKE VALVE (07) - BRAKES

1

L129806

TEE

special

2шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end

2шт.

4

L129771

TUBE,12.7 mm OD

tee to main brake valve upper port

1шт.

5

L129769

TUBE,12.7 mm OD

tee to main brake valve lower port

1шт.

6

L129538

SUPPORT

BRACKET - mounting, tube

2шт.

7

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

2шт.

8

492-11031

LOCK WASHER,5/16"

2шт.

9

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

P-type

4шт.

10

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

5шт.

11

496-21041

WASHER,13/32" x 13/16" x .089", HDN

9шт.

12

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

P-type

2шт.

13

231-1446

NUT,3/8" - 16, Gr 5

5шт.

14

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

2шт.

15

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

17

L129699

VALVE

ASSEMBLY - brake, main, prior to P.I.N.JEE0051723, parts list figure 7-26, no longer available, order 223437A1 valve.

1шт.

17

223437A1

VALVE

ASSEMBLY - brake, main, P.I.N.JEE0051723 and after, parts list figure 7-26

1шт.

18

1990621C2

GUIDE

BRACKET - brake rod guide

1шт.

19

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

20

492-11038

LOCK WASHER,3/8"

2шт.

21

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

2шт.

22

492-11031

LOCK WASHER,5/16"

2шт.

23

201-115

HYD CONNECTOR,1" - 14 Male ORFS x 3/4" - 16 Male ORB

ADAPTER - straight, 1-14 face seal x 3/4-16 inch O-ring boss

2шт.

24

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end

1шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

26

L129778

TUBE,15.87 mm OD x 122, 63 mm L

main brake valve to brake return hose

1шт.

27

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

28

L129789

HOSE ASSY.

605 mm (23-7/8 inch) long, brake return, Serial Range: tube-tee

1шт.

29

L129780

TUBE,15.87 mm OD

main brake valve to tee

1шт.

30

L128742

SUPPORT

BRACKET - mounting, tube

1шт.

31

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3шт.

32

492-11038

LOCK WASHER,3/8"

2шт.

33

496-21041

WASHER,13/32" x 13/16" x .089", HDN

3шт.

34

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type

1шт.

35

231-1446

NUT,3/8" - 16, Gr 5

1шт.

36

201-415

TEE,1"-14 ORFS

1-14 inch face seal branch x face seal x face seal

1шт.

37

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

38

108168A1

HOSE ASSY.

1670 mm (65-2/4 inch) long, to reservoir, see Fig. 8-60 for fittings to hydraulic reservoir

1шт.

39

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type, Replaces D47782 clamp

1шт.

40

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

41

496-21041

WASHER,13/32" x 13/16" x .089", HDN

1шт.

42

231-1446

NUT,3/8" - 16, Gr 5

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.
