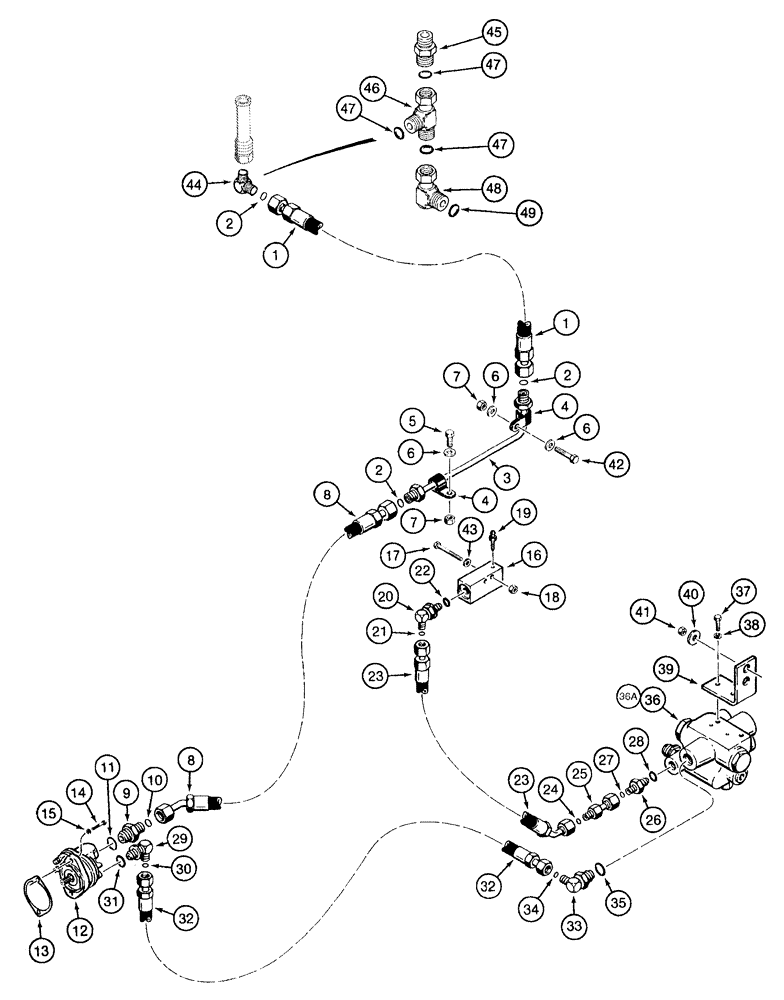

Запчасти Case 921B (7-008) - MAIN BRAKE HYDRAULIC CIRCUIT - RESERVOIR TO PUMP TO ACCUMULATOR VALVE (07) - BRAKES

1

L128500

HOSE ASSY.

500 mm (19-11/16 inch) long, brake motor supply at reservoir

1шт.

2

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

3

L129929

TUBE,15.87 mm OD x 407, 121 mm L

brake motor supply

1шт.

4

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type

2шт.

5

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

6

496-21041

WASHER,13/32" x 13/16" x .089", HDN

3шт.

7

231-1446

NUT,3/8" - 16, Gr 5

2шт.

8

107820A1

HOSE ASSY.

565 mm (23-1/16 inch) long, tube to brake motor, replaces L129657 hose

1шт.

9

201-114

HYD CONNECTOR,1" - 14 Male ORFS x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-14 face seal x 1-5/16-12 inch O-ring boss

1шт.

10

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end

1шт.

11

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss end

1шт.

12

L129931

PUMP

ASSEMBLY - brake, parts list figure 7-24

1шт.

13

1342757C1

GASKET

cover plate

1шт.

14

L125431

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 8.8

hex socket, special, 10 - 1.5 x 35 mm

2шт.

15

892-11010

LOCK WASHER,M10

2шт.

16

L128941

BLOCK ASSY.

MANIFOLD - brake system bleed

1шт.

17

426-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 8

BOLT - hex, 1/4 NC x 2-1/2 inch, grade 8

2шт.

18

231-1444

NUT,1/4"-20, GB

2шт.

19

A41491

BLEEDER,1/4" - 28 x 23.37mm

air bleed

1шт.

20

201-324

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

1шт.

21

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face end

1шт.

23

L129348

HOSE ASSY.

325 mm (12-13/16 inch) long, accumulator, Serial Range: valve-manifold

1шт.

24

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

25

L129403

TUBE,6.35 mm OD x 50 mm L

TUBE - accumulator valve to manifold hose

1шт.

26

201-119

FITTING,9/16" - 18 Male ORFS x 3/4" - 16 Male ORB

ADAPTER - straight, 9/16-18 face seal x 3/4-16 inch O-ring boss

1шт.

27

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face end

1шт.

28

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

29

201-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

ELBOW - 90 degree, 13/16-16 face seal x 7/8-14 inch adj O-ring boss

1шт.

30

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face end

1шт.

31

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

32

L128606

HOSE ASSY.

450 mm (17-3/4 inch) long, pump to accumulator valve

1шт.

33

201-327

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 1-1/16" - 12 Male ORB

90 degree, 13/16-16 face seal x 1-1/16-12 inch adj O-ring boss

1шт.

34

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end

1шт.

35

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss end

1шт.

36

L128116

VALVE

ASSEMBLY - accumulator, parts list figure 7-22, no longer available order 232531A1 valve assembly, item 36A

1шт.

232531A1R

REMAN-HYD VALVE

921B (3/95-), Reman for New P/N L128116

1шт.

232531A1C

CORE-VALVE HYD

Return Number

1шт.

36a

232531A1

VALVE

ASSEMBLY - accumulator, parts list figure 7-23A

1шт.

232531A1R

REMAN-HYD VALVE

921B (3/95-)

1шт.

232531A1C

CORE-VALVE HYD

Return Number

1шт.

37

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

38

492-11038

LOCK WASHER,3/8"

2шт.

39

L129987

BRACKET

mounting, accumulator valve

1шт.

40

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

Hardened

2шт.

41

231-1448

NUT,1/2"-13, GB

hex, self-locking, NC

2шт.

42

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

1шт.

43

495-21031

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

1шт.

44

L129305

FITTING

ELBOW - 90 degree, special, includes O-ring, models with standard steering

1шт.

45

127811A1

FITTING

ADAPTER - special, models with auxiliary steering

1шт.

46

201-418

TEE,1-7/16" - 12 ORFS x 1-7/16" - 12 ORFS x 1-7/16" - 12 ORFS

1-7/16-12 inch face branch x face x swivel face, models with auxiliary steering

1шт.

47

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

3шт.

48

201-368

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1-7/16" - 12 Female ORFS

90 degree, 1-14 face seal x 1-7/16-12 inch swivel face seal, models with auxiliary steering

1шт.

49

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss end

1шт.
