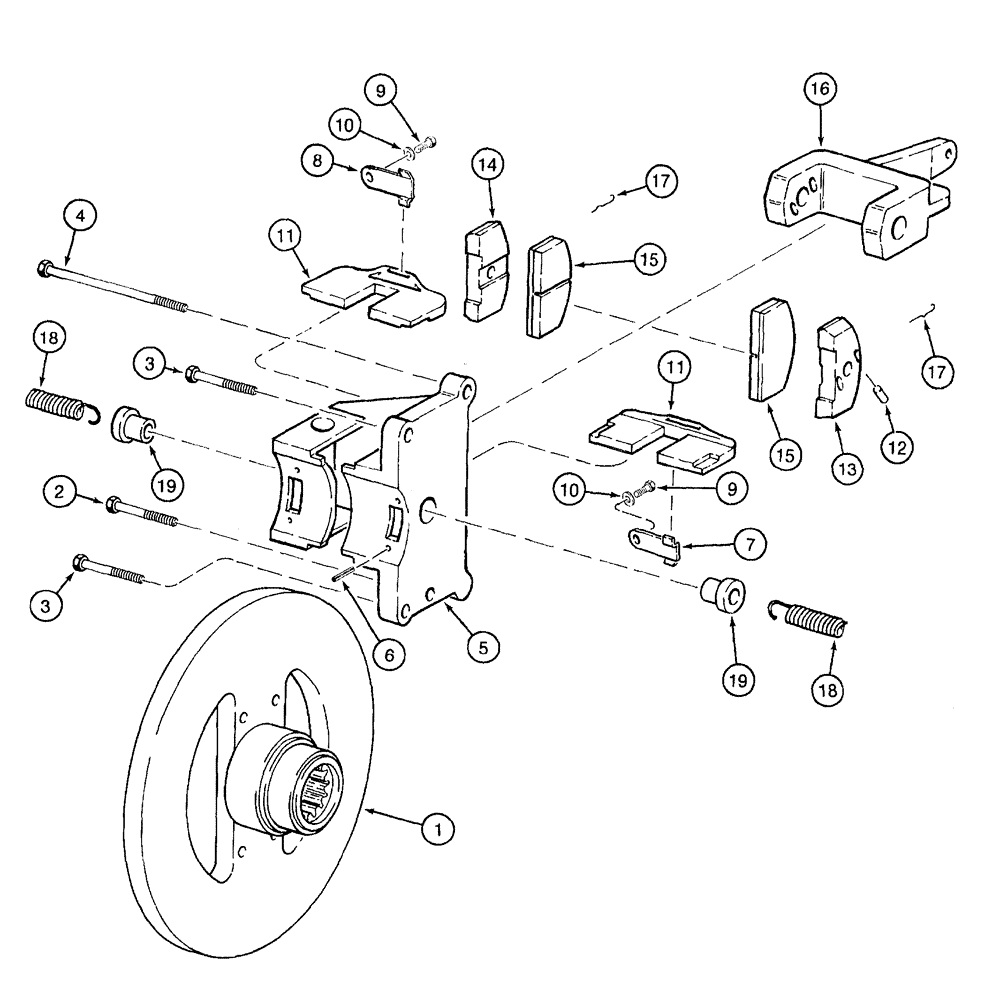

Запчасти Case 921B (7-002) - PARKING BRAKE (07) - BRAKES

114363A1

TRANSMISSION

ASSEMBLY - new, ZF No. 4646 004 027, prior to P.I.N. JEE0052701, parts list figures 6-8 - 6-36, 7-2, and item 4, figure 6-4 and items 4 - 6, figure 6-6.

1шт.

114363A1R

REMAN-TRANSMISSION

921, Model Number 4WG250, Stock Number 4646 004 037

1шт.

114363A1C

CORE-TRANSMISSION

Return Number

1шт.

1

241955A1

TRANSMISSION

ASSEMBLY - new, ZF No. 4646 004 065, P.I.N. JEE0052701 and after, parts list figures 6-8 - 6-36, 7-2 and item 4 on figure 6-4 and items 4 - 6 on figure 6-6.

1шт.

1

241955A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 921B, P.I.N. JEE0052701 & After, Model Number 4WG250, Stock Number 4646 004 066

1шт.

1

241955A1C

CORE-TRANSMISSION

Return Number

1шт.

1

100303A1

BRAKE DISC

DISC, BRAKE YOKE - output flange, parking brake

1шт.

2

100727A1

BOLT

hex, special, 14 - 2 x 40 mm class 10.9

1шт.

3

931211R1

BOLT,Hex, M14 x 2 x 45mm, Cl 8.8, Full Thd

BOLT - hex, special, 14 - 2 x 45 mm

2шт.

4

129788A1

SCREW,Hex, M14 x 210mm, Cl 10.9

BOLT - hex, special

1шт.

S301894

BRAKE ASSY.

parking

1шт.

100314A1

BRAKE CALIPER

CALIPER, BRAKE ASSEMBLY - parking brake, no longer available, order component parts

1шт.

5

100315A1

BRAKE CALIPER

CALIPER, BRAKE fixed

1шт.

6

100316A1

SPLIT PIN/SAFETY PIN

roll

4шт.

7

100317A1

SPRING

locking, front, 114363A1 transmission

1шт.

7

252201A1

SPRING

locking, front, 241955A1 transmission

1шт.

8

100318A1

SPRING

locking, rear, 114363A1 transmission

1шт.

8

252202A1

SPRING

locking, rear, 241955A1 transmission

1шт.

9

613-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

BOLT - hex, 8 - 1.25 x 16 mm

2шт.

10

100319A1

SPRING WASHER

spring, special

2шт.

11

100305A1

LEDGER PLATE

locking

2шт.

12

100307A1

SPLIT PIN/SAFETY PIN

thrust

4шт.

13

100308A1

BLOCK

ACTUATOR - parking brake, front

1шт.

14

100309A1

BLOCK

ACTUATOR - parking brake, rear

1шт.

15

100313A1

FACING

SHOE AND LINING ASSEMBLY - parking brake, components are not serviced separately or available in a kit

2шт.

16

100306A1

LEVER

brake actuating

1шт.

17

100312A1

CLIP

CLIP - spring

2шт.

18

100311A1

SPRING

actuator

2шт.

19

100310A1

SLEEVE

BUSHING - caliper

2шт.
