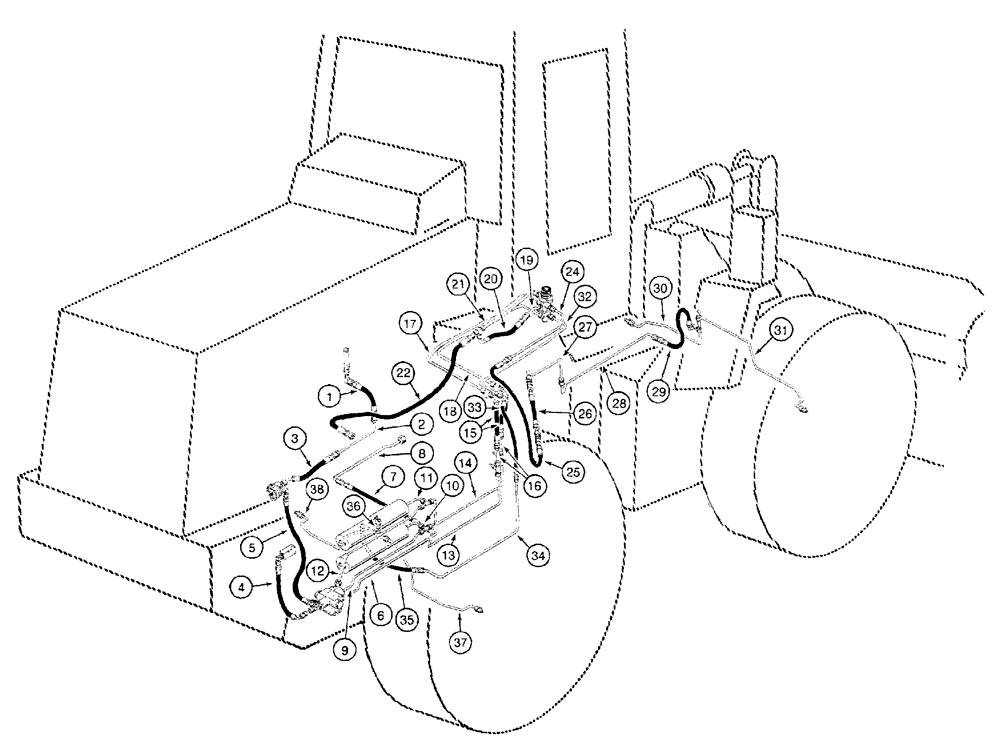

Запчасти Case 921B (1-014) - PICTORIAL INDEX - MAIN BRAKE HYDRAULIC CIRCUIT (00) - PICTORIAL INDEX

1

Hose, brake motor supply at reservoir, page 7-9

1шт.

2

Tube, brake motor supply, page 7-9

1шт.

3

Hose, tube to brake motor, page 7-9

1шт.

4

Hose, accumulator valve to manifold, page 7-9

1шт.

5

Hose, pump to accumulator valve, page 7-9

1шт.

6

Tube, accumulator valve to cooler bypass valve, at accumulator valve, page 7-11

1шт.

7

Hose, tube to tube, page 7-11

1шт.

8

Tube, accumulator valve to cooler bypass valve, at cooler bypass valve, page 7-11

1шт.

9

Tube, accumulator valve to lower accumulator, page 7-11

1шт.

10

Tube, tee to lower accumulator, page 7-11

1шт.

11

Tube, tee to upper accumulator, page 7-11

1шт.

12

Tube, accumulator valve to upper accumulator, page 7-11

1шт.

13

Tube, tee to tee with quick disconnect coupling, lower, page 7-13

1шт.

14

Tube, tee to tee with quick disconnect coupling, upper, page 7-13

1шт.

15

Hose, tubes at accumulator valve to tubes at main brake valve, page 7-13

1шт.

16

Tube, tee with quick disconnect coupling to lower port brake valve hose, page 7-13

1шт.

17

Tube, tee to main brake valve upper port, page 7-15

1шт.

18

Tube, tee to main brake valve lower port, page 7-15

1шт.

19

Tube, main brake valve to brake return hose, page 7-15

1шт.

20

Hose, brake return tube to tee, page 7-15

1шт.

21

Tube, main brake valve to tee, page 7-15

1шт.

22

Hose, to reservoir, page 7-15

1шт.

24

Tube, brake valve upper port to hose, page 7-17

1шт.

25

Hose, tube to adapter, page 7-17

1шт.

26

Hose, adapter to adapter, page 7-17

1шт.

27

Tube, adapter to front chassis, page 7-17

1шт.

28

Tube, front chassis to front brake hose, page 7-17

1шт.

29

Hose, front chassis tube to see, page 7-17

1шт.

30

Tube, brake, left-hand front, page 7-17

1шт.

31

Tube, brake, right-hand front, page 7-17

1шт.

32

Tube, main brake valve to hose, page 7-19

1шт.

33

Hose, main brake valve tube to rear brake tube, page 7-19

1шт.

34

Tube, brake, hose to hose, page 7-19

1шт.

35

Hose, tube to tee, page 7-19

1шт.

36

Tube, hose to tee, page 7-19

1шт.

37

Tube, brake, right-hand rear, page 7-19

1шт.

38

Tube, brake, left-hand rear, page 7-19

1шт.
