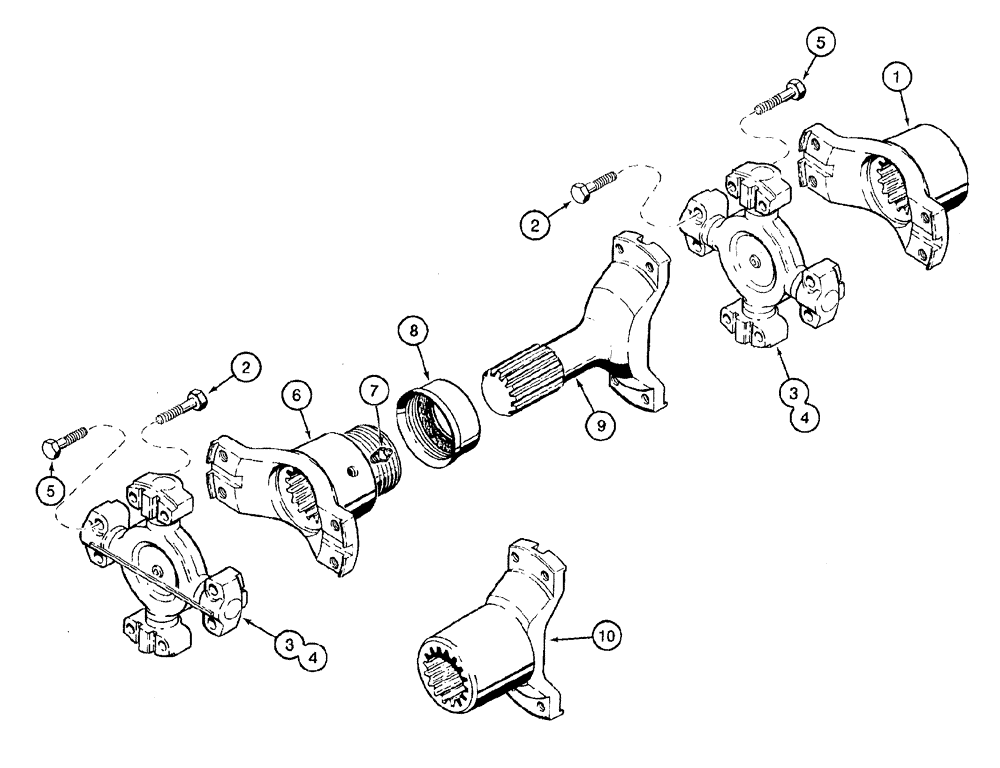

Запчасти Case 921B (6-056) - REAR DRIVE SHAFT (06) - POWER TRAIN

1

REF

INSTRUCTION

FLANGE - transmission to rear drive shaft, see item 4 on figure 6-28

1шт.

2

328-832

BOLT,Hex, 1/2" - 20 x 2", Gr 8

8шт.

L127797

SHAFT ASSY.

drive, rear axle

1шт.

S301993

BEARING ASSY,6.88" ID x 8.5" OD x 1.94"

KIT - universal joint, journal and bearing

2шт.

3

NSS

NOT SOLD SEPARAT

JOURNAL - universal joint

1шт.

4

NSS

NOT SOLD SEPARAT

RACE - bearing

4шт.

5

S301992

SCREW

BOLT - hex, special

4шт.

117690A1

YOKE

ASSEMBLY - slip, axle end, replaces S301996 yoke assembly

1шт.

6

NSS

NOT SOLD SEPARAT

YOKE - slip

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

8

S301995

SEAL ASSY.

CAP - dust, drive shaft, includes washer and seal which are not serviced separately

1шт.

9

S302023

JAW

YOKE - spline, transmission end

1шт.

10

REF

INSTRUCTION

FLANGE - rear drive shaft to rear axle, see item 2 on figure 6-46

1шт.
