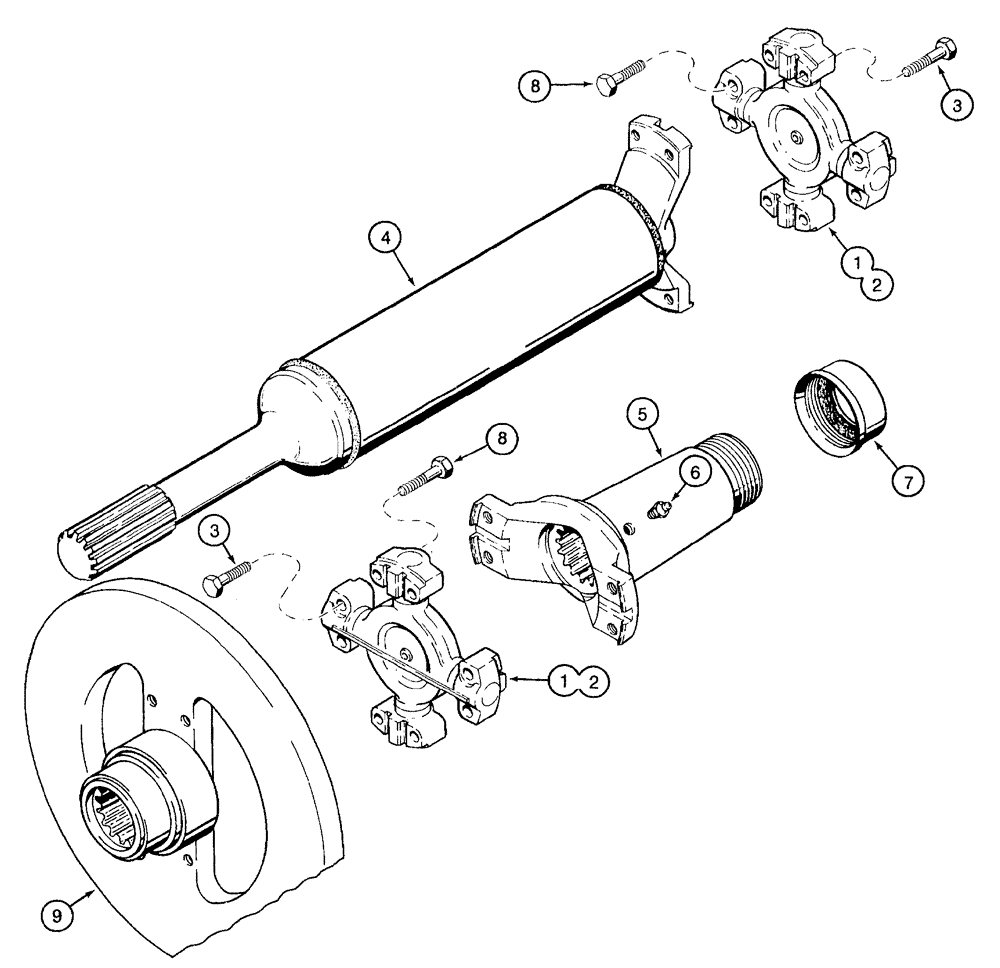

Запчасти Case 921B (6-054) - CENTER DRIVE SHAFT (06) - POWER TRAIN

108758A1

DRIVE SHAFT

SHAFT ASSEMBLY - drive

1шт.

S301993

BEARING ASSY,6.88" ID x 8.5" OD x 1.94"

KIT - universal joint, journal and bearing

2шт.

1

NSS

NOT SOLD SEPARAT

JOURNAL - universal joint

1шт.

2

NSS

NOT SOLD SEPARAT

RACE - bearing

4шт.

3

S301992

SCREW

BOLT - hex, special

4шт.

4

117786A1

YOKE

UNIVERSAL JOINT YOKE spline, axle end

1шт.

117788A1

YOKE

ASSEMBLY - slip, transmission end

1шт.

5

NSS

NOT SOLD SEPARAT

YOKE - slip

1шт.

6

219-11

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 15/16 inch

1шт.

7

117789A1

CAP

dust, drive shaft, includes washer and seal which are not serviced separately

1шт.

8

328-832

BOLT,Hex, 1/2" - 20 x 2", Gr 8

8шт.

9

REF

INSTRUCTION

DISC - output flange, center drive shaft to transmission, see item 19 on figure 6-28 and item 1 on figure 7-2.

1шт.
