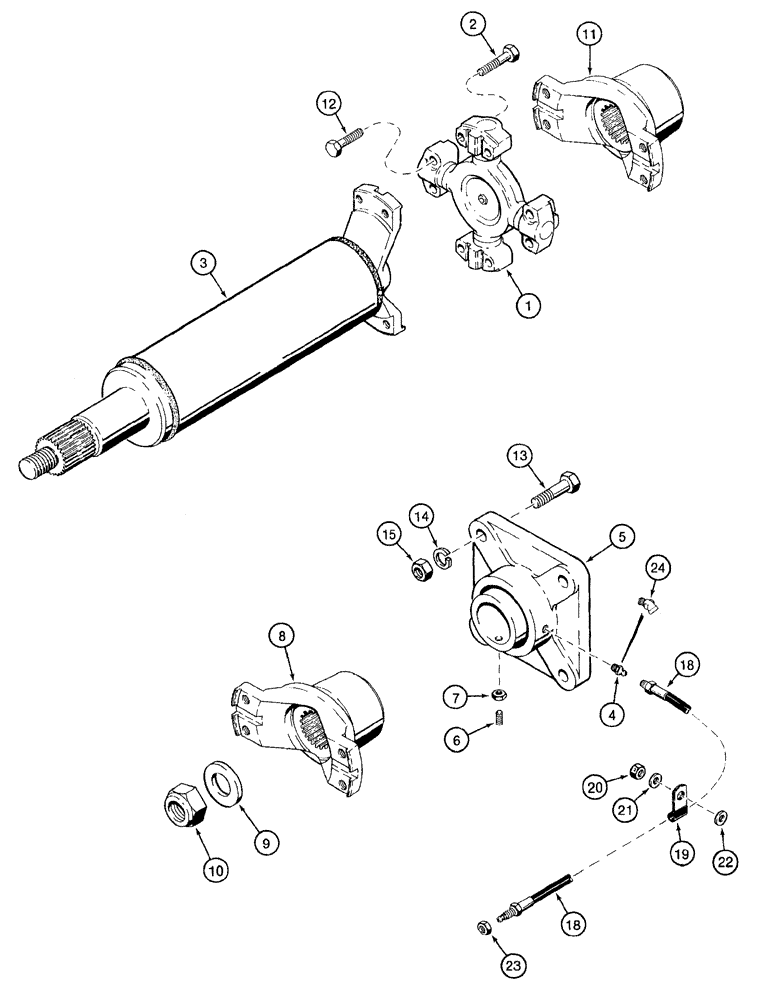

Запчасти Case 921B (6-052) - FRONT DRIVE SHAFT AND SUPPORT BEARING (06) - POWER TRAIN

L127795

SHAFT

ASSEMBLY - drive, front axle

1шт.

S301993

BEARING ASSY,6.88" ID x 8.5" OD x 1.94"

KIT - universal joint, journal and race

1шт.

1

NSS

NOT SOLD SEPARAT

JOURNAL AND RACE - universal joint

1шт.

2

S301992

SCREW

BOLT - hex, special

4шт.

3

S301990

TUBE

YOKE AND - drive shaft, axle end

1шт.

S301991

BEARING CARRIER,3"

SUPPORT ASSEMBLY - front drive shaft

1шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

If used

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING - bearing

1шт.

6

84-64412

SET SCREW,Hex Soc, 7/16"-20 x 3/4"

set, hex socket headless, 7/16 NF x 3/4 inch, half dog point

1шт.

7

25-157

JAM NUT,Jam, 7/16"-20, G5

hex, jam, 7/16 inch NF

1шт.

8

90-7379T1

YOKE

UNIVERSAL JOINT YOKE shaft, to center bearing

1шт.

9

396-11131

WASHER,1 5/16" x 2 1/2" x .150"

Hardened

1шт.

10

131-487

LOCK NUT,1 1/4"-18

heavy hex, self-locking, 1-1/4 - 18 inch

1шт.

11

REF

INSTRUCTION

FLANGE - companion, drive shaft to front axle, see item 2, figure 6-42

1шт.

12

328-832

BOLT,Hex, 1/2" - 20 x 2", Gr 8

8шт.

13

426-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

4шт.

14

492-11062

BEARING WASHER,5/8"

4шт.

15

425-1010

NUT,5/8"-11, G5

4шт.

18

L54693

HOSE

686 mm (27 inch) long, lubrication

1шт.

19

49832

CLAMP

P-type, 5/1 6 inch ID

1шт.

20

231-1446

NUT,3/8" - 16, Gr 5

1шт.

21

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

1шт.

22

495-21056

WASHER,1/2"

flat, 9/16 x 1-3/8 x 7/64 inch

1шт.

23

F53473

LOCK NUT,1/8-27 NPSM

special, lubrication hose

1шт.

24

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

Street

1шт.
