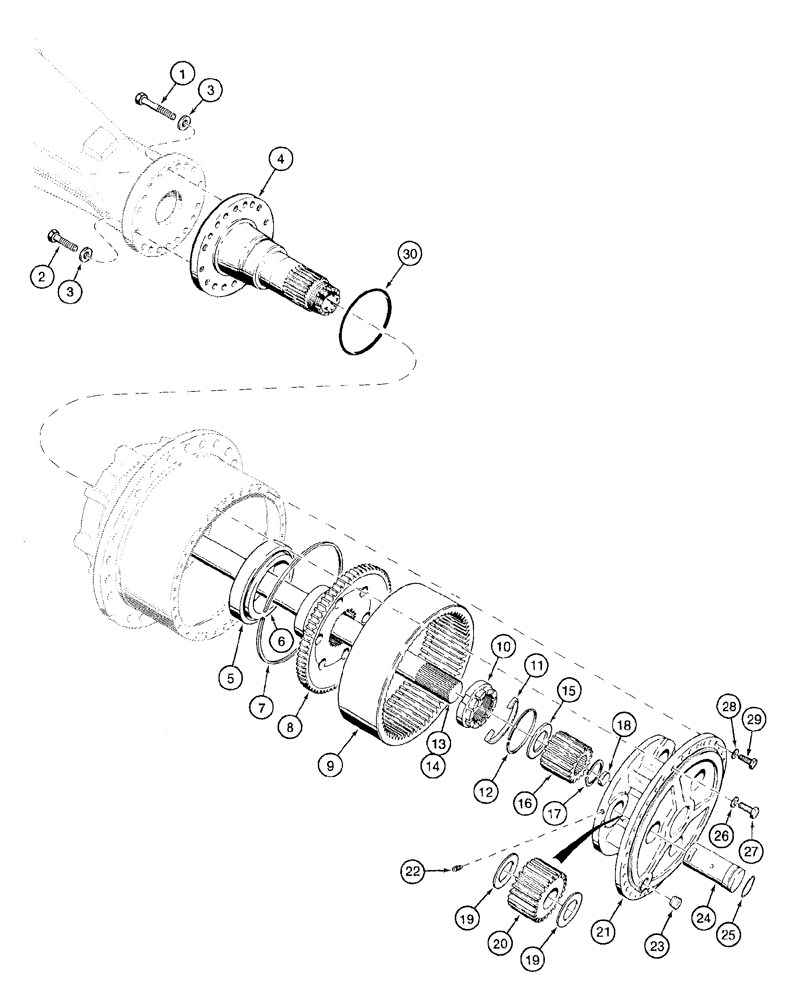

Запчасти Case 921B (6-050) - FRONT AND REAR AXLE PLANETARY (06) - POWER TRAIN

L129886

AXLE HOUSING

ASSEMBLY - front, inludes items 1 - 4 on figure 6-38 and parts lists on figures 6-42, 6-50 and 7-4

1шт.

L129887

AXLE HOUSING

ASSEMBLY - rear, if used, includes items 1 - 9 on figure 6-40 and parts lists on figures 6-46 - 6-50 and 7-4

1шт.

L129888

AXLE HOUSING

ASSEMBLY - rear, with no-spin differential, if used, includes items 1 - 9 on figure 6-40 and parts lists on figures 6-46 - 6-50, and 7-4

1шт.

1

S301734

BOLT

special, axle housing to brake piston housing

24шт.

2

S301735

BOLT

special, axle housing to brake piston housing

12шт.

3

S301733

WASHER

flat, special

36шт.

4

S301732

HUB

SPINDLE - axle

2шт.

S301714

BEARING ASSY

KIT

2шт.

5

NSS

NOT SOLD SEPARAT

CUP - bearing

1шт.

6

NSS

NOT SOLD SEPARAT

BEARING - tapered roller

1шт.

7

N6230

RING, SNAP

RING SNAP RETAINER - gear

2шт.

8

S301712

GEAR

HUB - ring gear

2шт.

9

S301711

PINION

GEAR - ring, planetary

2шт.

10

N7081

NUT

special, ring gear hub

2шт.

11

N6233

RING, SNAP

RING SNAP lock, use two per spindle

4шт.

12

N6234

NUT

retaining, hub nut

2шт.

13

S301750

SHAFT

axle, long, front or rear axle

1шт.

14

S301749

SHAFT

axle, short, front or rear axle

1шт.

15

N6261

WASHER

thrust, sun gear

2шт.

16

S301751

GEAR

sun, planetary

2шт.

17

S301707

CIRCLIP

RING - snap, sun gear

2шт.

18

D74467

PLUG

thrust

2шт.

19

N6261

WASHER

thrust, pinion gear

12шт.

20

S301705

PINION

GEAR - planetary pinion

6шт.

21

N6238

GEAR WHEEL

CARRIER - planetary

2шт.

22

N6241

SET SCREW,M10 x 1.5 x 1.5mm, Gr 8.8

set, special

6шт.

23

D74516

PLUG

drain

2шт.

24

N6240

SHAFT

pinion

6шт.

25

N6262

O-RING,54.5mm ID x 3mm Width

shaft seal

6шт.

26

D74509

WASHER

flat, special

2шт.

27

804-14035

BOLT,Hex, M14 x 2 x 35mm, Cl 10.9

BOLT - hex, self-locking, 14 - 2.0 x 35 mm, class 10.9

2шт.

28

D74508

WASHER

flat, special

70шт.

29

804-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9

BOLT - hex, self-locking, 12 - 1.75 x 35 mm, class 10.9

70шт.

30

S301736

O-RING,259.3mm ID x 5.7mm Width

axle spindle

2шт.
