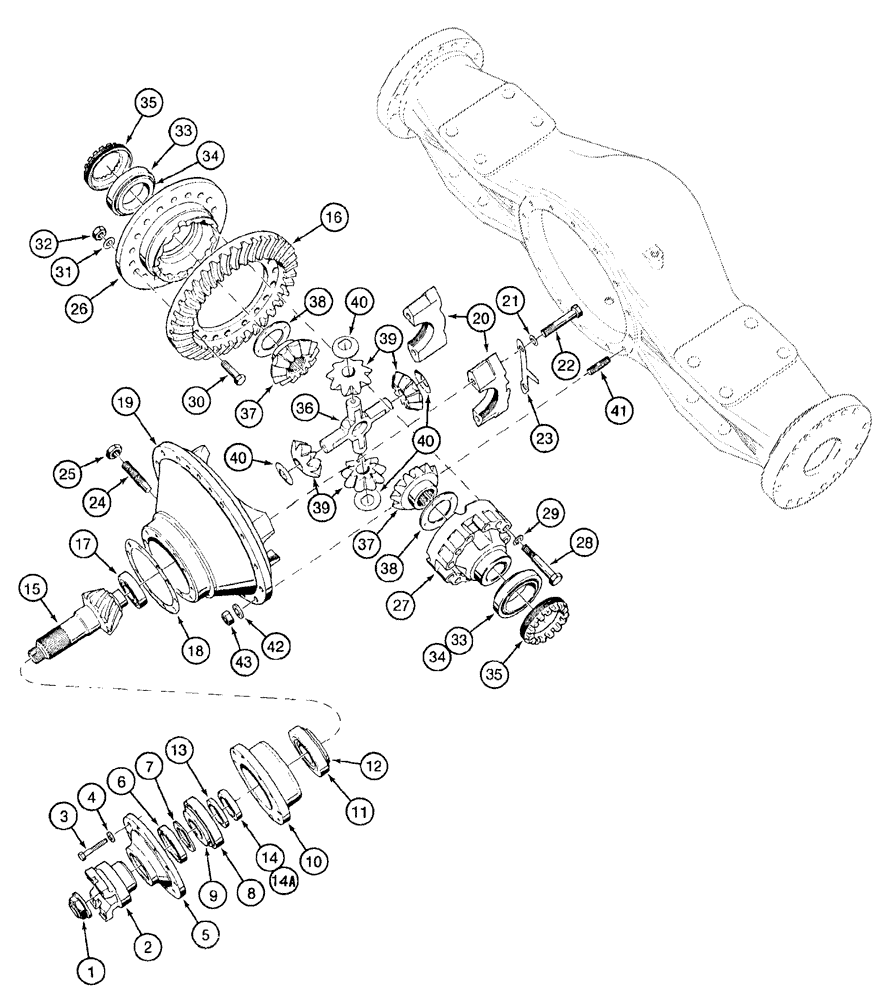

Запчасти Case 921B (6-042) - FRONT AXLE DIFFERENTIAL AND CARRIER (06) - POWER TRAIN

L129886

AXLE HOUSING

ASSEMBLY - front, includes items 1 - 4 on figure 6-38 and parts list on figure 6-50, and 7-4

1шт.

100056A1

DIFFERENTIAL

ASSEMBLY - axle

1шт.

1

S301756

FLANGE NUT

special, flange

1шт.

2

S301757

FLANGE

coupling

1шт.

3

S301807

LOCK BOLT

BOLT - pinion cage

10шт.

4

D74508

WASHER

flat, special

10шт.

5

S301809

RETAINER

COVER - pinion shaft

1шт.

6

S301806

OIL SEAL

SEAL - oil, pinion shaft

1шт.

7

S301805

WASHER

flat, special

1шт.

S301808

CAGE

ASSEMBLY - pinion shaft

1шт.

S301804

BEARING ASSY,61.92mm ID x 146.06mm OD x 41.38mm W

KIT - cup and bearing, outer

1шт.

8

NSS

NOT SOLD SEPARAT

CUP - bearing

1шт.

9

NSS

NOT SOLD SEPARAT

BEARING - tapered roller

1шт.

104515A1

CYLINDER END CAP

CAGE ASSEMBLY - pinion shaft, includes items 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

CAGE - pinion shaft

1шт.

11

NSS

NOT SOLD SEPARAT

CUP - bearing

1шт.

100394A1

BEARING ASSY

KIT - and cup, includes items 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

CUP - bearing

1шт.

12

NSS

NOT SOLD SEPARAT

BEARING - tapered roller

1шт.

13

S301803

SPACER

12.000 mm thick

1шт.

14

S301793

SPACER

15.675 mm thick

1шт.

14a

S301790

SPACER

15 mm thick

1шт.

Item 14a spacers are not included in the differential assembly but may be purchased separately as optional spacers.

1шт.

14a

S301791

SPACER

15.225 mm thick

1шт.

Item 14a spacers are not included in the differential assembly but may be purchased separately as optional spacers.

1шт.

14a

S301792

SPACER

15.450 mm thick

1шт.

Item 14a spacers are not included in the differential assembly but may be purchased separately as optional spacers.

1шт.

14a

S301794

SPACER

11.4 mm thick

1шт.

Item 14a spacers are not included in the differential assembly but may be purchased separately as optional spacers.

1шт.

14a

S301795

SPACER

11.425 mm thick

1шт.

Item 14a spacers are not included in the differential assembly but may be purchased separately as optional spacers.

1шт.

14a

S301796

SPACER

11.450 mm thick

1шт.

Item 14a spacers are not included in the differential assembly but may be purchased separately as optional spacers.

1шт.

14a

S301797

SPACER

11.475 mm thick

1шт.

Item 14a spacers are not included in the differential assembly but may be purchased separately as optional spacers.

1шт.

14a

S301798

SPACER

11.5 mm thick

1шт.

Item 14a spacers are not included in the differential assembly but may be purchased separately as optional spacers.

1шт.

14a

S301799

SPACER

11.525 mm thick

1шт.

Item 14a spacers are not included in the differential assembly but may be purchased separately as optional spacers.

1шт.

14a

S301800

SPACER

11.55 mm thick

1шт.

Item 14a spacers are not included in the differential assembly but may be purchased separately as optional spacers.

1шт.

14a

S301801

SPACER

11.575 mm thick

1шт.

Item 14a spacers are not included in the differential assembly but may be purchased separately as optional spacers.

1шт.

14a

S301802

SPACER

11.6 mm thick

1шт.

Item 14a spacers are not included in the differential assembly but may be purchased separately as optional spacers.

1шт.

100052A1

GEAR SET

BEVEL GEAR AND PINION - differential

1шт.

15

NSS

NOT SOLD SEPARAT

SHAFT - pinion, differential

1шт.

16

NSS

NOT SOLD SEPARAT

GEAR - ring, differential

1шт.

17

319393A1

BALL BEARING,44.99mm ID x 100mm OD x 25mm W

ball, pinion shaft, replaces S301787 bearing

1шт.

18

S301761

SHIM,0.076mm Thk

(.003")

1шт.

18

S301762

SHIM,0.127mm Thk

(.005")

1шт.

18

S301763

SHIM,0.254mm Thk

(.010")

1шт.

129472A1

DIFFERENTIAL ASSY

CARRIER

1шт.

19

NSS

NOT SOLD SEPARAT

HOUSING - carrier

1шт.

20

NSS

NOT SOLD SEPARAT

CAP - bearing

2шт.

21

S301810

WASHER

flat, special

4шт.

22

S301811

BOLT

BOLT - hex, special, 16 - 2 x 90 mm class 10.9

4шт.

23

S301781

PLATE

lock

2шт.

24

N6213

SCREW,M22 x 2.5 x 2.5mm

STUD - carrier housing

1шт.

25

N6255

LOCK NUT

self-locking, special

1шт.

S301768

CAGE

HOUSING ASSEMBLY - differential

1шт.

26

NSS

NOT SOLD SEPARAT

HOUSING - flange half

1шт.

27

NSS

NOT SOLD SEPARAT

HOUSING - plain half

1шт.

28

S301782

BOLT

hex, special, differential housing

12шт.

29

S300312

WASHER

flat, special, differential housing

12шт.

30

S301767

BOLT

special, ring, Serial Range: gear-housing

18шт.

31

D74504

WASHER

flat, special

18шт.

32

S300311

NUT

hex, special

18шт.

S301453

BEARING ASSY

KIT - and cup, no longer available, order items 33 and 34

2шт.

33

ST982

BEARING CUP

CUP

1шт.

34

A52289

ROLLER BEARING,3.8125" ID x 1.1406"

tapered roller

1шт.

35

S301770

RING

adjusting

2шт.

36

S301784

DIFF. SPIDER

1шт.

37

S301772

GEAR

side

2шт.

38

S301783

WASHER

thrust, side gear

2шт.

39

S301785

PINION

GEAR

4шт.

40

S301786

WASHER

thrust, pinion

4шт.

41

S301780

STUD

carrier, to axle housing

14шт.

42

D74504

WASHER

flat, special

14шт.

43

S300311

NUT

hex, special

14шт.

25

N6255

LOCK NUT

self-locking, special

1шт.
