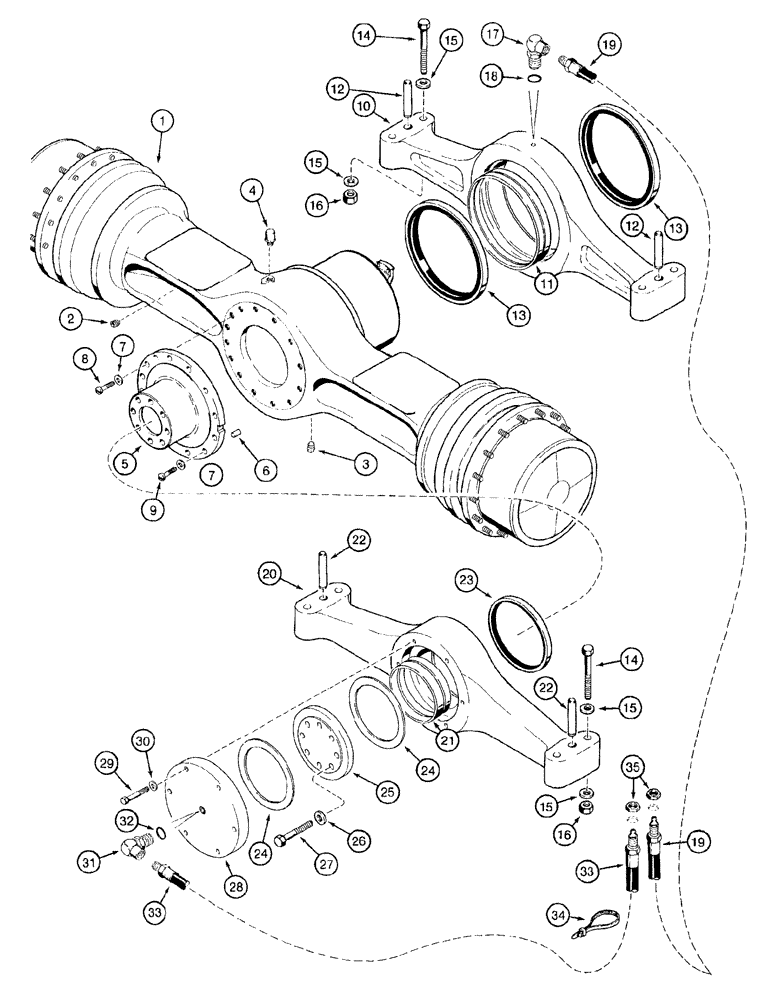

Запчасти Case 921B (6-040) - REAR AXLE MOUNTING AND HOUSING (INCLUDES TRUNNIONS AND LUBRICATION LINES) (06) - POWER TRAIN

L129887

AXLE HOUSING

ASSEMBLY - rear , if used, includes items 1-9 on this figure and parts lists on figures 6-46 - 6-50 and 7-4

1шт.

L129888

AXLE HOUSING

ASSEMBLY - rear, with no-spin differential, if used, includes items 1 - 9 on this figure and parts list from figures 6-46 - 6-50 and 7-4

1шт.

1

S301773

HOUSING

rear axle

1шт.

2

K12362

PLUG

housing

1шт.

3

S300819

PLUG

drain

1шт.

4

S301626

PLUG

BREATHER - axle

1шт.

5

S301774

HOUSING

trunnion suspension

1шт.

6

S301777

DOWEL

PIN - dowel, suspension housing to axle housing

2шт.

7

D74504

WASHER

flat, special

14шт.

8

S301775

LOCK BOLT

set, special

2шт.

9

S301776

SCREW

set, special

12шт.

10

188309A1

TRUNNION

ASSEMBLY - axle mounting, front

1шт.

11

105888A1

BUSHING,275.31mm ID x 287.97mm OD x 55mm L

front axle trunnion

1шт.

12

37-11236

DOWEL,3/4" x 2 1/4"

PIN - dowel, 3/4 x 2-1/4 inch, hardened

2шт.

13

L128290

OIL SEAL,274.83mm ID x 305.18mm OD x 14.99mm Thk

front trunnion

2шт.

14

26-14112

BOLT,Hex, 7/8" - 9 x 7", Gr 8

BOLT - hex, 7/8 NC x 7 inch, grade 8

8шт.

15

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

16шт.

16

329-1014

NUT,7/8"-9, G8

8шт.

17

218-5450

ELBOW,90 Degree, 7/16"-20 ORB x 1/8" NPT Fem

1шт.

18

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

19

L54694

HOSE,4.8mm ID x 1041mm L

1041 mm (41 inch) long, lubrication, front trunnion, no longer available, order R45862 hose, item 19A and 219-8 fitting, item 19B

1шт.

19a

R45862

HOSE,3.17mm ID x 1041.4mm L, SAE 100R7

1041 mm (41 inch) long, lubrication, front trunnion, not shown

1шт.

19b

219-8

LUBE NIPPLE,1/4" - 28 NPTF

Not shown

1шт.

20

113951A1

TRUNNION

ASSEMBLY - axle mounting, rear

1шт.

21

105887A1

BUSHING,170.23mm ID x 182.78mm OD x 64mm L

rear axle trunnion

1шт.

22

37-11236

DOWEL,3/4" x 2 1/4"

PIN - dowel, 3/4 x 2-1/4 inch, hardened

2шт.

23

700708000

SEAL

rear trunnion, replaces L128291 seal

1шт.

24

L128209

WASHER,172.2mm ID x 216mm OD x 5mm Thk

thrust, rear trunnion

2шт.

25

L128277

SPACER

rear, Serial Range: trunnion-cover

1шт.

26

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

Hardened

8шт.

27

827-16075

BOLT,Hex, M16 x 2 x 75mm, Cl 10.9

8шт.

28

L128278

COVER

rear trunnion

1шт.

29

426-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

6шт.

30

187563A1

SPACER

13 x 25 x 28 mm

6шт.

31

218-5450

ELBOW,90 Degree, 7/16"-20 ORB x 1/8" NPT Fem

1шт.

32

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

33

L72667

HOSE

1524 mm (60 inch) long, lubrication, rear trunnion

1шт.

34

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

35

F53473

LOCK NUT,1/8-27 NPSM

special, lubrication hose

2шт.
