Запчасти Case 921B (6-038) - FRONT AXLE MOUNTING AND HOUSING (06) - POWER TRAIN

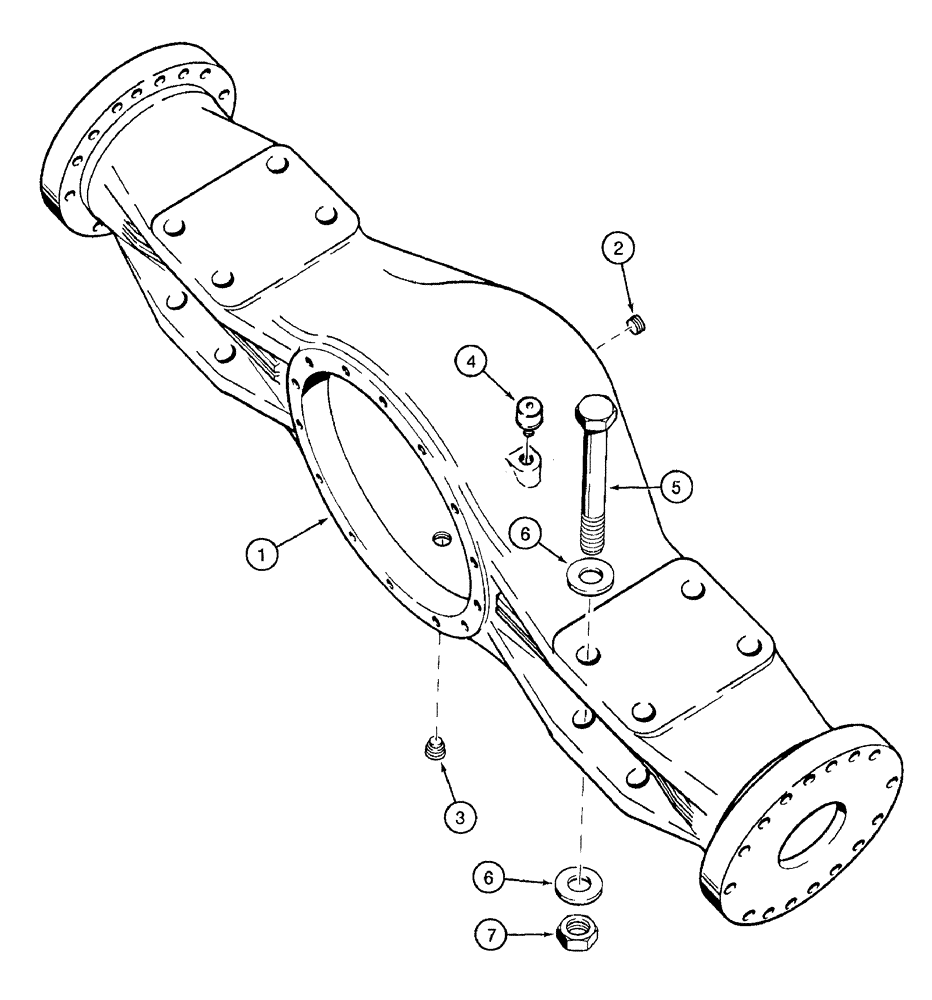

Схема запчастей Case 921B - (6-038) - FRONT AXLE MOUNTING AND HOUSING (06) - POWER TRAIN
3
1
6
6
7
4
2
5

Артикул

Название

Примечание

Количество

L129886

AXLE HOUSING

ASSEMBLY - front, includes iems 1-4 on this figure and parts listed on figures 6-42, 6-50, and 7-4

1шт.

1

S301812

HOUSING

front axle

1шт.

2

K12362

PLUG

housing

1шт.

3

S300819

PLUG

dram

1шт.

4

S301626

PLUG

BREATHER - axle

1шт.

5

28-20200

BOLT,Hex, 1-1/4" - 12 x 12-1/2", Gr 8

hex, 1-1/4 NF x 12-1/2 inch, grade 8

8шт.

6

396-31131

WASHER,1 3/8" x 2 1/2" x 1/4", HDN

flat, 1-3/8 x 2-1/2 x 1/4 inch, hardened

16шт.

7

29-1120

NUT,1 1/4"-12, G8

hex, 1-1/4 inch NF, grade 8

8шт.

Выбрано товаров: 8
