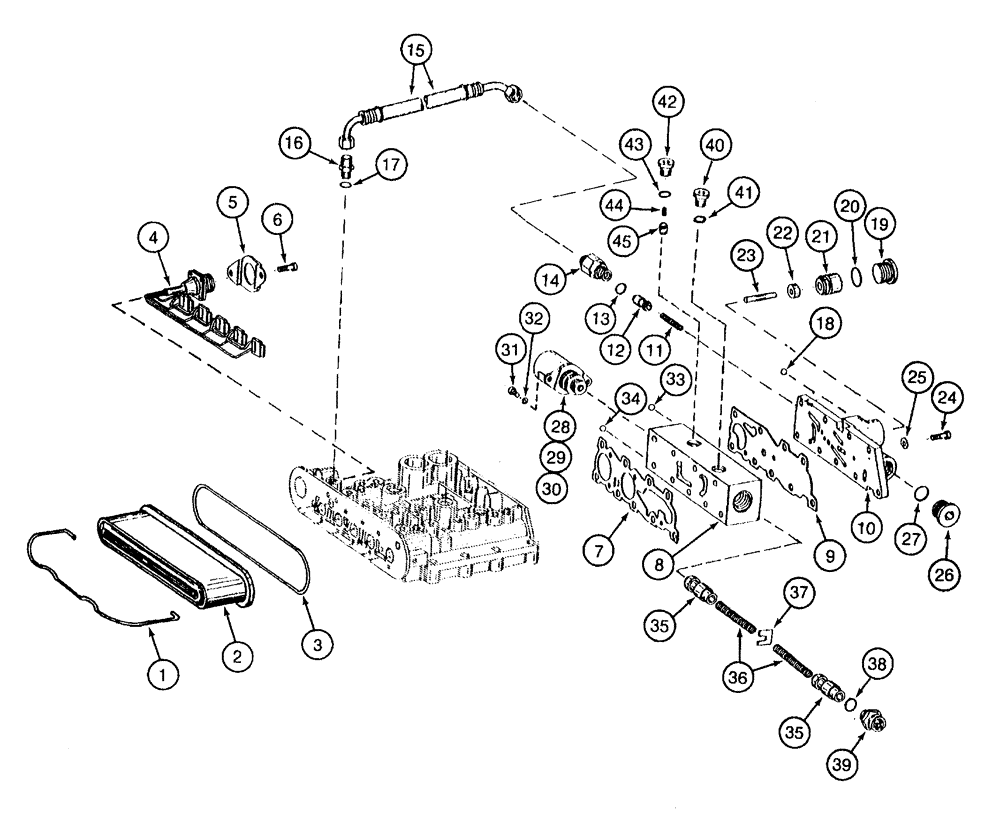

Запчасти Case 921B (6-037[A]) - TRANSMISSION ASSEMBLY - CONTROL VALVE - 241955A1 TRANSMISSION P.I.N. JEE0052701 AND AFTER (06) - POWER TRAIN

241955A1

TRANSMISSION

ASSEMBLY - new, ZF No. 4646 004 065, see figure 6-4 for parts list information.

1шт.

241955A1R

REMAN-TRANSMISSION

Remanufactured Transmission; For N.A. only; 921B, P.I.N. JEE0052701 & After, Model Number 4WG250, Stock Number 4646 004 066

1шт.

241955A1C

CORE-TRANSMISSION

Return number - For N.A. only

1шт.

250656A1

VALVE

ASSEMBLY - transmission control, includes all items on this figure and figure 6-34

1шт.

1

100361A1

CLAMP

wire, solenoid cover

1шт.

2

129808A1

COVER

solenoid

1шт.

3

129809A1

O-RING,159.2mm ID x 5.7mm Width

solenoid cover

1шт.

4

100357A1

HARNESS

transmission control valve

1шт.

5

100359A1

LARGE PLATE

PLATE, LARGE BRACKET - harness mounting

1шт.

6

199064A1

SCREW

cap

2шт.

7

249919A1

GASKET

control valve body to solenoid housing

1шт.

8

249921A1

HOUSING

solenoid valve

1шт.

9

249922A1

GASKET

solenoid housing to front cover

1шт.

10

100362A1

HOUSING

COVER - valve, front

1шт.

11

100368A1

COMPRESSION SPRING

relief spool

1шт.

12

100366A1

PISTON

SPOOL - relief

1шт.

13

100369A1

O-RING,9.5mm ID x 2mm Width

plug

1шт.

14

237315A1

CONNECTION,ELECTRIC

ADAPTER - special, hose to front cover

1шт.

15

249920A1

HOSE

front cover to control valve body

1шт.

16

242138A1

LOOM

ADAPTER - special, control valve, Serial Range: body-hose

1шт.

17

S300491

O-RING,8mm ID x 1.5mm Width

special, adapter

1шт.

18

S300552

BALL

valve

9шт.

19

S301601

PLUG

hex, special

1шт.

20

S301602

O-RING,2mm Thk x 17mm ID

0-RING - plug

1шт.

21

131082A1

PISTON

21.0 mm

1шт.

21

100365A1

PISTON

21.5 mm

1шт.

22

S301604

SHIM

2.0 mm thick

1шт.

22

S301605

SHIM

3.0 mm thick

1шт.

22

S301606

SHIM

4.0 mm thick

1шт.

22

S301607

SHIM

6.0 mm thick

1шт.

22

S301608

SHIM

8.0 mm thick

1шт.

23

250684A1

PIN

PLUNGER - valve

1шт.

24

864-6060

HEX SOC SCREW,M6 x 60mm, Cl 8.8

BOLT - hex socket, 6 - 1.0 x 60 mm

9шт.

25

3078026R1

WASHER,M6.4

flat, special

9шт.

26

129792A1

PLUG

hex socket, special, 18 x 1.5 mm

1шт.

27

106970A1

SEALING RING

SEAL - plug

1шт.

28

249923A1

SOLENOID VALVE

VALVE ASSEMBLY - solenoid

1шт.

29

102459A1

O-RING

small, not shown

1шт.

30

102460A1

O-RING,1.5mm Thk x 21mm ID

large, not shown

2шт.

31

864-5010

HEX SOC SCREW,M5 x 10mm, Cl 8.8

2шт.

32

892-11005

LOCK WASHER,M5

2шт.

33

S300552

BALL

valve

4шт.

34

785759R1

BALL

valve

1шт.

35

100349A1

PISTON

SPOOL - solenoid valve

2шт.

36

S300540

COMPRESSION SPRING

spool

2шт.

37

100348A1

LARGE PLATE

PLATE, LARGE SEAT - spring

1шт.

38

100080A1

O-RING,2mm Thk x 19mm ID, 70 Duro

switch

1шт.

39

249885A1

SOLENOID SWITCH

SWITCH - solenoid valve

1шт.

40

A52230

PLUG

hex socket, 10 mm - 1

1шт.

41

S300491

O-RING,8mm ID x 1.5mm Width

special, plug

1шт.

42

100367A1

PLUG

hex socket, special

1шт.

43

100369A1

O-RING,9.5mm ID x 2mm Width

plug

1шт.

44

249925A1

SPRING

valve

1шт.

45

249924A1

PISTON

SPOOL - valve

1шт.
