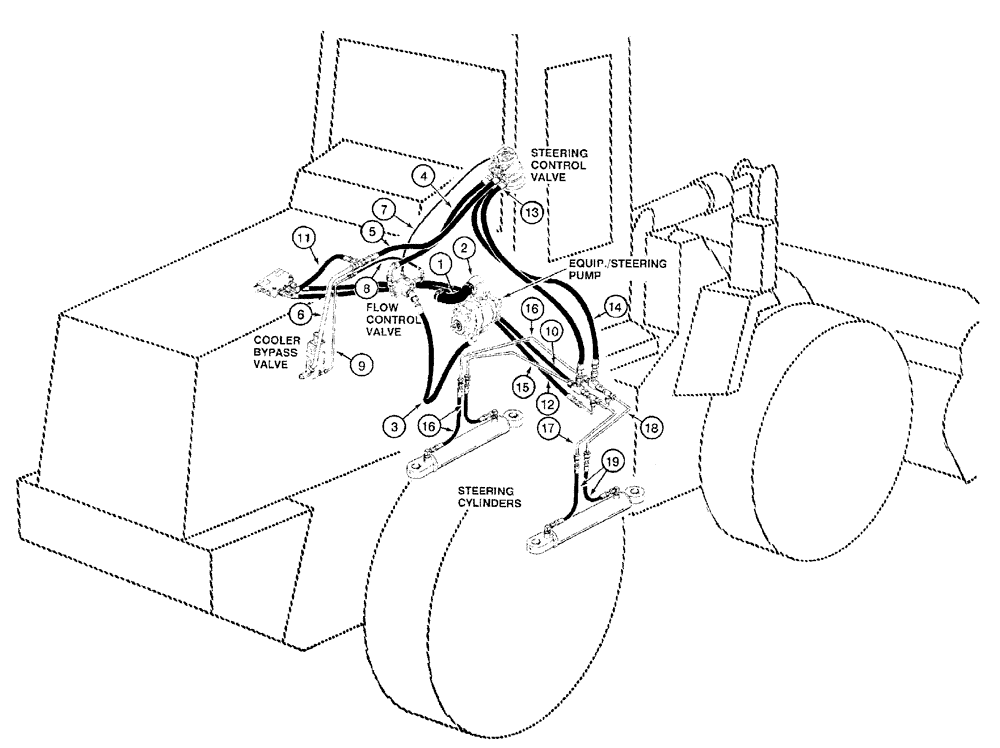

Запчасти Case 921B (1-012) - PICTORIAL INDEX - STEERING HYDRAULIC CIRCUIT (00) - PICTORIAL INDEX

1

Suction hose, hydraulic reservoir to pump, page 8-9

1шт.

2

Suction tube, hydraulic reservoir to pump, page 8-9

1шт.

3

Hose, pump to flow control valve, page 5-5

1шт.

4

Hose, flow control valve to steering control valve, page 5-7

1шт.

5

Hose, tube at cooler bypass valve to steering control valve, page 5-7

1шт.

6

Tube, cooler bypass valve to steering control valve hose, page 5-7

1шт.

7

Hose, load sensing, flow control valve to steering control valve, page 5-7

1шт.

8

Hose, flow control valve to drain tube at cooler bypass valve, page 5-7

1шт.

9

Tube, flow control valve drain, page 5-7

1шт.

10

Hose, tee at pressure and return lines to cushion valve, page 5-9

1шт.

11

Hose, cushion valve to tube at tee to steering cylinders and steering control valve, page 5-9

1шт.

12

Tube, hose from cushion valve to tee, page 5-9

1шт.

13

Hose, elbow at steering control valve to tube, page 5-13

1шт.

14

Hose, adapter at steering control valve to tube, page 5-13

1шт.

15

Tube, tee to left-hand cylinder, rod end, page 5-13

1шт.

16

Tube, tee to left-hand cylinder, closed end, page 5-13

1шт.

17

Tube, tee to right-hand cylinder, closed end, page 5-13

1шт.

18

Tube, tee to right-hand cylinder, rod end, page 5-13

1шт.

19

Hose, tubes to cylinders, page 5-13

1шт.
