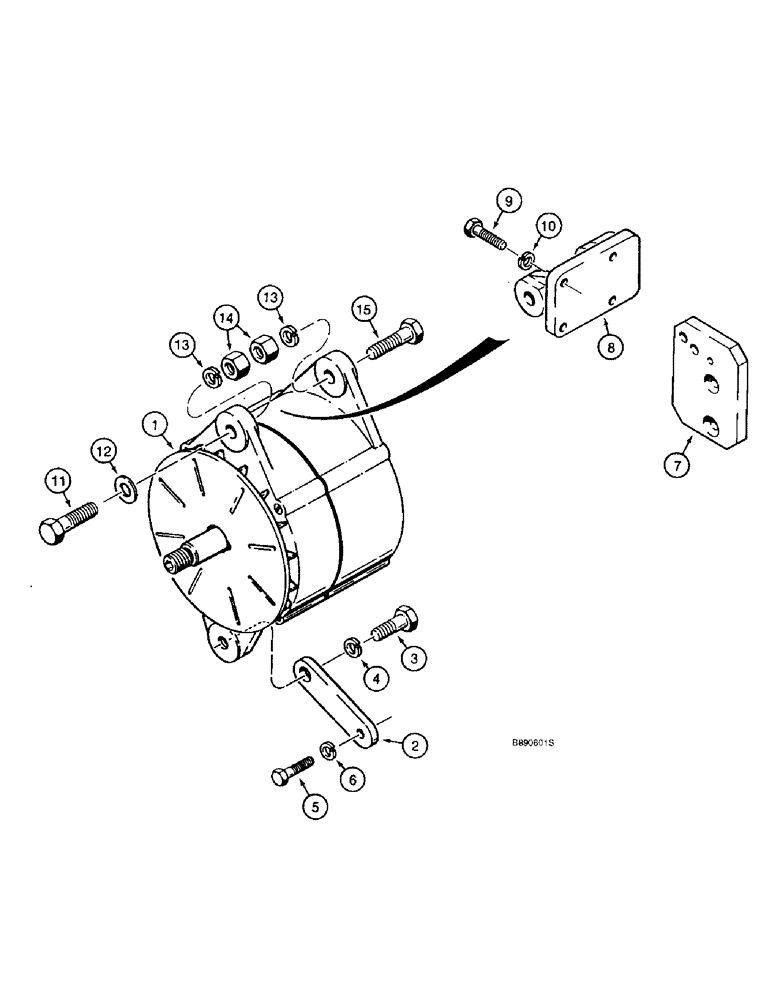

Запчасти Case 821B (4-40) - 65 AMP ALTERNATOR AND MOUNTING PARTS (04) - ELECTRICAL SYSTEMS

1

1964860C1

ALTERNATOR,24V, 60A, W/O Pulley

ALTERNATOR ASSEMBLY - 24 volt, 65 ampere, Robert Bosch part number 0120468054, parts list Fig. 4-2

1шт.

1

1964860C1GV

ALTERNATOR

Value

1шт.

1

1964860C1R

REMAN-ALTERNATOR

821B CASE WHEEL LOADER (NORTH AMERICA), ALTERNATOR ASSEMBLY, 24 volt, 65 ampere

1шт.

1

1964860C1C

CORE-ALTERNATOR

Return Number

1шт.

2

J911485

SUPPORT

BRACE - alternator

1шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

WASHER - flat, 11 x 20 x 2 mm

1шт.

5

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT - HH, CL 8.8, M8 x 1.25 x 30

1шт.

6

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

7

J925188

SUPPORT

BRACKET - belt tensioner, replaces J911473 bracket

1шт.

8

J918544

SUPPORT

SUPPORT - mounting, alternator

1шт.

9

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT - HH, CL 8.8, M8 x 1.25 x 30

4шт.

10

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

11

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

Bolt, Hex, M12 x 50, 8.8

1шт.

12

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

WASHER - flat, 13.5 x 24 x 2.5 mm

1шт.

13

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

14

829-1412

NUT,M12, Cl 10.9

NUT - hex, 12 mm - 1.75, class 10

2шт.

15

814-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

BOLT - hex, 12 - 1.75 x 70 mm

1шт.

16

231-4248

NUT,1/2"-13, GB

NUT, LOCK, , Not shown 1/2"-13, GB

1шт.

3

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

BOLT, Hex, M10 x 30, 10.9, Full Thd

1шт.
