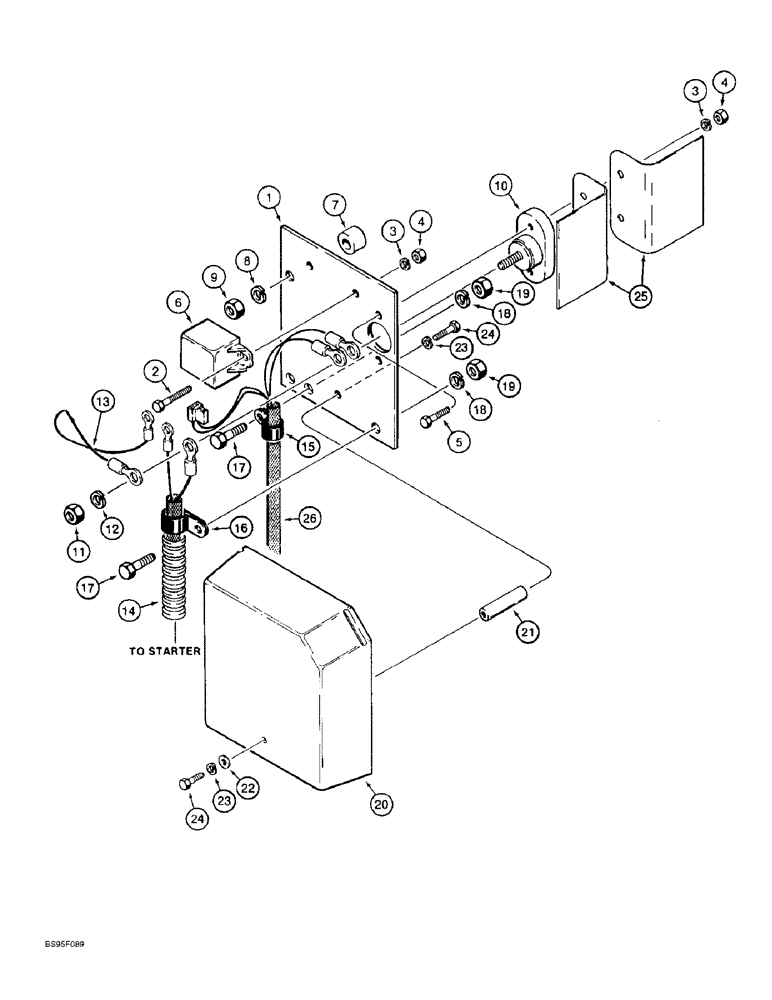

Запчасти Case 821B (4-32) - REAR HARNESS TO RELAY PANEL, PRIOR TO P.I.N. JEE0040040 (04) - ELECTRICAL SYSTEMS

1

125058A1

LARGE PLATE

PANEL - relay mounting, replaces L124084 panel

1шт.

2

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- hex, 1/4 NC x 3/4 inch, grade 8

2шт.

3

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

4

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

5

426-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 8

- hex, 1/4 NC x 1-1/4 inch, grade 8

2шт.

6

120398A1

RELAY

- sealed, 24 volt, service only, replaces 1546485C1 non-sealed relay used in production, no longer available order 120398A1 relay, item 6 on page 4-33B

1шт.

7

S77915

SPACER

- relay panel mounting

2шт.

8

492-11038

LOCK WASHER,3/8"

2шт.

9

425-106

NUT,3/8"-16, Cl 5

2шт.

L124085

CONNECTOR, ELEC

BLOCK - terminal, includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - terminal block, includes flat washer

1шт.

11

425-106

NUT,3/8"-16, Cl 5

1шт.

12

492-11038

LOCK WASHER,3/8"

1шт.

13

244375A1

HARNESS

WIRE - jumper, replaces L124102 wire

1шт.

14

L126516

HARNESS

CABLE -, Serial Range: relay-starter

1шт.

15

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type 1/2", Insul, 3/8" Bolt

1шт.

16

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type 3/4", Insul, 3/8" Bolt

1шт.

17

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

18

492-11038

LOCK WASHER,3/8"

2шт.

19

425-106

NUT,3/8"-16, Cl 5

2шт.

20

L114612

COVER

- relay panel

1шт.

21

L114195

SPACER

- relay cover

1шт.

22

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

1шт.

23

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

24

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- hex, 1/4 NC x 3/4 inch, grade 8

2шт.

25

L125774

PROTECTOR

SHIELD - heat, two used on models with auxiliary steering

1-2шт.

26

107787A1

HARNESS

- rear, see Fig. 4-29A, 4-30, 4-44, and 4-58 for continuation of the harness

1шт.
