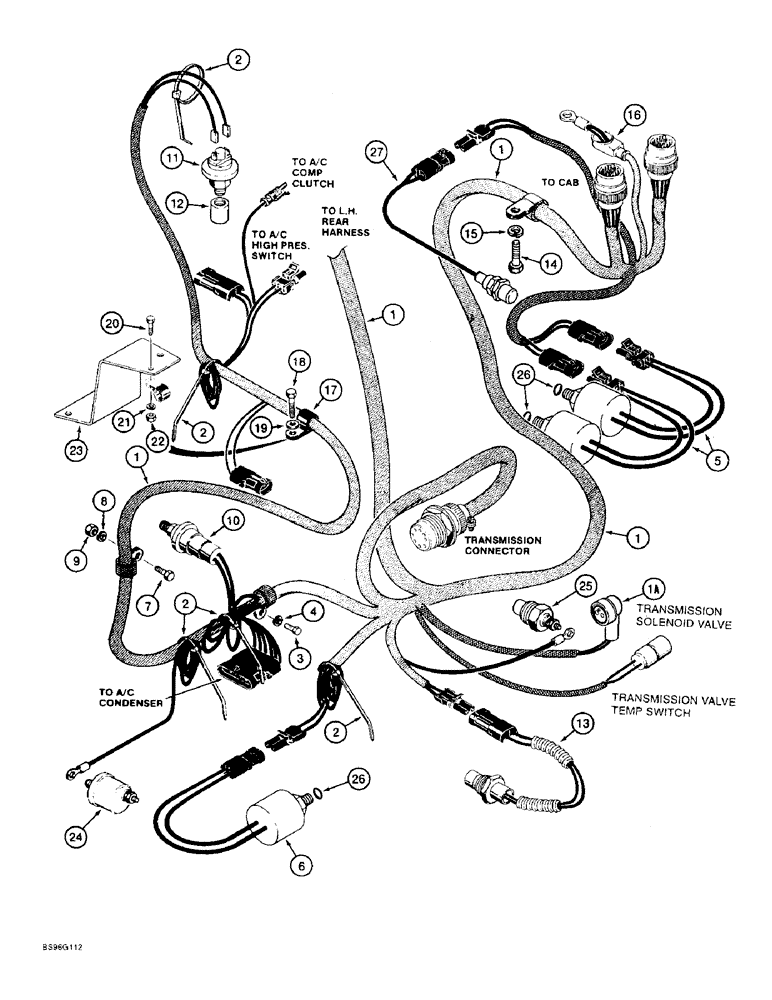

Запчасти Case 821B (4-29A) - REAR HARNESS, ENGINE RIGHT-HAND SIDE, P.I.N. JEE0052701 & AFTER (04) - ELECTRICAL SYSTEMS

1

244237A1

HARNESS

- rear, see Fig. 4-30, 4-33A, 4-44 and 4-58 for continuation of the harness, includes: Ref. 1A, Start Serial: JEE0051701

1шт.

1a

244181A1

CONNECTION,ELECTRIC

CONNECTOR - transmission solenoid valve, included with item 1, 244237A1 harness

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

HARNESS - rear, see Fig. 4-30, 4-33A, 4-44 and 4-58 for continuation of the harness, replaces 192486A1 harness

1шт.

3

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

1шт.

4

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

5

L128914

PRESSURE SWITCH

SWITCH - declutch

2шт.

6

L128913

PRESSURE SWITCH

SWITCH - brake pressure

1шт.

7

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

1шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

10

A187723

SENDER UNIT

SWITCH - engine oil pressure

1шт.

11

292740A1

RESTRICTION SWITCH

SWITCH - air cleaner, replaces 1983233C1 switch

1шт.

12

221-1335

COUPLING,Pipe, 1/8" NPT

1шт.

13

A187530

TEMPERATURE SENDER

SWITCH - transmission oil temperature

1шт.

14

426-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 8

- hex, 5/16 NC x 1/2 inch, grade 8

1шт.

15

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

16

L126713

BOOT

- plastic, harness at floor of operators compartment

1шт.

17

49833

CLAMP

- P-type, at fuel lines on units without air conditioning using hardware Ref. 18 and 19, at bracket on units with air conditioning using hardware Ref. 20, 21, and 22

1шт.

18

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, , Replaces J903609 bolt Hex Hd, M5 x .8 x 20, w/LW

1шт.

19

J903723

WASHER

- flat, special, 6 x 10 x 1 mm

1шт.

20

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

21

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

22

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

23

L125956

SUPPORT

BRACKET - clamp mounting, units with air conditioning

1шт.

24

L127534

SENDER UNIT

SENDER - engine oil pressure

1шт.

25

L127532

TEMPERATURE SENDER,1/2" - 14

SENDER - transmission oil

1шт.

27

241956A1

SWITCH

- proximity, auto shift

1шт.

26

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

3шт.
