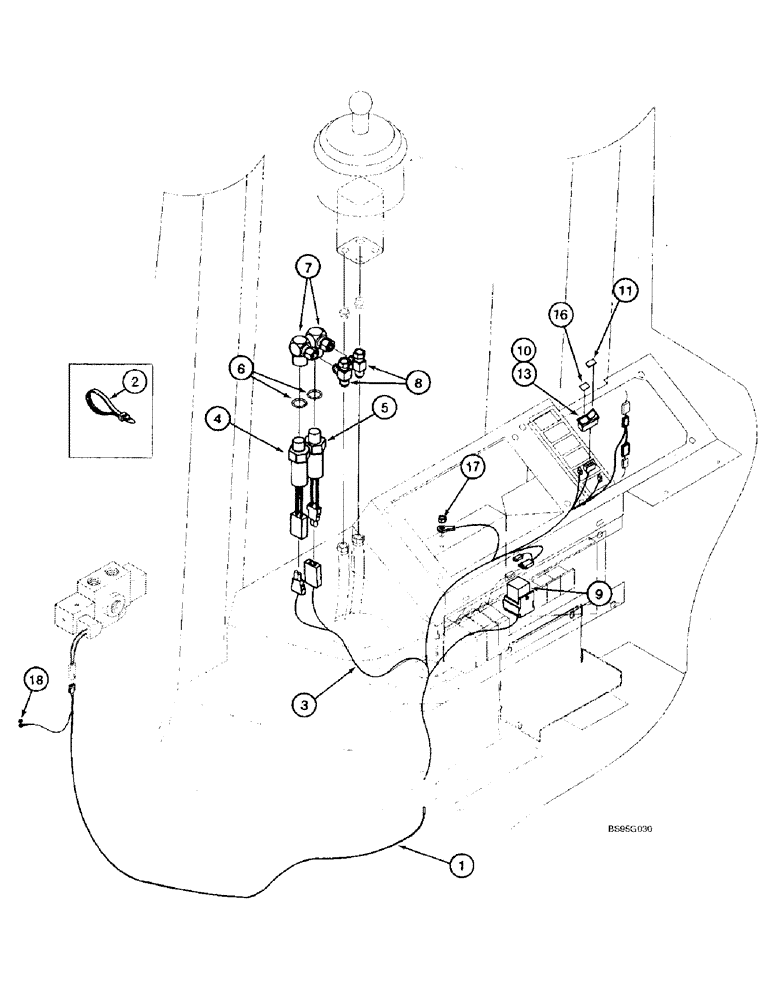

Запчасти Case 821B (4-27A) - RIDE CONTROL HARNESS (04) - ELECTRICAL SYSTEMS

1

107865A1

ELECTRICAL WIRE

HARNESS - ride control, front, cab floor to master valve solenoid, see Fig. 8-90

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

3

130417A1

HARNESS

- ride control, cab

1шт.

4

132905A1

SWITCH

- bucket tilt circuit

1шт.

Ref. 4, bucket tilt switch and fittings connect to the connector at "YB" port of the single lever remote controller and "XA" port for the dual lever remote controller. Ref. 5, lift switch and fittings connect to the connector at "XB" for both model controllers. See pages 8-53, single lever remote control with two spool valve, 8-55, dual lever remote control with two spool valve, or 8-65 two single lever remote controls with four spool valve, for fittings at the remote control.

1шт.

5

132906A1

SWITCH

- bucket lift circuit

1шт.

Ref. 4, bucket tilt switch and fittings connect to the connector at "YB" port of the single lever remote controller and "XA" port for the dual lever remote controller. Ref. 5, lift switch and fittings connect to the connector at "XB" for both model controllers. See pages 8-53, single lever remote control with two spool valve, 8-55, dual lever remote control with two spool valve, or 8-65 two single lever remote controls with four spool valve, for fittings at the remote control.

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

7

131248A1

ELBOW,90 Degree, 9/16"-18 37 Degree Sw x 3/4"-16 O-Ring Fem

- 90 degree, special

2шт.

Ref. 4, bucket tilt switch and fittings connect to the connector at "YB" port of the single lever remote controller and "XA" port for the dual lever remote controller. Ref. 5, lift switch and fittings connect to the connector at "XB" for both model controllers. See pages 8-53, single lever remote control with two spool valve, 8-55, dual lever remote control with two spool valve, or 8-65 two single lever remote controls with four spool valve, for fittings at the remote control.

1шт.

8

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- 90 degree, special, 9/16-18 inch flare branch x flare x swivel

2шт.

Ref. 4, bucket tilt switch and fittings connect to the connector at "YB" port of the single lever remote controller and "XA" port for the dual lever remote controller. Ref. 5, lift switch and fittings connect to the connector at "XB" for both model controllers. See pages 8-53, single lever remote control with two spool valve, 8-55, dual lever remote control with two spool valve, or 8-65 two single lever remote controls with four spool valve, for fittings at the remote control.

1шт.

9

198161A1

RELAY

- mini, 24 volt, latching, (canopy) for power distribution center

1шт.

10

1913507C1

SWITCH ASSY

SWITCH - rocker, ride control, see Fig. 4-8 for instrument panel

1шт.

11

83884C1

SYMBOLS

LENS - green

2шт.

12

191146A1

DECAL

- ride control, not shown, see Fig. 9-100

1шт.

13

A187870

LAMP

- warning, ride control indicator, see Fig. 4-8 for instrument panel, includes: Ref. 14

1шт.

14

926645C1

BULB,W5, 12V, 1.2W

- W5/1,2 24V1,2W, not shown

1шт.

15

191145A1

DECAL

- ride control, on, not shown, see Fig. 9-100

1шт.

17

1999948C1

FLANGE NUT

- hex flange, special, 5/16 inch

1шт.

16

83883C1

SYMBOLS

LENS - black

1шт.

18

425-106

NUT,3/8"-16, Cl 5

1шт.
