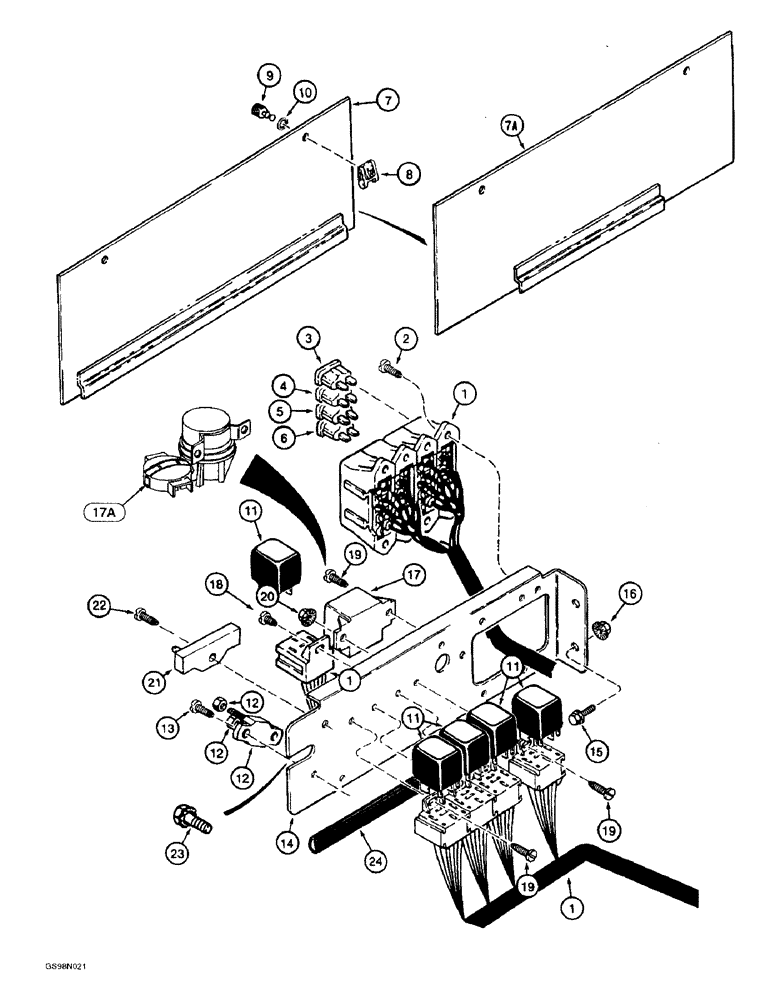

Запчасти Case 821B (4-20) - MAIN CAB HARNESS, POWER DISTRIBUTION CENTER (04) - ELECTRICAL SYSTEMS

1

110863A2

HARNESS

- main cab, see Fig. 4-18 for serviceable rectifiers and resistor to JEE0042310

1шт.

1

192493A1

HARNESS

- main cab, see Fig. 4-18 for serviceable rectifiers and resistor, Serial Range: JEE0042310-JEE0052700

1шт.

1

244242A1

HARNESS

- main cab, see Fig. 4-18 for serviceable rectifiers and resistor, Start Serial: JEE0052701

1шт.

2

261-13512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - self-tapping, pan Phillips, No. 10 NC x 3/4 inch

4шт.

3

A149796

FUSE

- violet, 3 ampere

1шт.

4

A149798

FUSE

- tan, 5 ampere

4шт.

5

A149800

FUSE,10 Amp

- red, 10 ampere, ten used with 244242A1 harness

9-10шт.

6

A149801

FUSE,Lt Blue, 15 Amp

- light blue, 15 ampere

2шт.

7

1970033C2

COVER

- fuse box, tan

1шт.

7a

193674A1

COVER

- fuse box, gray

1шт.

8

A36042

CLIP

RETAINER - quarter turn

2шт.

9

1970049C2

STUD

- fuse box

2шт.

10

1981869C1

WASHER

WASHER - retainer

2шт.

11

198161A1

RELAY

- mini, 24 volt, neutral start, transmission cut-off, cold start, and horn, replaces A186288 relay

4шт.

12

S243558

CIRCUIT-BREAKER,12.5A

BREAKER - circuit, includes bracket and hardware, with plastic housing and seal, 12.5 ampere

1шт.

13

261-13512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - self-tapping, pan Phillips, No. 10 NC x 3/4 inch

2шт.

14

1987018C2

SUPPORT

HOUSING - power distribution center

1шт.

15

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

2шт.

16

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

17

1546542C1

RELAY

- sealed, 24 volt, service only, replaces 1546485C1 non-sealed relay used in production, no longer available order 120398A1 relay, item 17A

1шт.

17a

120398A1

RELAY

- 24 volt, replaces 1546542C1 relay

1шт.

18

261-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan Phillips, No. 10 NC x 3/8 inch

1шт.

19

261-13512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - self-tapping, pan Phillips, No. 10 NC x 3/4 inch

3шт.

20

231-51409

SERRATED NUT,Flg, USR, #10-24

1шт.

21

F22316

RESISTOR,75 Ohms 0.2 Amps DC

- 75 ohm

1шт.

22

261-13516

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

SCREW - self-tapping, pan Phillips, No. 10 NC x 1 inch

1шт.

23

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

24

L127454

LINING

TRIM - edge, 220 mm (8-3/4 inch) long, cut from F64277X bulk trim, see below

1шт.

F64277X

SEAL

TRIM - edge, bulk, 14478 mm (570 inch) long

1шт.
