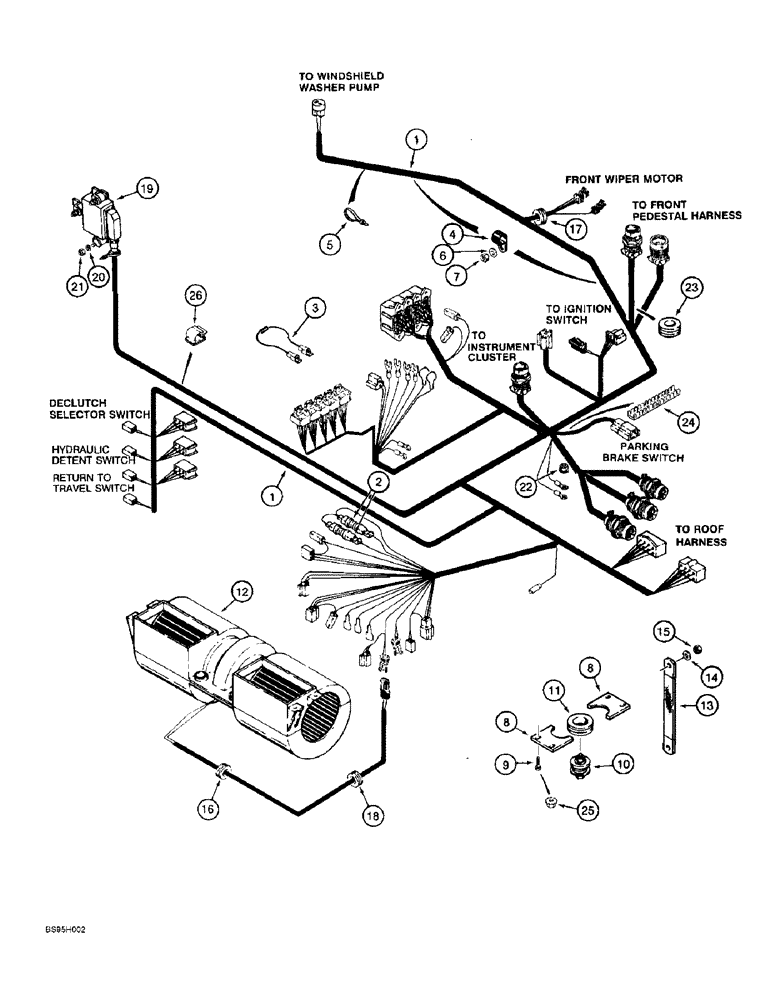

Запчасти Case 821B (4-18) - MAIN CAB HARNESS, TRANSMISSION CONTROL (04) - ELECTRICAL SYSTEMS

1

110863A2

HARNESS

- main cab, includes 113699A1, 115448A1, includes: Ref. 2 and 3, Serial Range: -JEE0042310

1шт.

1

192493A1

HARNESS

- main cab, includes 113699A1, 115448A1, includes: Ref. 2 and 3, Start Serial: JEE0042310

1шт.

1

244242A1

HARNESS

- main cab, includes 220534A1, includes: Ref. 2 and 3, Start Serial: JEE0052701

1шт.

2

113699A1

RECTIFIER

- locking, 2-5/8 inch long, included with 110863A2, 193493A1, and 244242A1 harnesses

2шт.

3

115448A1

RESISTOR

RECTIFIER - included with 110863A2 and 193493A1 harness

1шт.

3

220534A1

ELECTRICAL WIRE

RESISTOR - included with 244242A1 harness

1шт.

4

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type 1", Insul, 3/8" Bolt

2шт.

5

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - tie, 15"ch

1шт.

6

495-21031

WASHER,1/4"

-flat 5/16 x 3/4 x 1/16 inch

2шт.

7

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

8

1970030C1

LARGE PLATE

PLATE -harness guide

2шт.

9

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- hex, 1/4 NC x 3/4 inch, grade 8, If used

4шт.

10

A187523

JUNCTION BLOCK

BLOCK -cable junction, includes hardware

1шт.

11

A187875

GROMMET

- rubber, cab floor

1шт.

12

REF

INSTRUCTION

BLOWER ASSEMBLY - cab, see Fig. 04-56

1шт.

13

L126051

GROUND STRAP

STRAP - ground

1шт.

14

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

- flat, brass, special, 11 x 25 x 2 mm

2шт.

15

L127555

NUT,Hex, 3/8" - 16

- hex, brass, special, 3/8 inch NC

2шт.

16

96901C1

GROMMET

- blower motor wire

1шт.

17

117975

GROMMET,5/8" ID x 1 3/8" x .062", Diag Cut

- rubber, wiper wire, replaces 1973558C1 grommet

1шт.

18

1546537C1

GROMMET

- wire

1шт.

19

A187988

TESTER

CONTROL - transmission, ZF 6009 036 103, if used (ECU)

1шт.

See ZF part number stamped on control to determine which part number to order

1шт.

19

138496A1

TESTER

CONTROL - transmission, ZF 6009 054 065, if used (ECU)

1шт.

See ZF part number stamped on control to determine which part number to order

1шт.

19

138496A1R

REMAN ELECT CONTROL

821B, REMAN for Part No. A187988 & 138496A1, N.A. Only (ECU)

1шт.

19

138496A1C

CORE-ELECTRONIC CONT

Return Number, For N.A. Only (ECU)

1шт.

19

242558A1

TESTER

CONTROL - transmissionl, ZF 6009 047 646 (ECU), Start Serial: JEE0052701

1шт.

242558A1R

REMAN ELECT CONTROL

821B ASN JEE0052701 (ECU)

1шт.

242558A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

20

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

21

225-14110

NUT,#10-24

3шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC, mounts ground wire to cab frame, replaces 1999948C1 nut

1шт.

23

1970021C1

GROMMET

TRIM - flexible, 324 mm (12-3/4 inch) long, branch to front pedestal harness

1шт.

24

1973557C1

GROMMET

- rubber, seat platform on left-hand side to parking brake switch

1шт.

25

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

If used Flg, USR, 1/4"-20

4шт.

26

169850C2

CABLE CLIP

CLIP, CABLE - retaining, harness to rear wall of cab

1шт.

27

275263A1

HARNESS

- main cab adapter; 23 pin to 31 pin, if used, not illustrated, Serial Range: -JEE0052701

1шт.
