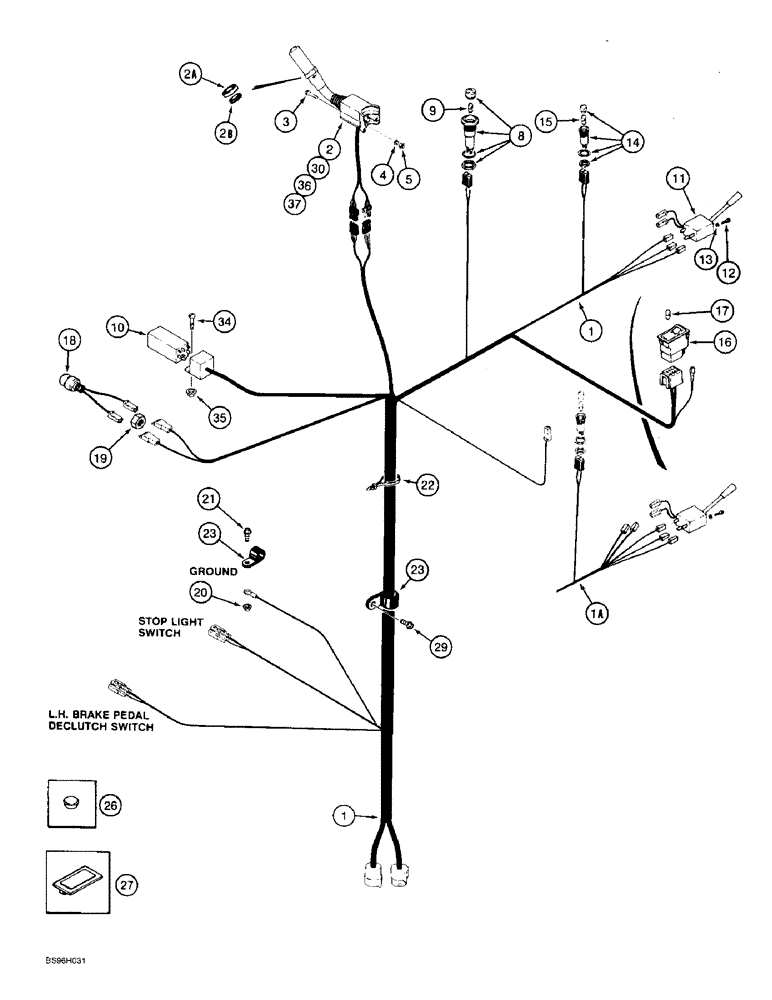

Запчасти Case 821B (4-14) - HARNESS - PEDESTAL, PRIOR TO P.I.N. JEE052701 (04) - ELECTRICAL SYSTEMS

1

1546472C1

HARNESS

- pedistal, with three connectors to Ref. 11 combination switch, no longer available, order Ref. 1A, 1546472C2 harness

1шт.

1a

1546472C2

HARNESS

- pedestal, with five connectors to Ref. 11 combination switch

1шт.

2

A187943

CONTROL

LEVER ASSEMBLY - transmission control, no longer available, order Ref. 30, 189725A1, includes: Ref. 2A and 2B

1шт.

See Fig. 9-100 for flasher lamp switch, cold start, and horn decals.

1шт.

2

245614A1R

REMAN ELECT CONTROL

Reman for New PN A187943

1шт.

2

245614A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

2a

NSS

NOT SOLD SEPARAT

COVER - seal, transmission range lever

1шт.

2b

NSS

NOT SOLD SEPARAT

SEAL - transmission range lever

1шт.

3

864-5020

HEX SOC SCREW,M5 x 20mm, Cl 8.8

SCREW, Hex Soc Hd, M5 x 20, 8.8

2шт.

4

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

2шт.

5

825-1405

NUT,M5, Cl 8

2шт.

A186268

LAMP

ASSEMBLY - master warning, includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - lamp, includes lens cap and mounting hardware

1шт.

9

S119827

BULB

- No. 313

1шт.

10

A187940

FLASHER UNIT

FLASHER - turn signal

1шт.

11

1987555C1

SWITCH

- combination, turn signal and horn, horn wires not used on models with horn button on steering column

1шт.

See Fig. 9-100 for flasher lamp switch, cold start, and horn decals.

1шт.

12

614-4012

BOLT,Hex, M4 x 0.7 x 12mm, Cl 8.8, Full Thd

- hex, full threads, 4 - 0.7 x 12 mm

2шт.

13

892-11004

LOCK WASHER,M4

WASHER, LOCK, M4

2шт.

A187667

LAMP

ASSEMBLY - indicator, turn signal, includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - lamp, includes lens cap and mounting hardware

1шт.

15

T39215

BULB

- No. 1820

1шт.

16

A187984

SWITCH

- rocker, flasher lamp, hazard, includes: Ref 17

1шт.

17

926645C1

BULB,W5, 12V, 1.2W

- W5/1,2 24V1,2W

1шт.

18

A135520

SWITCH

- cold start

1шт.

19

425-1110

NUT,5/8"-18, G5

1шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

21

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

SCREW - self-tapping, hex washer head, 5/16 NC x 3/4 inch

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

23

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type 1", Insul, 3/8" Bolt

2шт.

26

353-406

PLUG,Dome, .625" hole, Nylon

- button, 5/8 inch, used on units without Ref. 14 and 15, A187667

1шт.

27

245918C1

LENS

PLUG - rectangular, rocker switch, used on units without Ref. 16, A187984

1шт.

29

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

SCREW - 5/16 NC x 3/4 inch

1шт.

30

189725A1

CONTROL

LEVER - transmission control, no longer available, order lever 236488A1, Serial Range: -JEE0051209

1шт.

See Fig. 9-100 for flasher lamp switch, cold start, and horn decals.

1шт.

30

245614A1R

REMAN ELECT CONTROL

Reman for New PN 189725A1

1шт.

30

245614A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

34

1276057C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - pan head, special, No. 10 NC x 3/8 inch

1шт.

35

231-51409

SERRATED NUT,Flg, USR, #10-24

1шт.

36

236488A1

CONTROL

LEVER - transmission control, with kickdown button, P.I.N. JEE0051209 through JEE0051915, no longer available, order 245614A1, lever Ref. 37

1шт.

See Fig. 9-100 for flasher lamp switch, cold start, and horn decals.

1шт.

36

245614A1R

REMAN ELECT CONTROL

Reman for New PN 236488A1

1шт.

36

245614A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

37

245614A1

FLASHER SWITCH,Lever, Transmission Control, With Kickdown Switch

LEVER - transmission control, with kickdown switch button, replaces A187943, 189725A1 and 236488A1, Serial Range: -JEE0051916

1шт.

See Fig. 9-100 for flasher lamp switch, cold start, and horn decals.

1шт.

37

245614A1R

REMAN ELECT CONTROL

821B, REMAN for Part No. 245614A1 & A187943

1шт.

37

245614A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

38

238270A1

CONTROL

LEVER - transmission control, without kickdown button, not shown, Start Serial: JEE0051916

1шт.

238270A1R

REMAN-JOYSTICK

821B - CASE WHEEL LOADER (NORTH AMERICA) PRIOR TO P.I.N. JEE0052701

1шт.

238270A1C

CORE-JOYSTICK

Return Number

1шт.

252822A1

KIT

- repair, kickdown button boot, services 189725A1, 236488A1, and 245614A1

1шт.

See Fig. 9-100 for flasher lamp switch, cold start, and horn decals.

1шт.
