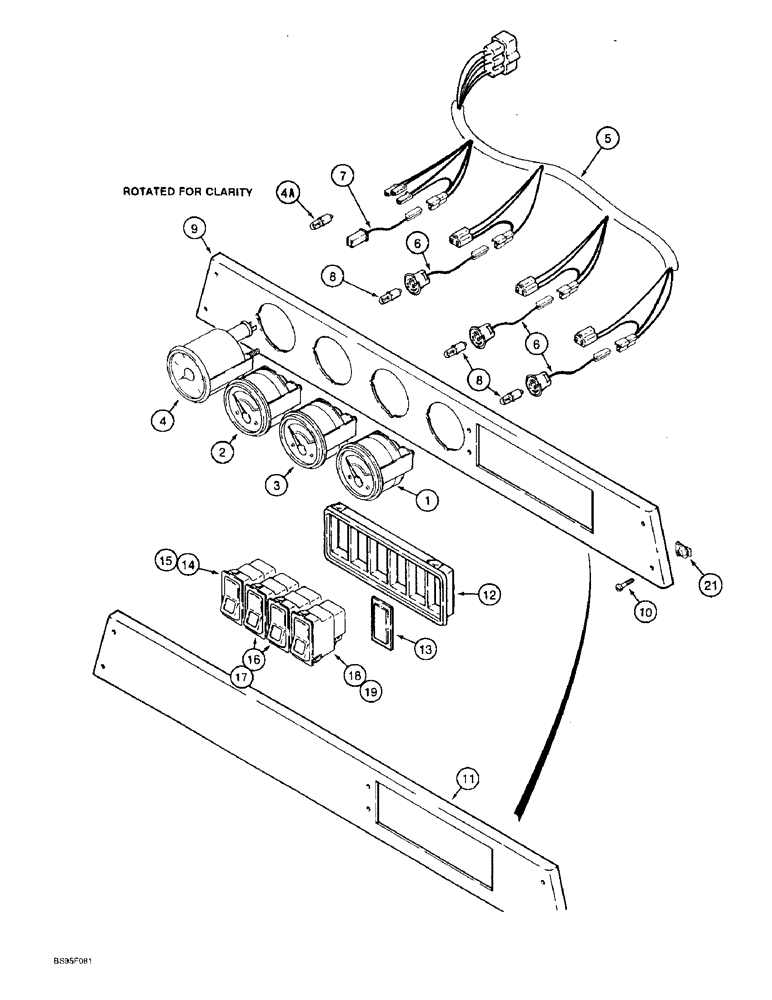

Запчасти Case 821B (4-10) - OPTIONAL GAUGES AND OVERHEAD SWITCHES (04) - ELECTRICAL SYSTEMS

1

L125857

VOLTMETER

GAUGE - voltmeter, includes clamp and nut

1шт.

2

118266A1

ELECTRICAL GAUGE

GAUGE - transmission oil temperature, includes clamp and nut, replaces L125854 gauge

1шт.

3

118265A1

ELECTRICAL GAUGE

GAUGE - engine oil pressure, includes clamp and nut, replaces L125853 gauge

1шт.

4

L129015

TACHOMETER

GAUGE - tachometer, includes clamp and nut, includes: Ref. 4A

1шт.

4a

102044A1

BULB

- 24V, 3W

1шт.

5

108260A1

HARNESS

- gauges, optional gauge

1шт.

6

108258A1

ELECTRICAL WIRE

WIRE - jumper, harness, voltmeter, engine oil pressure, and transmission oil temperature gauges

3шт.

7

108259A1

ELECTRICAL WIRE

WIRE - jumper, tachometer

1шт.

8

S116543

BULB

- No. 456, gauge

3шт.

9

1339563C2

PANEL, INSTRUMENTS

PANEL - instrument, overhead, use on units with optional gauges

1шт.

10

140-112

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

4шт.

11

1339868C2

PANEL, INSTRUMENTS

PANEL - instrument, overhead, use on units without optional gauges

1шт.

12

A187580

PANEL

- mounting, switch

1шт.

13

245918C1

LENS

PLUG - rectangular, rocker switch

1шт.

14

A187622

SWITCH

- rocker, windshield washer, includes: Ref. 15

1шт.

See Fig. 9-100 for rocker switch decals

1шт.

15

926645C1

BULB,W5, 12V, 1.2W

- W5/1,2 24V1,2W

1шт.

16

A187621

SWITCH

- rocker, wiper, front and rear, includes: Ref. 17

2шт.

One A187621 wiper switch is included in L36339 canopy windshield and wiper kit shown on Fig. 9-96.

1шт.

17

926645C1

BULB,W5, 12V, 1.2W

- W5/1,2 24V1,2W

1шт.

18

1913507C1

SWITCH ASSY

SWITCH - rocker, beacon, see notes, includes: Ref. 19

1шт.

19

926645C1

BULB,W5, 12V, 1.2W

- W5/1,2 24V1,2W

1шт.

20

353-401

PLUG,Dome, .312" hole, Nylon

- button, 5/16 inch, used with Ref. 9, 1339563C2 and Ref. 11, 1339868C2

2шт.

21

1301128C2

SPRING NUT,U, 1/4" - 20 x 23.37mm, Gr 5

- U-type, 1/4 inch NC

4шт.
