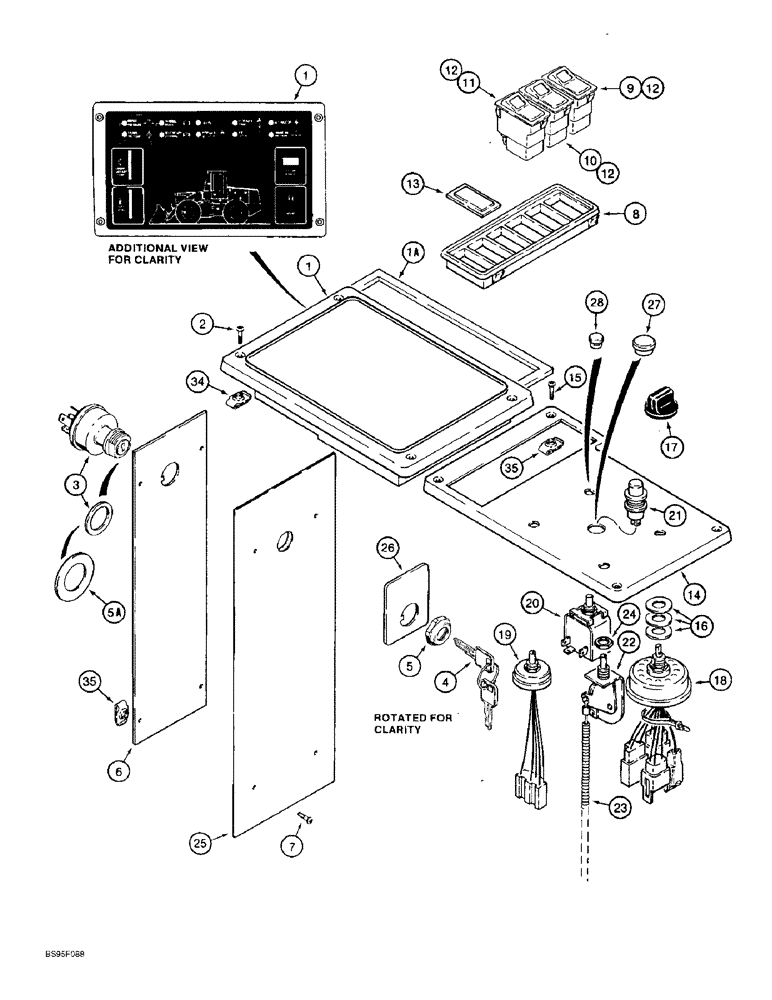

Запчасти Case 821B (4-08) - INSTRUMENT PANEL AND IGNITION SWITCH (04) - ELECTRICAL SYSTEMS

1

1987532C1

CLUSTER

PANEL instrument, with graphics, monitoring system, includes: Ref. 1A

1шт.

See Fig. 9-100 for environmental control panel and rocker switch decals. See your Case dealer for service and parts information for the FACT coupler.

1шт.

185653A2R

REMAN-INSTR CLUSTER

821B, Reman For New PN 1987532C1

1шт.

185653A2C

CORE-CLUSTER, INSTR

Return Number

1шт.

1a

143779A1

GASKET

- panel

1шт.

2

99997C1

SELF-TAP SCREW,Cross Pan Hd, #10-24 x 3/4"

SCREW - pan head, No. 10 NC x 3/4 inch

4шт.

282775A1

IGNITION SWITCH

ASSEMBLY includes keys, includes: Ref. 3 - 5; Replaces D134737 Switch Which Used A77313 Metal Key Without Padding Used On Some Models

1шт.

3

NSS

NOT SOLD SEPARAT

SWITCH ignition

1шт.

4

1964831C2

IGNITION KEY

KEY - padded, replaces A77313 key used with D134737 Switch

1шт.

5

A77314

NUT

- hex, special, key switch mounting

1шт.

5a

95-11106

WASHER,1" x 2" x .134"

- flat, 1-1/16 x 2 x 1/8 inch, ignition, models with canopy

1шт.

6

193904A1

LARGE PLATE

PLATE - mounting, ignition switch, replaces 1339909C1 plate

1шт.

7

140-112

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

4шт.

8

A187580

PANEL

- mounting, switch

1шт.

9

A187762

SWITCH

- rocker, declutch selector

1шт.

See Fig. 9-100 for environmental control panel and rocker switch decals. See your Case dealer for service and parts information for the FACT coupler.

1шт.

10

1913507C1

SWITCH ASSY

SWITCH - rocker, Serial Range: return-dig

1шт.

See Fig. 9-100 for environmental control panel and rocker switch decals. See your Case dealer for service and parts information for the FACT coupler.

1шт.

11

A187762

SWITCH

- rocker, return to transport and height control, includes: Ref. 12

1шт.

See Fig. 9-100 for environmental control panel and rocker switch decals. See your Case dealer for service and parts information for the FACT coupler.

1шт.

12

926645C1

BULB,W5, 12V, 1.2W

- W5/ 1, 2 24V1, 2W, included with Refs. 9, 10, and 11

1шт.

13

245918C1

LENS

PLUG rectangular, rocker switch

1шт.

14

1970047C3

PANEL

- control, environmental

1шт.

15

1276051C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1"

SCREW - pan Phillips, special, 1/4 NC x 1 inch

4шт.

16

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

3шт.

17

1994720C1

KNOB

- push on

1шт.

18

1994716C1

LIGHT SWITCH

SWITCH - Lamp, five position

1шт.

19

92100C2

SWITCH

- blower motor

1шт.

20

A187954

SWITCH

- thermostat, units with air conditioning

1шт.

21

A187881

LAMP

- amber lens, No. 1820, pressure indicator, units with air conditioning

1шт.

1977535C2

CABLE

ASSEMBLY heater, for service order Refs. 22 switch, and 23 cable, includes: Ref. 22 and 23

1шт.

22

1954651C2

CONTROL

SWITCH - heater

1шт.

23

1954648C2

CABLE

- heater

1шт.

24

109311H

JAM NUT

- hex, jam, 7/16-28 NF

1шт.

25

1969939C1

LARGE PLATE

FOAM ignition switch mounting plate

1шт.

26

193319A1

PAD

PLATE ignition switch, replaces 1339931C1 plate

1шт.

27

353-407

PLUG,Dome, .687" hole, Nylon

- button, 11/16 inch, units without air conditioning

1шт.

28

353-403

PLUG,Dome, .437" hole, Nylon

Units without air conditioning Dome, .437" hole, Nylon

1шт.

29

S300775

SWITCH

- rocker, FACT coupler, not shown, see note below, includes: Ref. 30

1шт.

30

926645C1

BULB,W5, 12V, 1.2W

- W5/1,2 24V1,2W, not shown

1шт.

34

131-876

SPRING NUT,U, #10 - 24, 0.020" Thk

- U-type, No. 10 NC

4шт.

35

1301128C2

SPRING NUT,U, 1/4" - 20 x 23.37mm, Gr 5

- U-type, 1/4 inch NC

8шт.
