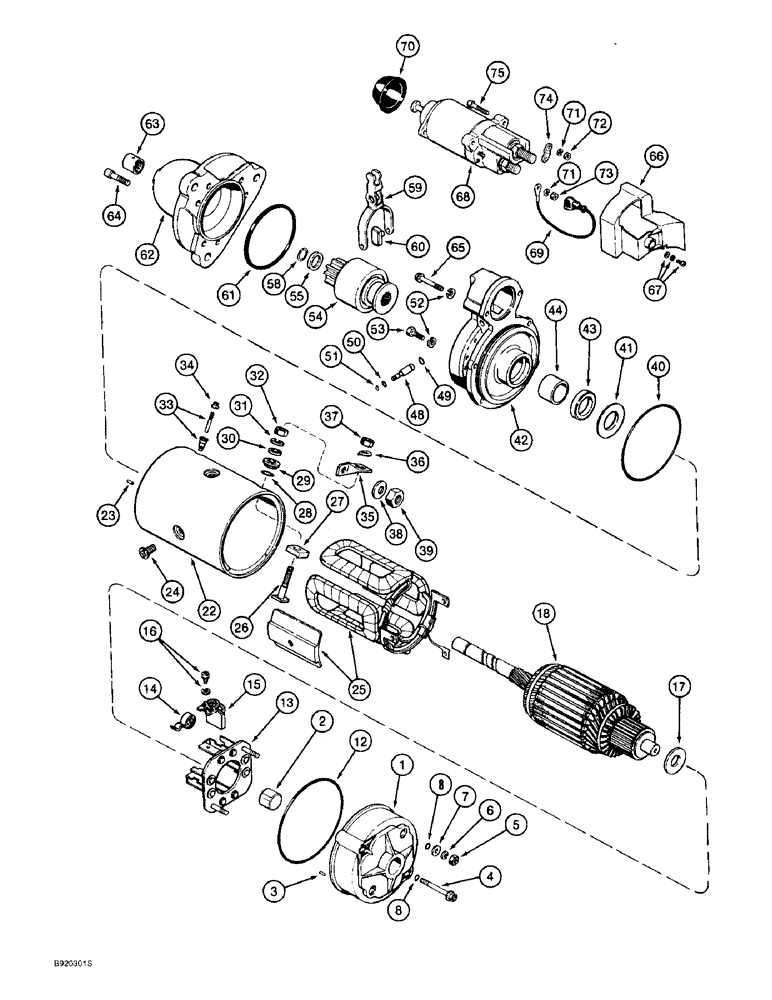

Запчасти Case 821B (4-04) - STARTER ASSEMBLY (04) - ELECTRICAL SYSTEMS

A187722

STARTING MOTOR

STARTER ASSEMBLY - engine, 128000-7020 Nippondenso, includes: Ref. 1 - 53

1шт.

AR187722

REMAN-STARTER

Remanufactured Starter

1шт.

AC187722

CORE-STARTER

Return Number

1шт.

1

A187851

HOUSING

FRAME ASSEMBLY - end, commutator, includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

BEARING - needle

1шт.

3

NSS

NOT SOLD SEPARAT

PIN - dowel, locating

1шт.

4

845-6060

BOLT,Hvy Hex, M6 x 60mm, Cl 8.8

BOLT - heavy hex flange, 6 - 1.0 x 60 mm

4шт.

5

825-2306

FLANGE NUT,M6 x 1, Flg, Cl 8

NUT - hex flange, 6 mm - 1

2шт.

6

NSS

NOT SOLD SEPARAT

WASHER - lock, 6 mm

2шт.

7

NSS

NOT SOLD SEPARAT

WASHER - flat, 6 mm

2шт.

8

A187857

O-RING,5.8 mm ID x 1.9 mm

O-RING - sealing

4шт.

12

A187893

GASKET

O-RING - frame, frame

1шт.

13

A187852

BRUSH HOLDER

HOLDER, BRUSH HOLDER ASSEMBLY - brush

1шт.

14

A187823

SPRING

SPRING - brush

4шт.

15

A187891

BRUSH, COMMUTATOR

BRUSH BRUSH - starter

4шт.

16

A47816

SCREW,Pan Cross, M5 x 0.8 x 12mm

SCREW - slotted, includes lock washer, 5 - 0.8 x 12 mm

4шт.

17

A47813

WASHER

WASHER - end, armature

1шт.

18

A187889

ARMATURE

ARMATURE - starter

1шт.

22

A187888

BODY

HOUSING ASSEMBLY - field coil, includes: Ref. 23 - 33

1шт.

23

NSS

NOT SOLD SEPARAT

PIN - dowel, locating

1шт.

24

NSS

NOT SOLD SEPARAT

SCREW - retainer, coil

4шт.

25

NSS

NOT SOLD SEPARAT

COIL ASSEMBLY - field

1шт.

26

NSS

NOT SOLD SEPARAT

TERMINAL - field

1шт.

27

NSS

NOT SOLD SEPARAT

BUSHING - insulation

1шт.

28

NSS

NOT SOLD SEPARAT

O-RING - terminal

1шт.

29

NSS

NOT SOLD SEPARAT

BUSHING - insulation

1шт.

30

NSS

NOT SOLD SEPARAT

WASHER - flat plate

1шт.

31

NSS

NOT SOLD SEPARAT

WASHER - lock

1шт.

32

NSS

NOT SOLD SEPARAT

NUT - hex, terminal

1шт.

33

NSS

NOT SOLD SEPARAT

TERMINAL STUD ASSEMBLY - field

1шт.

34

A187862

FLANGE NUT

NUT - hex, terminal

1шт.

35

A187858

FITTING

CONNECTOR - terminal B

1шт.

36

A10454

WAVE WASHER

WASHER - spring

1шт.

37

825-1410

NUT,M10, Cl 8

Nut, M10, Cl 8

1шт.

38

A187859

WASHER

WASHER - wave

1шт.

39

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

40

A187894

GASKET

O-RING - sealing, housing

1шт.

41

A187860

WASHER

WASHER - plate, armature

1шт.

42

A187850

HOUSING

HOUSING ASSEMBLY - lever, includes: Ref. 43 and 44

1шт.

43

NSS

NOT SOLD SEPARAT

SEAL - oil, housing

1шт.

44

NSS

NOT SOLD SEPARAT

BEARING - housing

1шт.

48

A187865

KIT

KIT - pin, lever, includes: Ref. 49 - 51

1шт.

49

NSS

NOT SOLD SEPARAT

O-RING - pin, large

1шт.

50

NSS

NOT SOLD SEPARAT

O-RING - pin, small

1шт.

51

NSS

NOT SOLD SEPARAT

RING - snap, pin

1шт.

52

A49815

LOCK WASHER

WASHER - lock, bolt

4шт.

53

A187861

BOLT,Hex, M7 x 23mm

BOLT - hex, housing

4шт.

A187722

STARTING MOTOR

STARTER ASSEMBLY - engine, continued from previous page, includes: Ref. 54 - 75

1шт.

54

A187848

CLUTCH ASSEMBLY

CLUTCH - starter drive

1шт.

55

A187855

NUT

NUT - pinion stop

1шт.

58

A47790

RING, SNAP

RING SNAP RING - snap, Serial Range: collar-shaft

1шт.

59

A187853

LEVER

LEVER ASSEMBLY - clutch, starter, includes: Ref. 60

1шт.

60

A187854

WEAR PAD

PAD - lever

2шт.

61

A47786

SEAL

O-RING - clutch housing

1шт.

62

A187890

HOUSING

HOUSING ASSEMBLY - clutch drive, includes: Ref. 63

1шт.

63

NSS

NOT SOLD SEPARAT

BEARING - needle

1шт.

64

A187856

BOLT,Hex, M7 x 24.50mm

BOLT - hex, special, drive housing

6шт.

66

A187864

COVER

KIT - cover, anti-bypass start, includes: Ref. 67

1шт.

67

NSS

NOT SOLD SEPARAT

SCREW - includes washers, set, cover

1шт.

68

A187892

IGNITION SWITCH

SWITCH ASSEMBLY - magnetic solenoid, includes: Ref 69 - 75

1шт.

69

NSS

NOT SOLD SEPARAT

WIRE - connecting

1шт.

70

NSS

NOT SOLD SEPARAT

COVER - plunger

1шт.

71

NSS

NOT SOLD SEPARAT

WASHER - lock

3шт.

72

NSS

NOT SOLD SEPARAT

NUT - hex

1шт.

73

NSS

NOT SOLD SEPARAT

NUT - hex

2шт.

74

NSS

NOT SOLD SEPARAT

TERMINAL - switch

1шт.

75

NSS

NOT SOLD SEPARAT

BOLT - hex, terminal

1шт.

DLR 61090C ADVISED THAT FOR HIS 821B LDR S/N JJE0055846, STARTER P/N 223900A1 IS THE PART ON HIS UNIT. IF DLR CALLS IN AND ADVISES THAT P/N A187722 DOES NOT WORK, HAVE DLR ADVISE P/N OFF STARTER ITSELF. P/N 223900A1 IS THE STARTER USED ON A 821C LDR. JBEDFORD 11/3/99.

1шт.

65

814-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

BOLT, Hex, M6 x 40, 8.8

2шт.
