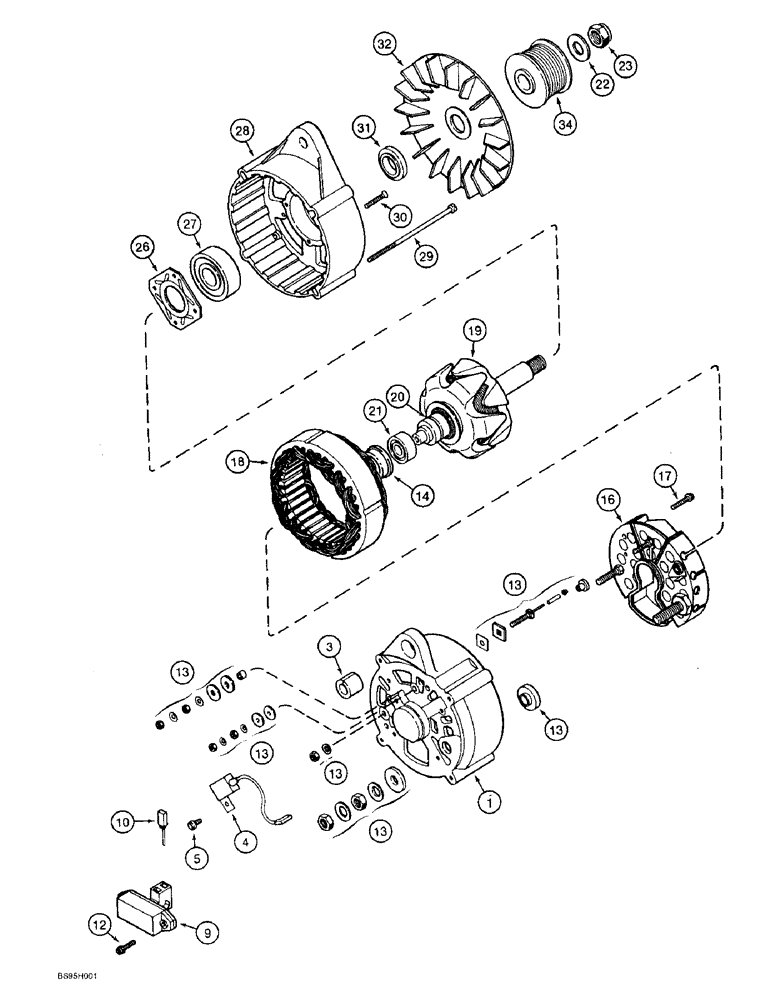

Запчасти Case 821B (4-02) - ALTERNATOR ASSEMBLY, 65 AMPERE - 24 VOLT (04) - ELECTRICAL SYSTEMS

1964860C1

ALTERNATOR,24V, 60A, W/O Pulley

ALTERNATOR ASSEMBLY - 24 volt, 65 ampere, includes: Ref. 1 - 32

1шт.

1964860C1GV

ALTERNATOR

Value

1шт.

1964860C1R

REMAN-ALTERNATOR

821B CASE WHEEL LOADER (NORTH AMERICA), ALTERNATOR ASSEMBLY, 24 volt, 65 ampere

1шт.

1964860C1C

CORE-ALTERNATOR

Return Number

1шт.

1

1964731C1

HOUSING

HOUSING - collector ring end

1шт.

3

1964737C1

BUSHING,13.5mm ID x 20mm OD x 20mm L

BUSHING - expansion

1шт.

4

3079389R1

CAPACITOR

CAPACITOR - suppression

1шт.

5

1964969C1

SCREW

SCREW - special, capacitor retaining

1шт.

9

3079392R91

GOVERNOR

REGULATOR ASSEMBLY - voltage

1шт.

10

1964968C1

COMMUTATOR BRUSH

BRUSH - alternator

1шт.

12

A186194

SCREW,M4 x 18mm

SCREW, hex flange, special, inc. washer

2шт.

13

1964738C1

REPAIR KIT

KIT, REPAIR, Terminal hardware

1шт.

14

1546477C1

SLEEVE

RING - rear bearing

1шт.

16

1964965C1

RECTIFIER

BRIDGE - rectifier

1шт.

17

A187504

SCREW

BOLT - hex flange, special, rectifier bridge

2шт.

18

1964966C1

STATOR

STATOR - alternator

1шт.

19

1964964C1

ROTOR

ROTOR - alternator

1шт.

20

3079410R1

RING

RING - collector

1шт.

21

1964730C1

BALL BEARING,12mm ID x 32mm OD x 14mm W

BEARING - ball

1шт.

22

495-21063

WASHER,9/16"

WASHER - flat, 5/8 x 1-15/32 x 7/64 inch

1шт.

23

231-46110

LOCK NUT,5/8"-18, GB

NUT - hex, self-locking, 5/8 inch NF

1шт.

26

1964727C1

PLATE

PLATE - bearing retaining

1шт.

27

1964726C1

BALL BEARING,22.2mm ID x 56mm OD x 21mm W

BEARING - ball, drive end

1шт.

28

1964725C1

HOUSING

HOUSING - drive end

1шт.

29

1964748C1

SCREW

BOLT - fillister head, special, alternator

4шт.

30

1964750C1

SCREW

SCREW - machine, flat head, special

4шт.

31

1964729C1

SPACER

SPACER - ring

1шт.

32

1964736C1

FAN

FAN - alternator

1шт.

34

A189616

PULLEY

PULLEY - alternator, replaces J919391 pulley

1шт.
