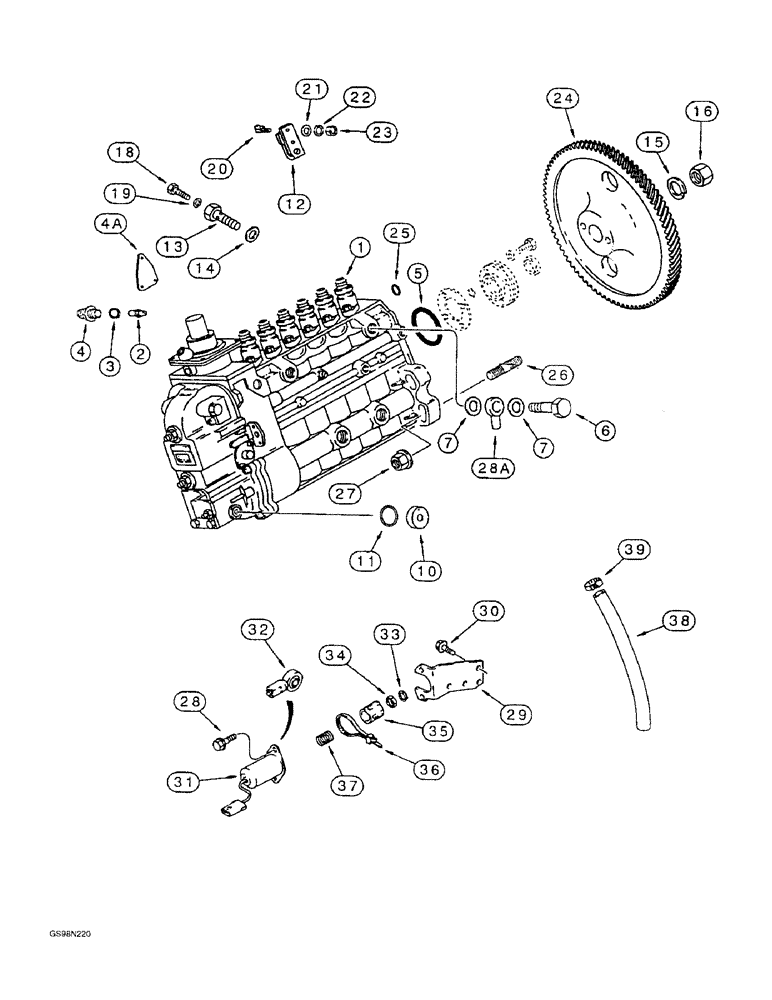

Запчасти Case 821B (3-13C) - FUEL INJECTION PUMP AND DRIVE, 6T-830 EMISSIONS CERTIFIED ENG., TRACTOR P.I.N. JEE0050601 & AFTER (03) - FUEL SYSTEM

1

J926878

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, new, includes: Ref. 2 - 23

1шт.

1

JR926878

REMAN-INJECTION PUMP

Pump Assembly - injection, remanufactured, component parts shown in this figure do not apply to the remanufactured assembly, includes: Ref. 2 - 23

1шт.

1

JC926878

CORE-INJECTION PUMP

Return Number, Pump

1шт.

1

JC923235

CORE-INJECTION PUMP

Return Number- use this part number to return pump core for credit when using a remanufactured assembly, includes: Ref. 2 - 23

1шт.

2

A77720

PIN

- timing

1шт.

3

J928981

LOCK WASHER

WASHER - lock, timing plug, replaces 3051337R1 washer

1шт.

4

J912888

PLUG

- timing

1шт.

4a

A71110

GASKET

- mounting

1шт.

5

J935032

SEAL

O-RING - sealing, 80 mm ID, replaces A41856 O-ring

1шт.

6

J932096

VALVE

- overflow, replaces J912886 valve

1шт.

7

933697R1

SEALING RING,M10 x 13.5 x 1

WASHER - valve sealing

1шт.

8

J929322

LEVER

- pump shutoff, not shown

1шт.

9

J930291

NUT

- hex, 5 mm - 0.8, not shown

1шт.

10

691292C1

RETAINER

HOUSING - spring return

1шт.

11

680187C1

O-RING,2.5mm Thk x 9mm ID

- sealing, special

1шт.

12

1808728C1

LEVER

- throttle control

1шт.

13

J913320

SCREW

- vent

1шт.

14

691273C1

GASKET,14.2mm ID x 19.9mm OD x 1.5mm Thk

- vent screw

1шт.

15

J912897

LOCK WASHER

- lock

1шт.

16

J912896

LOCK NUT

- hex, self-locking, special

1шт.

18

B41211

SCREW

- vent

1шт.

19

933696R1

SEALING RING,M6 x 10 x 1

RING - 6 x 10 mm, vent screw

1шт.

20

1808822C1

THUMB SCREW,M6 x 26mm

BOLT - throttle lever

1шт.

21

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

22

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

23

829-1306

NUT,M6, Cl 10

- hex, 6 mm - 1.0, class 10

1шт.

24

J931379

GEAR

- fuel pump, replaces J912615 gear

1шт.

25

J916284

O-RING

- sealing, fuel injection pump

1шт.

26

J915036

STUD

- pump mounting, gear housing to injection pump, 55 mm (2-5/32 in)

4шт.

27

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

- hex flange, 10 mm - 1.5

4шт.

28

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

2шт.

28a

J911447

CONNECTOR, ELEC

CONNECTOR - banjo, fuel return

1шт.

29

J923255

SUPPORT

BRACKET - solenoid mounting

1шт.

30

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

- heavy hex flange, 10 - 1.5 x 20 mm

2шт.

31

J930234

SOLENOID

- fuel shutoff, 24 volt, includes: Ref. 32 - 37

1шт.

32

A146456

BALL

JOINT - ball, 1/4 inch NF

1шт.

33

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

34

425-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam, 1/4 inch NF

1шт.

35

J925171

BOOT

- protective, plunger

1шт.

36

473321C1

CABLE TIE,8" OAL x 0.098" W

STRAP, CABLE, .098" x 8"

1шт.

37

J923887

SPRING

- return, plunger

1шт.

38

J918176

HOSE,7.90 mm ID x 330.00 mm

1шт.

39

A171099

HOSE CLAMP,13.2mm - 15.4mm

CLAMP - spring-type

1шт.
