Запчасти Case 821B (3-10) - FUEL FILTER AND TRANSFER PUMP, 6T-830 ENGINE, PRIOR TO P.I.N. JEE0050601 (03) - FUEL SYSTEM

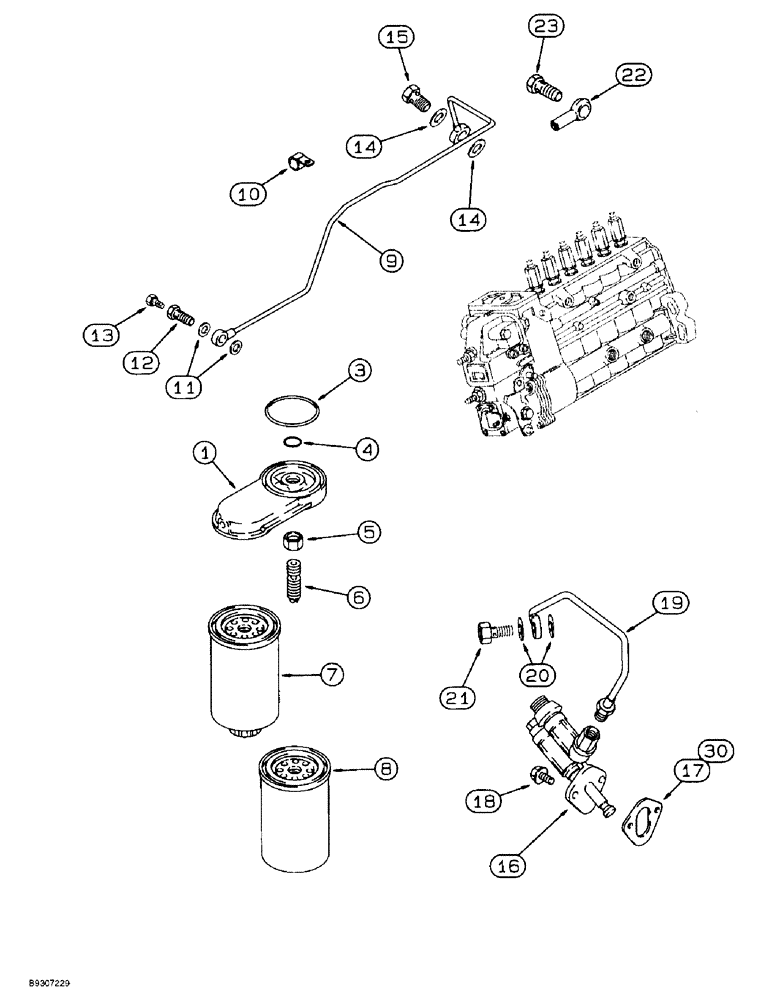

Схема запчастей Case 821B - (3-10) - FUEL FILTER AND TRANSFER PUMP, 6T-830 ENGINE, PRIOR TO P.I.N. JEE0050601 (03) - FUEL SYSTEM
1
15
17
8
5
23
10
12
11
14
30
7
9
18
4
21
14
3
16
19
22
13
20
6

Артикул

Название

Примечание

Количество

1

J915240

SUPPORT

HEAD - fuel filter

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - sealing, 70 mm ID

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - sealing, 14 mm ID

1шт.

5

J903293

JAM NUT

- hex, special, 16 mm - 2.0

1шт.

6

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

- fuel filter, replaces J903845 adapter

1шт.

A77470

SEPARATOR

KIT - fuel filter

1шт.

7

J925274

FILTER, FUEL

FILTER - fuel, primary, replaces J903410 filter, includes: Ref. 7 and 8

1шт.

8

J903640

FILTER, FUEL

FILTER - fuel, secondary

1шт.

9

J912923

FUEL TUBE,8 mm OD x 509.8 mm L

TUBE - fuel supply

1шт.

10

J914711

CLIP

CLAMP - P-type

1шт.

11

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm

2шт.

J905860

BANJO BOLT

BOLT ASSEMBLY - banjo hex, special

1шт.

12

NSS

NOT SOLD SEPARAT

BOLT - connector, banjo hex, special

1шт.

13

NSS

NOT SOLD SEPARAT

SCREW - hex, special, vent

1шт.

14

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER - sealing, special, 14 x 20 x 1 mm

2шт.

15

J907541

BANJO BOLT

BOLT - banjo connector

1шт.

16

J917998

PUMP

- fuel lift and transfer, see Ref. 24 for repair kit

1шт.

17

J914304

GASKET

- mounting, fuel transfer pump

1шт.

18

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 20 mm

2шт.

19

J906790

FUEL TUBE,8 mm OD x 306.3 mm L

TUBE - supply

1шт.

20

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm

2шт.

21

J916361

BANJO BOLT

BOLT - banjo connector, 12 - 1.5 x 24 mm

1шт.

22

J928028

FUEL TUBE,8 mm OD x 228.7 mm L

TUBE - fuel drain, fuel return

1шт.

23

J912886

VALVE

- overflow, see Ref. 6, Fig. 3-13A

1шт.

24

J926764

GASKET KIT

KIT - transfer pump repair, not shown, replaces J920544 kit, includes: Ref. 25 - 32

1шт.

25

NSS

NOT SOLD SEPARAT

VALVE - check, not shown

2шт.

26

NSS

NOT SOLD SEPARAT

GASKET - check valve, not shown

2шт.

27

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown

1шт.

28

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown

3шт.

29

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown

1шт.

30

J914304

GASKET

- mounting, fuel transfer pump

2шт.

31

NSS

NOT SOLD SEPARAT

VALVE - check, not shown

1шт.

32

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

M8 x 1.25", Flg, Cl 8, Not shown

1шт.
