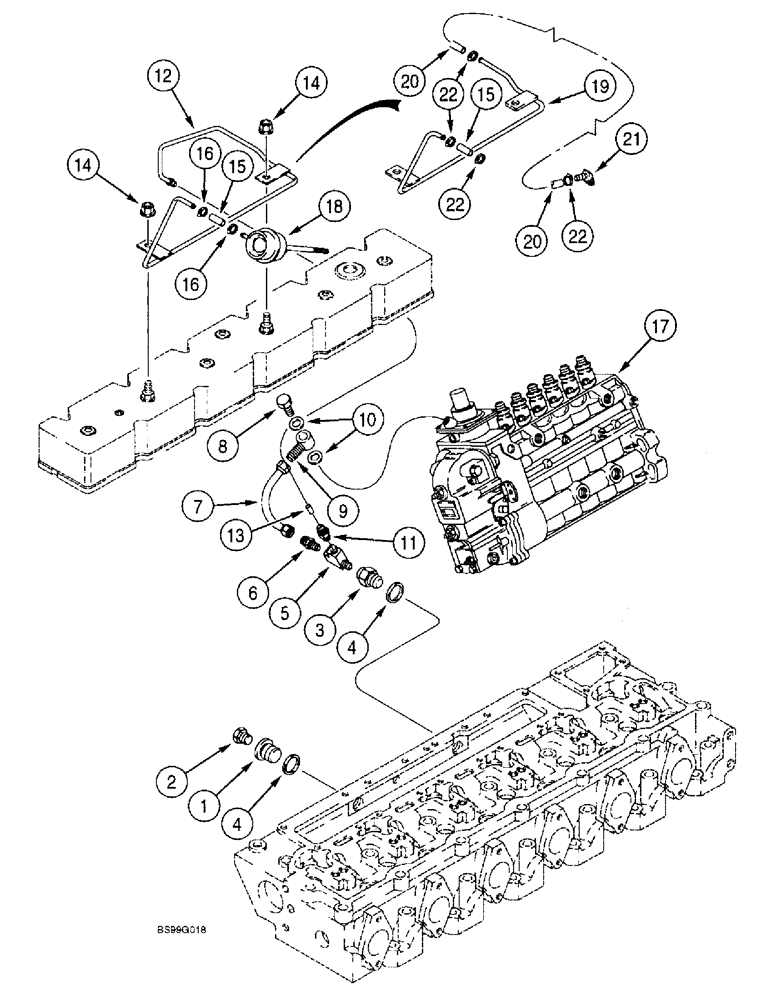

Запчасти Case 821B (3-09C) - ANEROID AND WASTEGATE SYSTEM, 6T-830 EMISSIONS CERTIFIED ENGINE, TRACTOR P.I.N. JEE0050601 & AFTER (03) - FUEL SYSTEM

1

J908110

PLUG

- threaded

1шт.

2

J906619

PLUG,1/8" - 27

INJECTOR ASSEMBLY - fuel, parts list Fig. 3-15A

1шт.

3

J921594

PLUG

- threaded orifice, cylinder, Serial Range: head-tee

1шт.

4

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- sealing, plug

2шт.

5

J930789

TEE

- 1/8-27 str thread x fem str thread x fem str thread, replaces 217-1061 tee

1шт.

6

222-21

FITTING,7/16"-24 x 1/8" NPTF

Compression, Tee to aneroid tube 7/16"-24 x 1/8" NPTF

1шт.

7

J934603

TUBE,6.35 mm OD x 150 mm L

- aneroid, nylon, replaces J926739 tube

1шт.

8

J903035

BANJO BOLT

BOLT - banjo hex, 12 - 1.5 x 24 mm

1шт.

9

J919644

FITTING

CONNECTOR - banjo

1шт.

10

J935171

SEALING WASHER

WASHER - sealing, special, 12 x 19 x 1.5 mm, replaces J919191 washer

2шт.

11

A77796

CONNECTOR, ELEC

ADAPTER - straight, 1/4 barb end x 1/8 inch PT, tee to wastegate tube

1шт.

12

J926968

TUBE,6.35 mm OD

- wastegate, if used

1шт.

13

222-102

SLEEVE,1/4" Tube

1шт.

14

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

M8 x 1.25", Flg, Cl 8, Wastegate tube to valve cover

2шт.

15

J920871

HOSE,1294.00 mm

- 1294 mm (51 inch) long

1шт.

16

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - adj, 1/4 - 5/8 inch dia

2шт.

17

J926878

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, new, parts list Fig. 3-13C

1шт.

17

JR926878

REMAN-INJECTION PUMP

1шт.

17

JC926878

CORE-INJECTION PUMP

Return Number

1шт.

18

J535106

ACTUATOR

- turbo wastegate, see Fig. 2-23C

1шт.

18

J593679R

REMAN-SOLENOID

821B, w/ Emiss. Eng., P.I.N. JEE0050601 & Aft., Reman For New PN J535106

1шт.

18

J593679C

CORE-SOLENOID

Return Number

1шт.

19

J934473

TUBE,6.35 mm OD x 325.5, 133.4 mm L

- wastegate, if used

1шт.

20

J920686

HOSE

- 224 mm (8-3/4 inch) long, if used

1шт.

21

217-281

FITTING,45 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

Elbow, if used 45º, 1/4" Hose x 1/8" NPTF, Barbed

1шт.

22

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable, If used #4, 0.25/0.62 Type M Worm

4шт.
