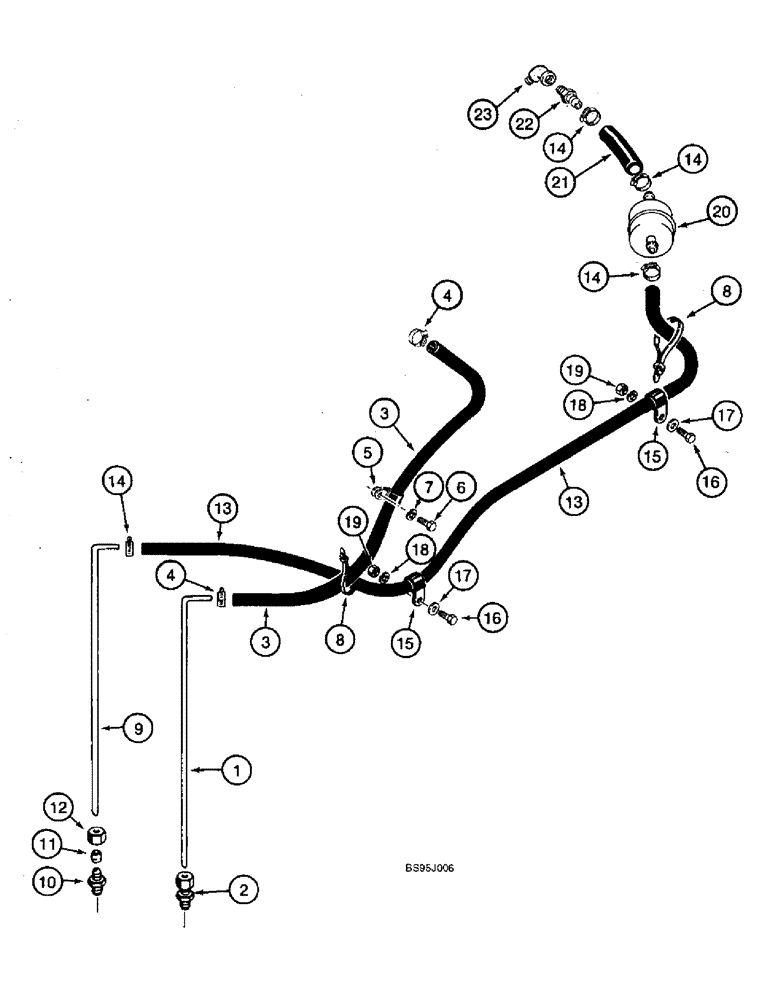

Запчасти Case 821B (3-05C) - FUEL LINES AND IN-LINE FUEL FILTER, P.I.N. JEE0050601 & AFTER (03) - FUEL SYSTEM

1

226083A1

FUEL TUBE,7.94 mm OD

TUBE - fuel, return

1шт.

2

L125532

FITTING

ADAPTER - compression, component parts are not serviced separately

1шт.

3

226616A1

FUEL HOSE

HOSE - 1067 mm (42 inch) long, cut from 31-2855 bulk hose, see below, fuel return, fuel injector, Serial Range: pump-tank

1шт.

4

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable #4, 0.25/0.62 Type M Worm

2шт.

5

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type 1/2", Insul, 3/8" Bolt

1шт.

6

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, class 10.9

1шт.

7

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

8

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

9

L128379

FUEL TUBE,12.7 mm OD x 575, 64 mm L

TUBE - supply

1шт.

222-649

FITTING,5/8"-24 x 1/2" NPT, Comp

ADAPTER - compression, 1/2 inch tube OD x 1/2 inch PT, includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

11

222-656

SLEEVE

- tapered, 1/2 inch tube OD

1шт.

12

222-666

NUT,5/8"-24, 45 Degree Fl, Comp

NUT - hex, 1/2 tube OD x 11/16-20 inch

1шт.

13

226615A1

FUEL HOSE

HOSE - 1422 mm (56 inch) long, cut from 32-80 bulk hose, see below, fuel supply, tank to in-line fuel filter

1шт.

14

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, , Adj. #06, .44/.78 Type F Worm

4шт.

15

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type 3/4", Insul, 3/8" Bolt

2шт.

16

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

2шт.

17

D41740

WASHER

- flat, special, 3/8 inch

2шт.

18

492-11038

LOCK WASHER,3/8"

2шт.

19

425-106

NUT,3/8"-16, Cl 5

2шт.

20

194199A1

FUEL FILTER

FILTER - fuel, in-line

1шт.

21

226084A1

HOSE, BULK

HOSE - 127 mm (5 inch) long, cut from 32-80 bulk hose, fuel supply, in-line filter to fuel lift and transfer pump

1шт.

22

217-152

FITTING,1/2" Hose Barb x 3/8" Male NPTF

Adapter, straight, stem end 1/2" Hose X 3/8" NPTF Beaded

1шт.

23

217-1096

ELBOW,90 Degree, 1/2"-14 Male x 3/8"-18 Female

- street, 90 degree, 1/2 PT x 3/8 inch female PT

1шт.

31-2855

HOSE

- bulk, 8 (5/16) ID x 6096 mm (240 inch) long

1шт.

32-80

HOSE

- bulk, 13 (1/2) ID x 6096 mm (240 inch) long

1шт.
