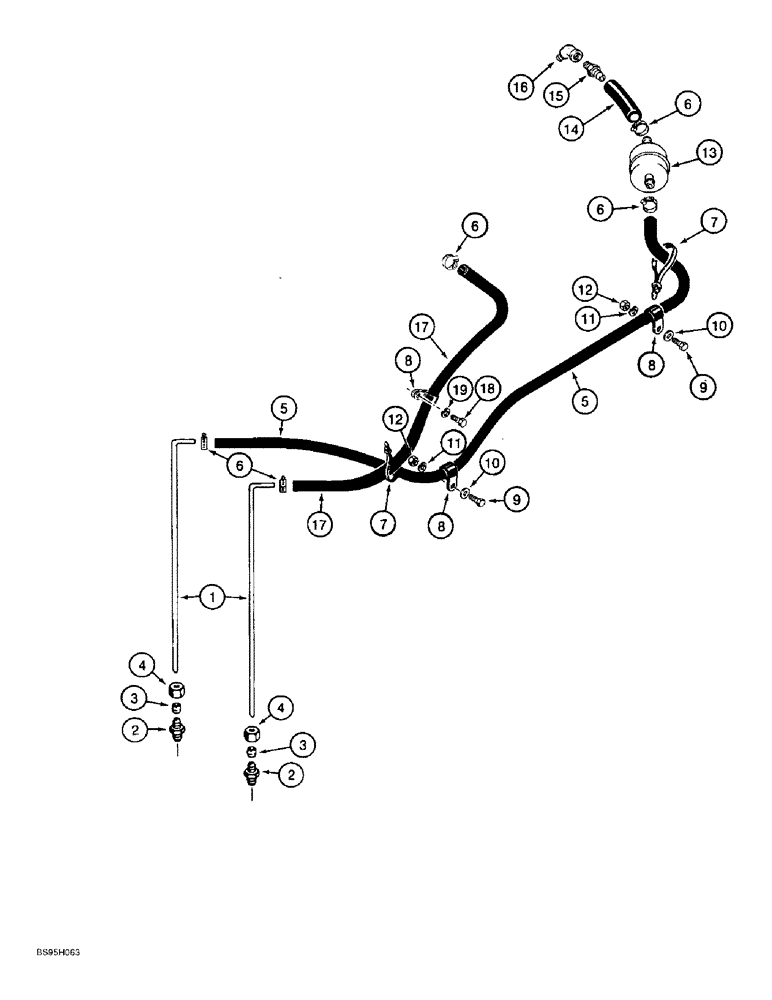

Запчасти Case 821B (3-05A) - FUEL LINES AND IN-LINE FUEL FILTER, P.I.N. JEE0041186 THROUGH JEE0050600 (03) - FUEL SYSTEM

1

L125266

FUEL TUBE,9.53 mm OD x 542, 46 mm L

TUBE - fuel

2шт.

222-638

FITTING,9/16"-24 x 3/8" NPT, Comp

ADAPTER - compression, 3/8 tube OD x 3/8 inch PT

2шт.

2

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

3

222-654

FERRULE,3/8" Tube, Comp

- tapered, 3/8 inch tube OD

1шт.

4

222-664

TUBE NUT,9/16"-24, 45 Degree Fl, Comp

NUT - hex, 3/8 tube OD x 9/16-24 inch

1шт.

5

31-2940

FUEL HOSE

HOSE - 1422 mm (56 inch) long, cut from 32-12X bulk hose, see below, tank to in-line fuel filter

1шт.

6

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable #4, 0.25/0.62 Type M Worm

5шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

8

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type, Clamp on air reservoir bracket uses existing bracket hardware 5/8", Insul, 3/8" Bolt

3шт.

9

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

2шт.

10

D41740

WASHER

- flat, special, 3/8 inch

2шт.

11

492-11038

LOCK WASHER,3/8"

2шт.

12

425-106

NUT,3/8"-16, Cl 5

2шт.

13

D139225

FILTER, FUEL

FILTER - fuel, in-line

1шт.

14

31-2836

FUEL HOSE

HOSE - 127 mm (5 inch) long, cut from 32-12X bulk hose, see below, in-line fuel filter to fuel lift and transfer pump

1шт.

15

220-3

FITTING

ADAPTER - straight, 3/8 barb end x 1/4 inch PT

1шт.

16

217-1015

ELBOW,1/4" - 18 Female x 1/4" - 18 Male

90°, 1/4"-18 Female x 1/4"-18 Male

1шт.

17

31-2308

HOSE,0.38" ID x 48.00"

Order 32-12X, and Cut to Required Length; See Below 0.38" ID x 48.00"

1шт.

18

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, class 10.9

1шт.

19

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

20

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch, Not shown

1шт.

32-12X

LARGE HOSE

HOSE - bulk, 10 (3/8) ID x 6096 mm (240 inch) long

1шт.
