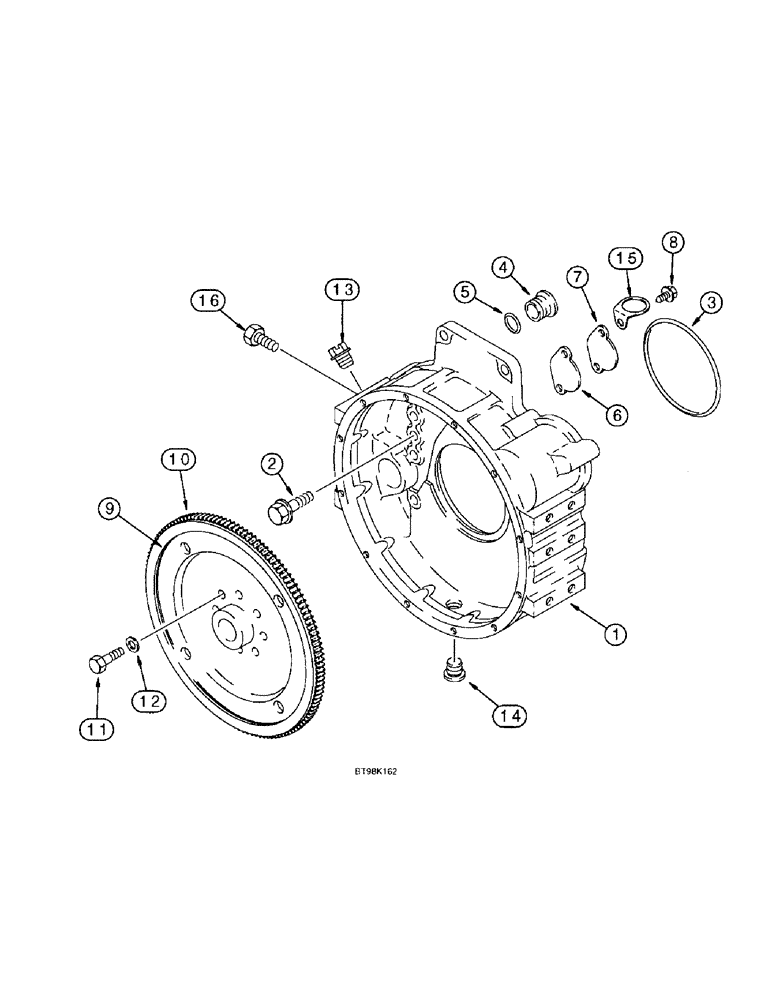

Запчасти Case 821B (2-43A) - FLYWHEEL AND HOUSING, 6T-830 EMISSIONS CERTIFIED ENGINE, TRACTOR P.I.N. JEE0050601 & AFTER (02) - ENGINE

1

J908799

HOUSING

- flywheel

1шт.

2

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 40 mm, class 10.9

12шт.

3

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - flywheel, Serial Range: housing-block

1шт.

4

J910248

PLUG

- flywheel housing

1шт.

5

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

6

J908096

GASKET

- cover plate

1шт.

7

J925234

PLATE

- cover

1шт.

8

J912072

SELF-TAP SCREW

SCREW - self tapping, hex washer head, special, 8 - 1.25 x 15 mm

2шт.

9

J935086

FLYWHEEL

ASSEMBLY - engine, replaces J919547 flywheel assembly, includes: Ref. 10

1шт.

10

J905427

GEAR

- ring, flywheel

1шт.

11

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex, special, 12 - 1.25 x 32 mm

8шт.

12

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

- flat, special, flywheel bolt

8шт.

13

353-225

PLUG,Sltd Hd, 3/4"-16

- slotted hex, 3/4 inch NF

1шт.

14

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC, Sq. Soc, 3/4"-14 NPTF

1шт.

15

J928989

CLIP

- retaining, attaches to Ref. 7 cover plate with existing hardware, replaces J923610 clip

1шт.

16

614-12016

BOLT,Hex, M12 x 1.75 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 16 mm

1шт.
