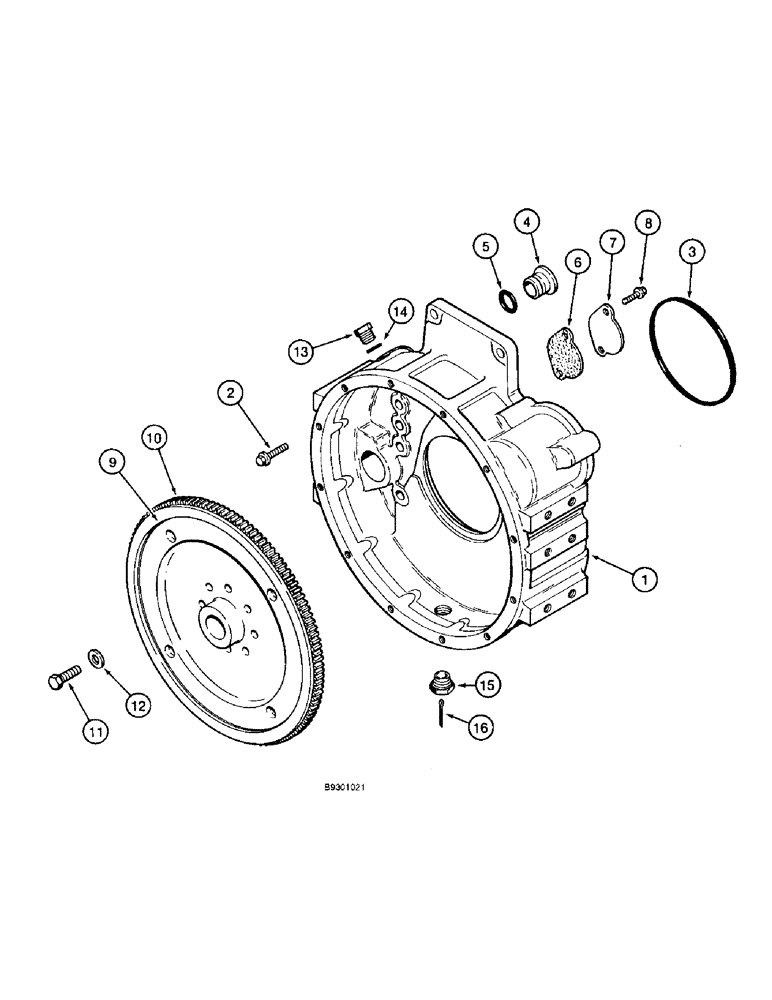

Запчасти Case 821B (2-42) - FLYWHEEL AND HOUSING, 6T-830 ENGINE, PRIOR TO P.I.N. JEE0050601 (02) - ENGINE

1

J908799

HOUSING

- flywheel

1шт.

2

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 40 mm, class 10.9

12шт.

3

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - flywheel, Serial Range: housing-block

1шт.

4

J910248

PLUG

- flywheel housing

1шт.

5

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

6

J908096

GASKET

- cover plate

1шт.

7

J908095

PLATE

- cover

1шт.

8

J902735

BOLT,M8 - 1.25 x 21 mm

- hex flange, self tapping, 8 - 1.25 x 21 mm

2шт.

9

J919547

FLYWHEEL

ASSEMBLY - engine, includes: Ref. 10

1шт.

10

J905427

GEAR

- ring, flywheel

1шт.

11

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex, special, 12 - 1.25 x 32 mm

8шт.

12

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

- flat, special, flywheel bolt

8шт.

13

214389

PLUG,3/4" - 16 ORB

Includes Ref. 14 Hex Hd, 3/4"-16 ORB

1шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

15

L113178

PLUG

BUSHING - reducer, 3/4 inch PT

1шт.

16

32-1416

COTTER PIN,7/32" x 1"

PIN, SPLIT (COTTER), 7/32" x 1"

1шт.
