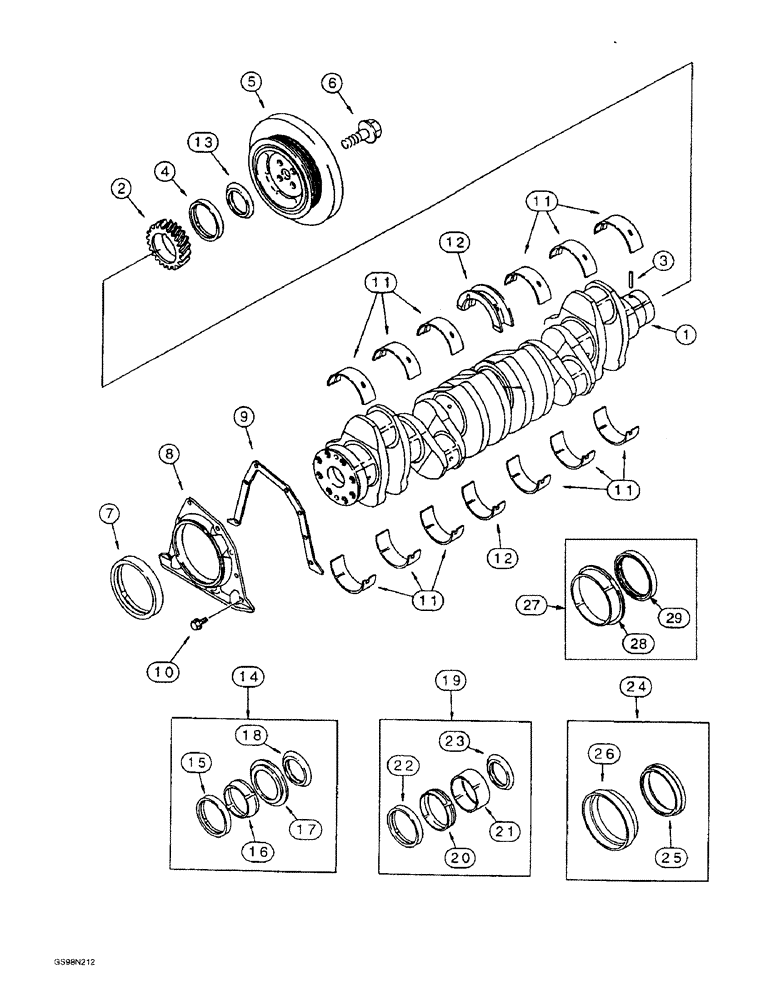

Запчасти Case 821B (2-41A) - CRANKSHAFT, 6T-830 EMISSIONS CERTIFIED ENGINE, TRACTOR P.I.N. JEE0050601 & AFTER (02) - ENGINE

JR918986

REMAN-CRANKSHAFT

CRANKSHAFT ASSEMBLY - engine, remanufactured, component parts shown in this figure do not apply to the remanufactured assembly, replaces JR917443 crankshaft assembly

1шт.

JC918986

CORE-CRANKSHAFT

RETURN NUMBER - use this part number to return crankshaft core for credit when using a remanufactured assembly, replaces JC917443

1шт.

1

J918986

CRANKSHAFT

ASSEMBLY - engine, new, replaces J917443 crankshaft assembly, includes: Ref. 2 and 3

1шт.

2

J918776

GEAR

- crankshaft, replaces J918380 gear

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

- dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - oil, front, order Ref. 14, A77790 kit

1шт.

5

J925568

DAMPER,246mm OD

PULLEY - crankshaft vibration damper

1шт.

6

J906733

BOLT,Hex Flg, M14 x 1.5 x 35mm, Cl 12.9

- hex flange, special, 14 x 35 mm

4шт.

7

NSS

NOT SOLD SEPARAT

SEAL - oil, rear, order Ref. 24, J934486 kit

1шт.

8

J921042

REAR COVER

RETAINER - seal, rear cover

1шт.

9

J914301

GASKET

- rear cover retainer

1шт.

10

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

Rear retainer to cylinder block Hex Flg, M6 x 15, 8.8, Full Thd

8шт.

11

A77711

BEARING LINER

BEARING - main, upper and lower set, standard

6шт.

11

A77712

BEARING LINER

BEARING - main, upper and lower set, 0.25 mm undersize

6шт.

11

A77713

BEARING LINER

BEARING - main, upper and lower set, 0.50 mm undersize

6шт.

11

A77714

BEARING LINER

BEARING - main, upper and lower set, 0.75 mm undersize

6шт.

11

A77715

BEARING LINER

BEARING - main, upper and lower set, 1.0 mm undersize

6шт.

12

A77843

BEARING LINER

BEARING - main thrust, upper and lower set, standard

1шт.

12

A77844

BEARING LINER

BEARING - main thrust, upper and lower set, 0.25 mm undersize

1шт.

12

A77845

BEARING LINER

BEARING - main thrust, upper and lower set, 0.50 mm undersize

1шт.

12

A77846

BEARING LINER

BEARING - main thrust, upper and lower set, 0.75 mm undersize

1шт.

12

A77847

BEARING LINER

BEARING - main thrust, upper and lower set, 1.0 mm undersize

1шт.

12

A77848

CRANKSHAFT BEARING

BEARING - main thrust, upper and lower set, standard journal diameter, 0.25 mm oversize thrust width

1шт.

12

A77849

CRANKSHAFT BEARING

BEARING - main thrust, upper and lower set, standard journal diameter, 0.50 mm oversize thrust width

1шт.

12

A77850

CRANKSHAFT BEARING

BEARING - main thrust, upper and lower set, 0.50 mm undersize journal diameter, 0.50 mm oversize thrust width

1шт.

13

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

- dust, front seal

1шт.

14

A77790

SEAL KIT

KIT - oil seal, crankshaft front, includes: Ref. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

16

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

17

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

18

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

- dust, front seal

1шт.

19

A77808

SERVICE KIT

KIT - wear sleeve, crankshaft front, includes: Ref. 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

21

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

23

J924987

SHIELD,77.14mm ID x 89.38mm OD x 6.35mm Thk

- dust

1шт.

24

J934486

SERVICE KIT

KIT - oil seal, crankshaft rear, replaces A77809 and J353978 kit, includes: Ref. 25 and 26

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL - oil, rear

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

27

A77810

SERVICE KIT

KIT - oil seal, crankshaft rear, includes wear sleeve

1шт.

28

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

29

NSS

NOT SOLD SEPARAT

SEAL - oil, rear

1шт.
