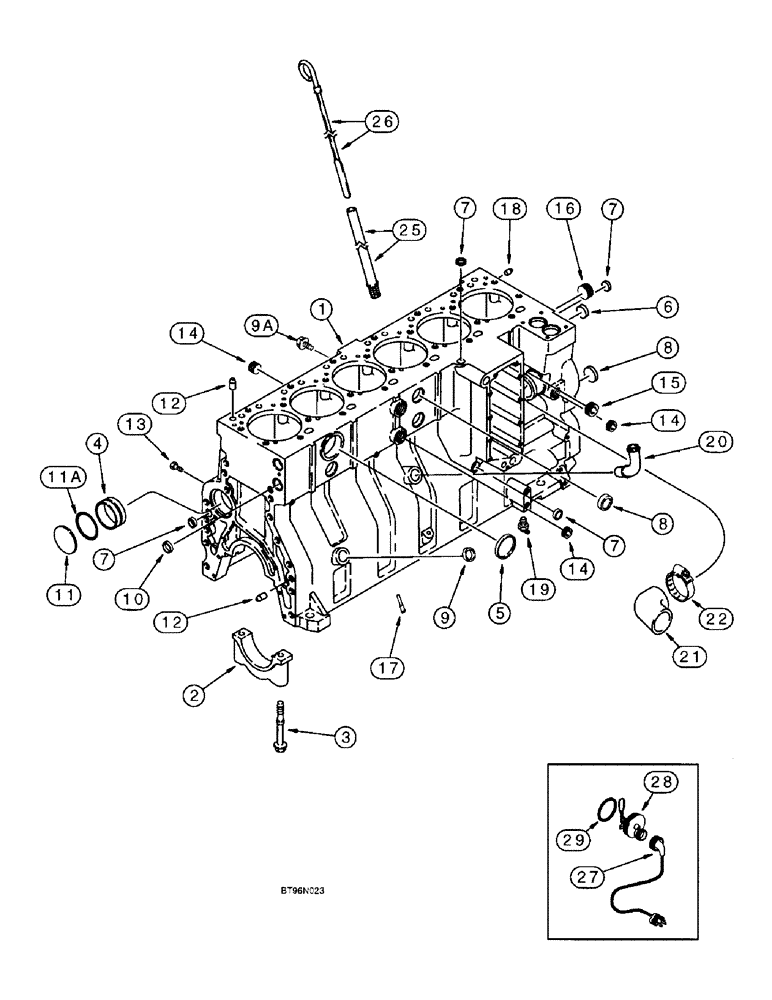

Запчасти Case 821B (2-39A) - CYLINDER BLOCK, 6T-830 EMISSIONS CERTIFIED ENGINE, TRACTOR P.I.N. JEE0050601 AND AFTER (02) - ENGINE

1989194C1

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSEMBLY - 6T-830 Emissions Certified, complete, for service order 199985A1 basic engine below

1шт.

The engine part number is stamped on a metal tag which is mounted on the front gear cover.

1шт.

199985A1

BASIC ENGINE

ENGINE ASSEMBLY - basic, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front pulley, belt tensioner

1шт.

199985A1R

REMAN-BASIC ENGINE

Engine Assembly - Remanufactured, component parts shown in this figure do not apply to the Remanufactured Assembly; See Note

1шт.

199985A1C

CORE-BASIC ENGINE

Return Part Number, use this part number to return engine core for credit when using a remanufactured assembly

1шт.

JR931187

BLOCK

BLOCK ASSEMBLY - short, remanufactured, North America only, component parts shown in this figure do not apply to the remanufactured assembly, no longer available, order JR934600 block assembly

1шт.

JC931187

CORE-ENGINE

RETURN NUMBER - use this part number to return block core for credit when using a remanufactured assembly

1шт.

JR934600

ENGINE, EXCHANGE

ENGINE (EXCHANGE) BLOCK ASSEMBLY - short, remanufactured, North America only, component parts shown in this figure do not apply to the remanufactured assembly

1шт.

6-830-SHBC

CORE

RETURN NUMBER - use this part number to return short block for credit when using a remanufactured assembly

1шт.

J934600

SKELETON ENGINE

BLOCK ASSEMBLY - short, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, replaces J931187 block assembly

1шт.

1

J934900

SHORT ENGINE

BLOCK ASSEMBLY - stripped, includes: Ref. 2 - 15

1шт.

2

J917313

BEARING CAP

CAP - bearing, main

7шт.

3

J916369

FLANGE BOLT,Hex, M14 x 2 x 128mm, Cl 10.9

SCREW, , Bearing cap to block Hex Flg Hd, M14 x 128

14шт.

4

J945329

CAMSHAFT BEARING,60.08mm ID x 64.13mm OD x 25mm L

BUSHING - camshaft, see Fig. 2-34, Ref. 6, replaces J901685 and J943199 bushing

7шт.

5

A77782

PLUG

PLUG - expansion, 58 mm OD

1шт.

6

A77586

PLUG

PLUG - expansion, 28.9 mm OD

1шт.

7

A77506

PLUG

PLUG - expansion, 21 mm O.D.

4шт.

8

J905401

PLUG

PLUG - expansion, 35 mm OD

4шт.

9

J920706

PLUG

PLUG - expansion, 22 mm OD

1шт.

10

A77530

PLUG

PLUG - expansion, 30 mm OD, not used in this application

2шт.

11

41-3044

PLUG,Exp, 2 3/4"

PLUG, (70 mm) Exp, 2 3/4"

1шт.

11a

J926048

O-RING,0.07" Thk x 2.614" ID, -38, Cl 5, 75 Duro

O-RING - sealing, 66 mm ID

1шт.

12

J901846

PIN,12.01mm OD x 24mm L

PIN - dowel

4шт.

13

J906619

PLUG,1/8" - 27

PLUG - hex, 1/8 inch PT

6шт.

14

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

4шт.

15

A77505

PLUG

PLUG - hex socket, 3/4 inch PT

2шт.

J934600

SKELETON ENGINE

BLOCK ASSEMBLY - short, new, continued, replaces J931187 block assembly, includes: Ref. 16 - 20

1шт.

16

A77533

PLUG

PLUG - hex socket, 1 inch PT

1шт.

17

J928031

NOZZLE,8.5mm OD x 30mm L

NOZZLE - piston cooling

12шт.

18

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, 16 mm long

2шт.

19

217-103

COCK, DRAIN

VALVE - 1/4 inch PT, coolant

1шт.

20

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain, not used in this application

1шт.

21

J920762

ELBOW

HOSE - 79 mm (3-1/8 inch), water

1шт.

22

J918521

HOSE CLAMP,59mm - 83mm

1-13/16 - 2-3/4

1шт.

25

J905779

TUBE,9.52 mm OD x 228 mm L

TUBE - dipstick

1шт.

26

J908773

DIPSTICK,485.3mm L

DIPSTICK - oil gauge

1шт.

196804A1

KIT

KIT - engine block heater, includes: Ref. 27 - 29

1шт.

27

196466A1

ELECTRIC CABLE

CABLE - engine block heater

1шт.

28

NSS

NOT SOLD SEPARAT

ELEMENT - heater, 120 volt engine block

1шт.

29

J910517

O-RING

O-RING - heater sealing engine block

1шт.

30

A77885

PACKAGE, REPAIR

KIT - engine overhaul, prior to engine serial number 45636465 block, includes Ref. 31 - 47

1шт.

31

A77854

PACKAGE, REPAIR

KIT - piston and sleeve, engine, see Fig. 2-45A overhaul

6шт.

32

A77563

BEARING SET

KIT - bearing, upper and lower, standard, see Fig. 2-45A engine overhaul

6шт.

33

J901597

PIN

PIN - piston, see Fig. 2-45A engine overhaul kits

6шт.

34

A77711

BEARING LINER

BEARING - main, upper and lower set, standard, see Fig. 2-41A engine overhaul kits

6шт.

35

A77843

BEARING LINER

BEARING - main thrust, upper and lower set, standard, see Fig. 2-41A engine overhaul kits

1шт.

36

A77872

GASKET KIT

KIT - gasket, valve grind engine overhaul

1шт.

37

J935585

GASKET

GASKET - cylinder head, standard, see Fig. 2-29A or 2-33C engine overhaul kits

1шт.

38

A77679

GASKET KIT

KIT - gasket, oil pan, see Fig. 2-27A engine overhaul

1шт.

39

A77913

PACKAGE, REPAIR

KIT - engine overhaul, engine serial number 45636466 and after

1шт.

40

A77912

PACKAGE, REPAIR

KIT - piston and sleeve, engine, see Fig. 2-45A overhaul

6шт.

41

A77563

BEARING SET

KIT - bearing, upper and lower, standard, see Fig. 2-45A engine overhaul

6шт.

42

J901597

PIN

PIN - piston, see page 2-45B engine overhaul kits

6шт.

43

A77711

BEARING LINER

BEARING - main, upper and lower set, standard, see Fig. 2-41A engine overhaul kits

6шт.

44

A77843

BEARING LINER

BEARING - main thrust, upper and lower set, standard, see Fig. 2-41A engine overhaul kits

1шт.

45

A77872

GASKET KIT

KIT - gasket, valve grind engine overhaul

1шт.

46

J935585

GASKET

GASKET - cylinder head, standard, see Fig. 2-29A or 2-33C engine overhaul kits

1шт.

47

A77679

GASKET KIT

KIT - gasket, oil pan, see Fig. 2-27A engine overhaul

1шт.
