(2-35A) - CAMSHAFT, 6T-830 EMISSIONS CERTIFIED ENGINE, TRACTOR P.I.N. JEE0050601 & AFTER

Запчасти Case 821B (2-35A) - CAMSHAFT, 6T-830 EMISSIONS CERTIFIED ENGINE, TRACTOR P.I.N. JEE0050601 & AFTER (02) - ENGINE

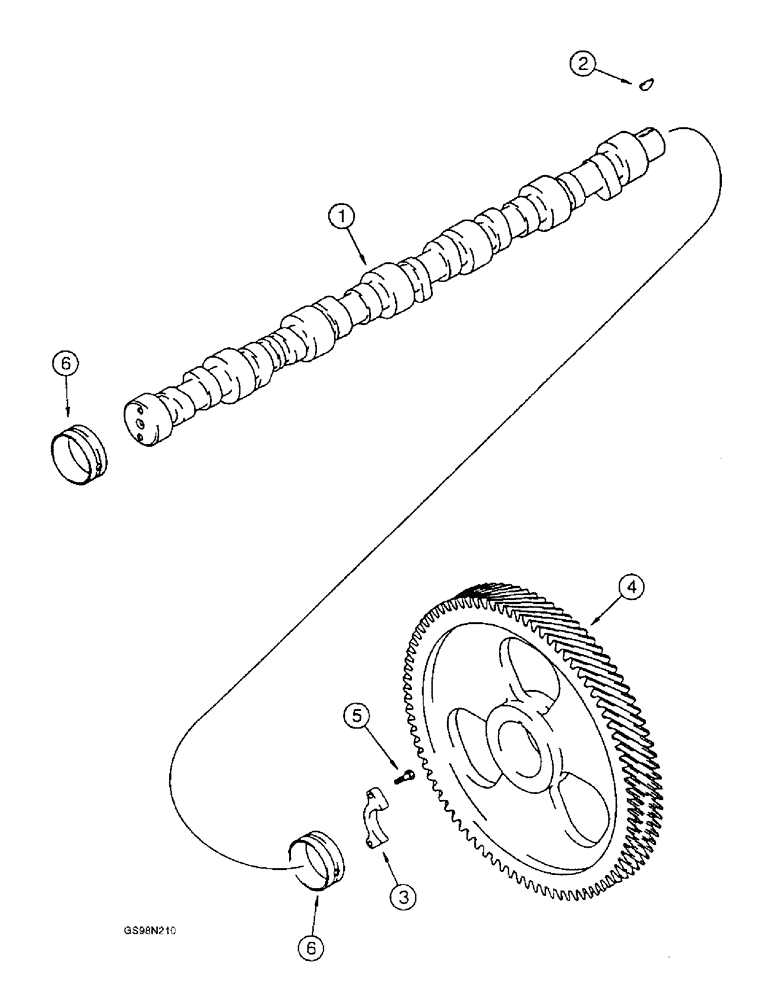

Схема запчастей Case 821B - (2-35A) - CAMSHAFT, 6T-830 EMISSIONS CERTIFIED ENGINE, TRACTOR P.I.N. JEE0050601 & AFTER (02) - ENGINE
3
1
2
4
5
6
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J924471

CAMSHAFT

- engine

1шт.

2

836-4065

WOODRUFF KEY,M4 x 6.5 x 15.72

Replaces 126-112 M4 x 6.5 x 15.72

1шт.

3

J927155

SUPPORT

- thrust, camshaft

1шт.

4

J918777

GEAR

- camshaft, replaces J917328 gear

1шт.

5

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

6

J945329

CAMSHAFT BEARING,60.08mm ID x 64.13mm OD x 25mm L

BUSHING - camshaft, replaces J901685 and J943199 bushing

7шт.
