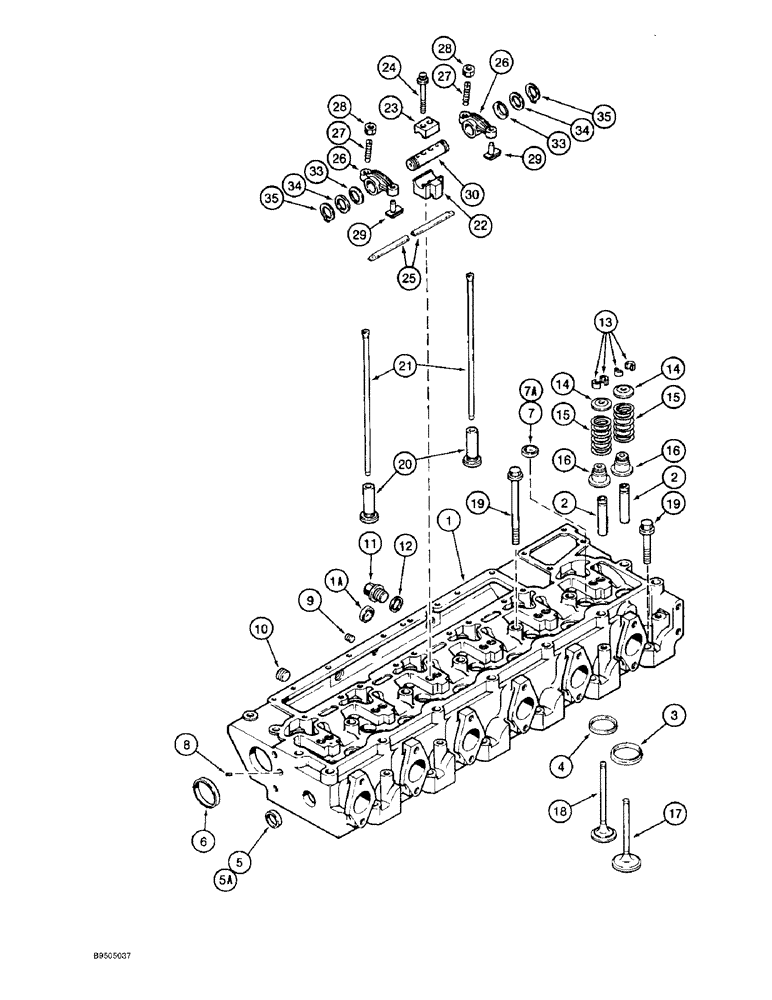

Запчасти Case 821B (2-32) - CYLINDER HEAD AND VALVE MECHANISM, 6T-830 ENGINE, PRIOR TO P.I.N. JEE0050601 (02) - ENGINE

JR925644

REMAN-CYLINDER HEAD

HEAD ASSEMBLY - cylinder, remanufactured, North America only, comonent parts shown in this figure do not apply to the remanufactured assembly, replaces JR913111 head assembly, includes: Ref. 1 - 19

1шт.

JC913111

HEAD (CYLINDER)

RETURN NUMBER - use this part number to return cylinder head core for credit when using a remanufactured assembly, includes: Ref. 1 - 19

1шт.

J925644

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new with valves, replaces J917768 head assembly, includes: Ref. 1 - 19

1шт.

1

J920026

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new, with valves, replaces J917768 head assembly, includes Ref. 1A - 7A

1шт.

1a

J912900

PLUG

- expansion, 24 mm

1шт.

2

J923564

VALVE GUIDE

GUIDE - valve stem, replaces J901187 guide

12шт.

3

J924582

INSERT

- seat, intake valve, replaces J908830 insert

6шт.

3

J925468

SEAT, VALVE

INSERT - seat, intake valve, 0.254 mm, oversize, replaces J914839 insert, service repair only

6шт.

The oversize valve insert is not part of the head assembly and must be ordered separately.

1шт.

3

J925470

SEAT, VALVE

INSERT - seat, intake valve, 0.508 mm, oversize, service repair only

6шт.

The oversize valve insert is not part of the head assembly and must be ordered separately.

1шт.

4

J929005

INSERT

- seat, exhaust valve, replaces J904716 and J924583 insert

6шт.

4

J929006

INSERT

- seat, exhaust valve, 0.254 oversize, replaces J914836 and J925469 insert, service repair only

6шт.

The oversize valve insert is not part of the head assembly and must be ordered separately.

1шт.

4

J929007

INSERT

- seat, exhaust valve, 0.508 mm, oversize, service repair only

6шт.

The oversize valve insert is not part of the head assembly and must be ordered separately.

1шт.

5

A77530

PLUG

- expansion, 30 mm OD, used with J917768 head assembly

1шт.

5a

J920443

PLUG

- expansion, 30 mm OD

1шт.

6

A77782

PLUG

- expansion, 58 mm OD

2шт.

7

A77590

PLUG

- expansion, 28.7 mm, used with J917768 head assembly

5шт.

7a

41-1616

PLUG,Cup, 1", Stainless

5шт.

8

A77534

PLUG

- hex, 1/16 inch PT

1шт.

9

A77428

PLUG

- hex socket, 1/4 inch PT

1шт.

10

A77429

PLUG

- hex socket, 1/2 inch PT

2шт.

11

J924148

PLUG,M22 x 1.5

- hex magnetic, special, 22 mm - 1.5, replaces J904386 plug

2шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- sealing, plug

2шт.

13

J901177

VALVE

KEEPER - valve

24шт.

14

J912976

RETAINER

- valve spring

12шт.

15

J906412

VALVE SPRING

SPRING, VALVE

12шт.

16

J915707

SEAL

- intake and exhaust valve stem and guide

12шт.

17

J924492

STD INLET VALVE

VALVE - intake, replaces J915506 valve

6шт.

18

J921444

STD EXHAUST VALVE

VALVE - exhaust

6шт.

19

J917728

BOLT

- cylinder head, 160 mm long

14шт.

19

J917729

BOLT,Flng, M14 x 80mm

BOLT - cylinder head, 80 mm long

12шт.

20

J925031

TAPPET

- valve, push rod, replaces J907240 tappet

12шт.

21

J905194

PUSH ROD

ROD - push, rocker arm

12шт.

22

J905870

SUPPORT

- shaft, rocker arm

6шт.

23

J901693

CLAMP

- retaining, shaft

6шт.

24

868-10065

12 PT SCREW,M10 x 65mm, Cl 12.9

SCREW - 12 point flange, M10 x 65; Class 12.9

12шт.

25

J919677

TUBE

- oil, rocker arm

1шт.

26

J901717

ROCKER

ARM ASSEMBLY - rocker

12шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set, adjusting, special

1шт.

28

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1шт.

29

NSS

NOT SOLD SEPARAT

INSERT - rocker

1шт.

30

J919435

SHAFT

- rocker

6шт.

33

J906100

SPRING CUP

WASHER - spring

12шт.

34

J907206

WASHER,22.5mm ID x 30mm OD x 1mm Thk

- flat, special

12шт.

35

100-1187

SNAP RING,#87, Ext

Ring, Snap, #87, Ext

12шт.
