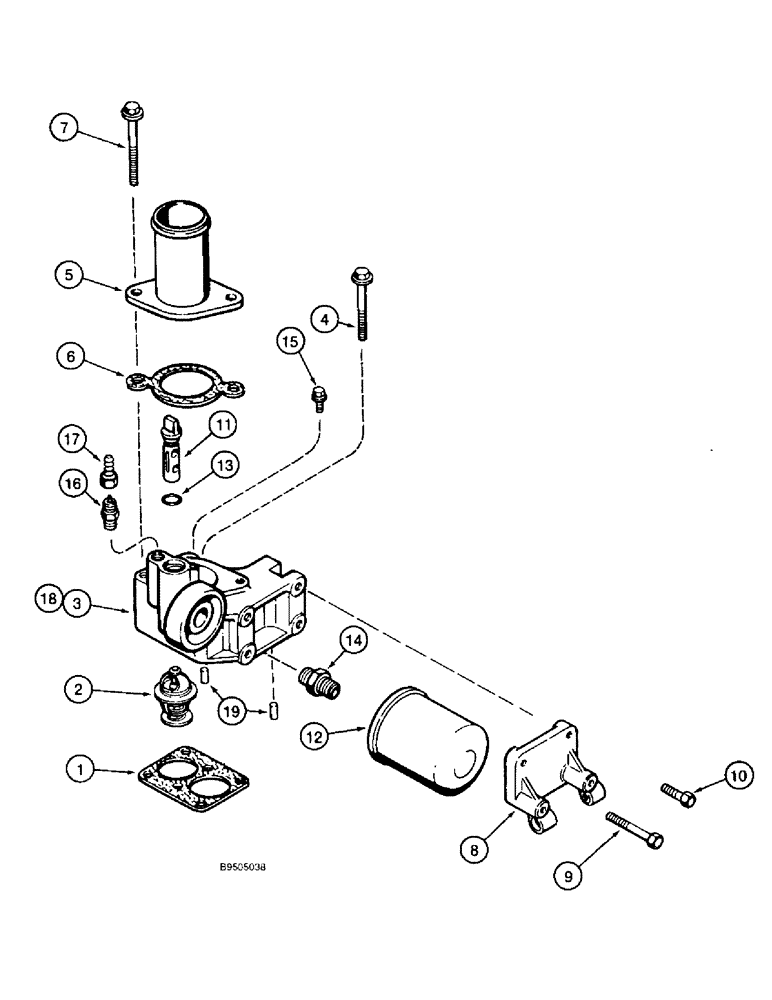

Запчасти Case 821B (2-30) - THERMOSTAT HOUSING, 6T-830 ENGINE, PRIOR TO P.I.N. JEE0050601 (02) - ENGINE

1

J914310

GASKET,0.8mm Thk

- thermostat housing

1шт.

2

J928639

THERMOSTAT

- engine coolant, replaces J907242 thermostat

2шт.

3

J924586

HOUSING

- thermostat, no longer available, order J926509 thermostat housing below

1шт.

4

845-8080

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 80 mm

2шт.

5

J912800

CONNECTION

TUBE - water outlet

1шт.

6

J918779

GASKET,1.19mm Thk

- outlet tube, water

1шт.

7

845-8095

BOLT,Hvy Hex, M8 x 95mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 95 mm

2шт.

8

J918544

SUPPORT

- mounting, alternator, replaces J923263 support

1шт.

9

814-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 8.8

- hex, 8 - 1.25 x 65 mm

2шт.

10

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm

2шт.

11

J912837

COCK

VALVE - shutoff

1шт.

12

A77544

FILTER

- water conditioning, precharge

1шт.

13

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

1шт.

14

A77623

ADAPTER,3/4" - 10 x 11/16" - 16

- water filter

1шт.

15

845-6010

BOLT,Hvy Hex, M6 x 10mm, Cl 8.8

1шт.

16

J911901

VALVE, CHECK

VALVE - check

1шт.

17

J911925

COUPLING

- hose

1шт.

J926509

HOUSING,Thermostat

- thermostat, includes: Ref. 18 and 19

1шт.

18

NSS

NOT SOLD SEPARAT

HOUSING - thermostat

1шт.

19

180811A1

ROLL PIN

PIN - roll, special

2шт.
