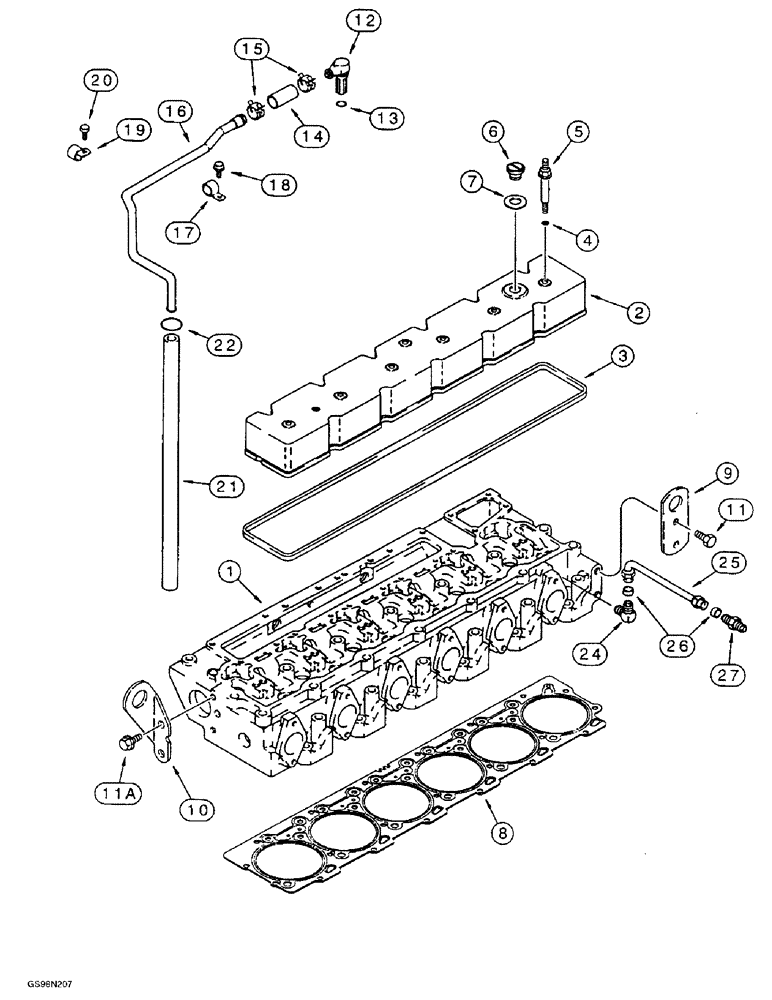

Запчасти Case 821B (2-29A) - CYLINDER HEAD COVER, 6T-830 EMISSIONS CERTIFIED ENGINE, TRACTOR P.I.N. JEE0050601 & AFTER (02) - ENGINE

1

REF

INSTRUCTION

HEAD - cylinder, see Fig. 2-32 for correct assembly and component parts

1шт.

2

J930903

VALVE COVER

COVER - valve, replaces J927907 cover

1шт.

3

J905449

SEAL,7.179mm W x 2090mm L

SEAL - valve cover

1шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt

6шт.

5

J922639

STUD

- wastegate actuator mounting

6шт.

6

J902468

FILLER CAP,Male

CAP - oil filler

1шт.

7

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

RING - cap sealing

1шт.

8

J935585

GASKET

- cylinder head, standard, replaces J928168 and J931019 gasket

1шт.

8

J935586

CYLINDER HEAD GASKET,1.91mm Thk

GASKET - cylinder head, 0.25 mm thicker, replaces J928180 and J931026 gasket

1шт.

8

J935587

CYLINDER HEAD GASKET,2.38mm Thk

GASKET - cylinder head, 0.50 mm thicker, replaces J928181 and J931027 gasket

1шт.

9

J907861

LIFTING EYE

BRACKET - lifting, front

1шт.

10

J906440

LIFTING EYE

BRACKET - lifting, rear

1шт.

11

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, Front lifting bracket to cylinder head

2шт.

11a

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9, rear lifting bracket to cylinder head

2шт.

12

J920497

ELBOW

CONNECTOR - 90 degree, breather vent, no longer available, order Ref. 13A, J935113 and Ref. 13B, J934865

1шт.

13

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

Used with Ref. 12, J920497 only -115, 70 Duro, .674" ID x .103" Thk

1шт.

13a

J935113

ELBOW

CONNECTOR - 90 degree, breather vent, not shown

1шт.

13b

J934865

SEAL

O-RING - 17.4 ID x 4.3 mm wide, not shown

1шт.

14

J930827

HOSE,51.00 mm

. , To Connector, Replaces J918610 51.00 mm

1шт.

15

J934496

CLIP

CLAMP - spring type, replaces J918163 clamp

2шт.

16

J909669

TUBE,15.9-19 mm OD x 642.7 mm L

- breather

1шт.

17

J907741

CLAMP,15.88mm ID, 9.52mm Bolt Hole, P Type

P-style, Tube retaining M15.88, M9.52 Bolt Hole

1шт.

18

J912072

SELF-TAP SCREW

SCREW - self tapping, hex washer head, special, 8 - 1.25 x 15 mm

1шт.

19

A77538

CLIP

CLAMP - P-style, tube retaining

1шт.

20

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

1шт.

21

J918616

TUBE,680.00 mm

Breather, Attaches to J928989 Clip on Fig. 2-43A 680.00 mm

1шт.

22

214-1318

HOSE CLAMP,#18, 1 1/8", Spring

CLAMP, HOSE, #18, 1 1/8", Spring

1шт.

24

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

- 90 degree, compression, 1/4 tube OD x 1/8 inch PT

1шт.

25

J924589

TUBE,6.35 mm OD x 112.6 mm L

- vent, air, air, includes: Ref. 26

1шт.

26

222-153

SLEEVE,1/4" Tube

2шт.

27

222-22

FITTING,1/2"-24 x 1/8" NPTF w/Nut

ADAPTER - compression, 1/4 tube OD x 1/8 inch PT, tube to thermostat housing

1шт.
